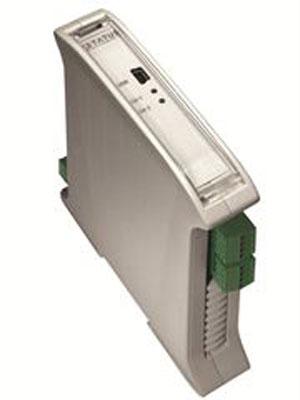

SEM1750 Dual Channel Signal Process Isolator / Convertor / Splitter

16 April 2013 | Status Instruments

Status Instruments new SEM1750 − do the maths

Status Instruments has launched one of the most advanced but user friendly Dual Channel Signal Conditioners of its type on the market.

The SEM1750 accepts current and voltage process signals and offers 3.75kv isolation between all ports to provide ranged industrial process output signals such as (0 to 20) mA, (4 to 20) mA, (0 to 10) V, (1 to 5) V DC. In fact, any signal  input or output can be programmed within the input / output range limits. Each input and output will accept a passive current loop but also has a built in transmitter power supply.

Users configure the conditioner via Status’ easy to use configuration software, USB Speed Link. The software offers the user two levels of configuration, a basic current/voltage signal converter where the device can be set as dual channel signal isolator/ convertor or signal splitter.

For more advanced applications, an advanced configuration menu offering a wide range of maths function as well as user set functions, including process scaling and profiling, signal damping, sensor linearisation and signal pre-set for diagnostic purposes is available.
