16 March 2015 | Omni Sensors & Transmitters Ltd

Infrared gas detector modules

The new smartCONNECT2 electronic offers a simple solution for connecting smartMODUL sensors in various applications using standardized interfaces. Thanks to the 4-20mA, 0-10V or the RS485 Modbus interfaces of the smartCONNECT2 all smartGAS sensors can be directly connected to a variety of process control and analyzing systems.

The integrated pressure compensation provides a better precision in measurement and the on-board LED indicate the sensor status for easy handling. In addition the new push-button calibration helps to saves costs in maintenance. Despite all modifications the smartCONNECT2 is still compatible with the established interfaces of the known
smartCONNECT. This allows for implementing the improvements into existing systems without the need for redesign.

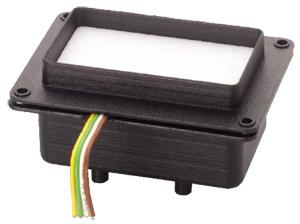

All Basic sensor modules can be fitted in the new “ModulBox” allowing simple OEM solutions.

• Single power supply 12 − 24V DC
• Operating status with 3 LED
• Analogue interface:
0 (4) − 20 mA NAMUR NE43
0-2V, 0-5V, 0-10V
• Digital interface: RS485
• Easy to calibrate with push button
• External connecting of push button and LED
• Atmospheric pressure compensation
• Compatible to CONNECT
