New SL400 Hydraulic Gantry

15 January 2016 | Shaw Hydraulics Ltd

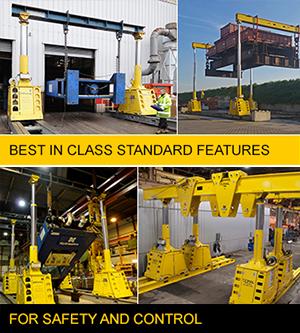

Introducing the New SL400 Hydraulic Gantry

The SL400 hydraulic gantry is a safe and efficient solution for lifting and positioning heavy loads. With a lifting capacity of 4000 kN (450 short tons) and a maximum lift height of 9.140 mm (30 ft) the SL 400 is a cost effective alternative to a traditional crane for numerous applications.

Each tower is equipped with a three-stage telescopic cylinder. All Enerpac gantries comply to ASMEB30.1-2015 safety standard and are witness tested by an independent third party.

Best in Class Standard Features
1) Self-contained hydraulics in each gantry leg and an integrated self-propelled drive system
2) Same track width as SBL-Series Gantries
3) Powered side shift
4) 3 stage telescopic cylinders, 9.140 mm range
5) Intellilift wireless control system

Quality and Safety
• Designed and tested to meet ASME B30.1-2015 safety standards
• Each gantry is tested to 120% of capacity at full extension and witness tested by Lloyds
• CE compliant design

Innovation
• Self contained hydraulics: enables an easier setup and eliminates trip hazards associated with hydraulic hoses
• Wireless control unit: easy synchronized control and monitoring of lifting and travel operations while providing optimum visibility of the load
• Self propelled wheels: provides synchronized travel in a smooth continuous manner

Stability
• Same track width as SBL-Series Gantries

Intellilift
• Can be operated locally at each leg or using the Intellilift remote control
• Remote can be operated using multi-channel wireless control (2.4 GHz) or wired (RS-485)
• 2-Speed settings
• Automatic synchronization of lifting with accuracy of 25.4 mm (1 inch)
• Automatic synchronization of travel with accuracy of 15 mm (0.60 inch)
• Remote side shift control

Optional Accessories
 Skid Tracks
 Header Beams
 Powered Side Shift
 Lifting Lugs
 Tarpaulin Cover
