Euroteck Systems add high energy flat panel detector to their NDT product portfolio.

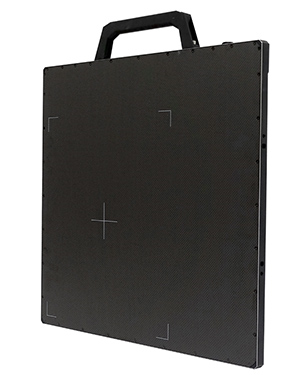

Euroteck Systems would like to introduce the new Dürr NDT DRC 2430HE NDT flat panel detector; it expands our range of DDA’s for applications with very high energies.

The internal shielding is designed for energies up to 350 kV, for energies over 350 kV we recommend the optional external shielding (when using gamma sources, even higher energies are possible).

Compared to the existing DRC 2430 NDT, the outer dimensions are larger; the pixel pitch of 76 µm and the active area of 233 mm x 291 mm are the same.

For wireless operation, the optional Portable Wireless Unit (PWU) with WLAN and battery is available. The PWU can also be attached on the back of the panel.

The DRC 2430HE NDT is fully integrated to work with D-Tect and D-Tect X software.

Please contact Euroteck Systems to arrange a demo of the DRC 2430HE NDT or to discuss your requirement with us either at sales@euroteck.co.uk or on 01827 312455.
