Flexible, ergonomic and compact − the joystick grip for the J2 joystick

The new 321G joystick grip from elobau offers manufacturers of mobile machinery impressive functionality in a very small space.

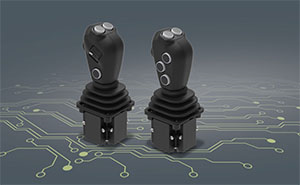

With its 321G, the Leutkirch based company elobau, a global manufacturer of contactless sensor technology, level measurement and operator controls for machine engineering and plant construction as well as mobile machinery, is introducing a multifunctional joystick grip that allows operators of mobile machinery to carry out their work more efficiently and comfortably. The joystick grip is suitable e.g. for the precise and safe operation of front loader and hydraulic functions. It provides manufacturers of agricultural, construction and special machines with a flexible and compact solution for the tried and tested J2 joystick base.

The 321G can be equipped with up to six push buttons or, up to four push buttons and a thumbwheel. The joystick grip, therefore, allows the operator to centrally control more functions on the machine than is usually possible. This saves the operator from continually alternating between the joystick and other operating elements or the control panel. The ergonomic layout of the components means that the operator can access the functions with ease, and ensures fatigue free operation. Furthermore, thanks to back printed plastic inlays, the abrasion resistant symbols help the user to work efficiently and safely well into the future.

All operator controls integrated in the grip can be freely configured and therefore provide the machine manufacturer with a high degree of flexibility. Blind covers are available for unused functions. The push button technology used can be based on either contactless Hall or Reed switches, and the thumbwheel is available with either detent or no detent actuation. In addition to night illumination, elobau can equip the 321G with optional function illumination for individual control elements. As far as communication is concerned, the output signals are transmitted either analogue or using the CAN bus protocol (J1939/CANopen).

Measuring 43 x 90 x 55 mm, the joystick grip offers a high level of functionality in an extremely compact design compared to other products available on the market. The armrests of vehicles usually have very limited space for the functions. In such cases, the 321G with its up to six push buttons can provide a useful extension for the functions. Thanks to its responsive operation, it is particularly suited to applications such as front loader control where precise control is often required. For the float position of the hydraulics, the joystick has detent points at both the forward and right end positions in order to hold the 321G at the respective position. The joystick grip conforms to EU 167/2013 (Mother Regulation) and has protection class IP5K4.

The J2 compact joystick from elobau has already long been used successfully e.g. for controlling front loader functions on tractors. It is mounted to the armrest from underneath, is highly reliable, has a long service life and is available with various actuation types, e.g. no detent or detent actuation.
