Compact Swivel Joints

10 June 2022 | Rotaflow FV Ltd

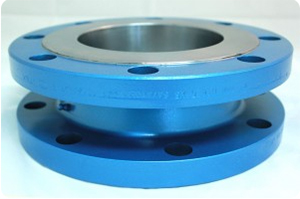

Compact Swivel Joints

The Compact Duty Swivel Joint is based designed around industry standard ASME 16.5 150lb Raised Face Flange dimensions.


Available as standard from A105 Carbon Steel or 316L Stainless Steel, it is possible to re-drill to match other flanges standards. Other materials available on application. Nitrile, Fluorocarbon (Viton®), PTFE seals and other seals are available as required.

The Compact Duty Swivel Joint can be specified where a very low stack height Swivel Joint is required. Please note the minimal standard nut clearance between the flanges.

Where higher load capacity is required, please contact us with your requirements using our excel sheet or send your details below and we’ll contact you.

The unit is greaseable as standard and with full compliment bearing races to for maximum loads and life. Please see details on the .pdf data sheet.
