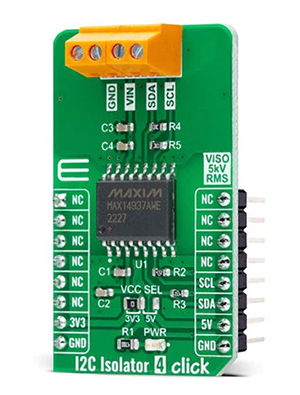

I2C Isolator 4 Click Board

Key Features

• Dual Channel I2C Digital 5KV Isolator
• Robust galvanic isolation of digital signals, withstands 5kVRMS for 60s, low power consumption, supports I2C clock stretching, glitch-free operation, excellent reliability, long operational life, and more
• Based on the MAX14937 - two-channel I2C digital isolator from Analog Devices
• Can be used for transferring digital signals between circuits with different power domains
• mikroBUS: I2C Interface

The I2C Isolator 4 Click Board™ is a compact add-on board that offers completely isolated bidirectional communication. This board features the MAX14937, a two-channel, 5kVRMS I2C digital isolator from Analog Devices. The MAX14937 provides two bidirectional, open-drain channels for applications that require data to be transmitted in both directions on the same line. It supports data rates from DC up to 1.7MHz and can be used in isolated I2C busses with or without clock stretching. This Click board™ is suitable for transferring digital signals between circuits with different power domains at ambient temperatures.

The I2C Isolator 4 Click Board™ is supported by a mikroSDK-compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
