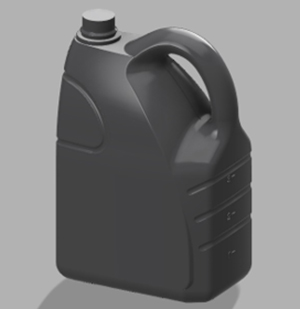

Blow Moulding Design and Manufacture

At Cadman Solutions Ltd we can create new Bottle/Can designs.

We can produce ‘family of parts’ from new or existing designs and re-create Cad files from your existing forms by scanning the product or tooling when no 3D Cad is currently available.

We always check and adjust the form to achieve the correct internal volumes including allowance for the ullage.

In addition, we can create the tool inserts and cutter paths to machine the cavities if required.

Using the latest history based parametric surface/solid CAD systems, we produce high quality 3D CAD models of your product parts along with associative assemblies and drawings. For more organic forms we use T-Spline technology (sub-division modelling) to create complex surface and solid CAD models.

We also have direct modelling tools to modify geometry regardless of how the CAD model was produced. Throughout the process, we can provide you with 3D PDF files, rendered images, prototype models etc to help you fully visualize and test your design before manufacture.
