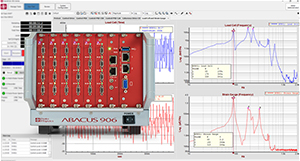

Expand your Capabilities with Strain Measurement using the new Multi Function Bridge, Voltage and ICP Channel Card

An integrated and synchronized solution for all SignalCalc 900 analyzer and controller applications

− the Multi Function precision measurement card adds strain measurement to the 900 Series platform, and is an all-in-one solution for bridge, voltage and IEPE/ICP (including TEDS) signal conditioning.

Featuring four versatile input channels with secure micro-D9 connectors in the front-end, the Multi Function card can tackle a wide range of dynamic signal measurement applications.

Learn More

https://www.dataphysics.com/products/vibration-controllers/strain-measurement

Multi Function Card Performance Highlights

Supports Quarter, Half and Full Bridge configurations, IEPE/ICP and bridge sensors

Includes 120 Ω and 350 Ω completion resistors and a 100 KΩ shunt resistors for each channel

Supplies user configurable ±5V bridge power with precision DACs

Compensates high value bridge unbalance with nulling DAC during offset calibration

New Software Features

Strain gauge database enables a quick and intuitive test setup

Offset and gain calibration, plus gain verification

Real-time temperature compensation of strain using thermocouple data

Real-time principal strain and stress calculations for strain gauge rosettes

Common Strain Applications

Automotive
Testing strain and stress in vehicle components like chassis, suspension systems, and engine parts for durability and safety.

Manufacturing
Controlling and optimizing manufacturing processes by measuring strains in materials during forming, welding, machining, and assembly.

Research and Development
Conducting experiments and studies in various scientific fields where precise strain measurement is essential.

Renewable Energy
Monitoring strains in wind turbine blades, solar panels, and hydroelectric structures to improve efficiency and reliability.

Aerospace
Monitoring strains in aircraft components, wings, fuselage, and engine parts to ensure safety and performance.

Product Testing
Testing strains in consumer products, electronics, packaging materials, and other goods to ensure quality and durability.
