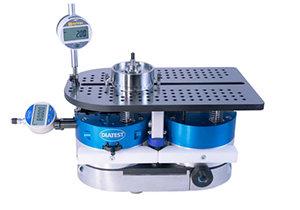

Introducing the diatest DIA-COME C2-HA

The new DIA-COME C2-HA measuring table (HA = Height Adjustable) enables fast, accurate and reliable measurement of diameters at different heights!

Whether inside or outside diameters, plain workpieces or gears, tapers or grooves, the simple operation means that anyone can measure quickly and accurately!

The gear manufacturing industry in particular requires measurements on several levels. Thanks to the height adjustment, this is now possible quickly and easily without changing the measuring inserts, with high positioning accuracy.

The Stats

Repeatability: ± 2 μm
Measuring range inside: 50 - 270 mm
Measuring range outside: 0 - 240 mm
Height adjustment: 0 - 52 mm

The measuring inserts can be calibrated using setting masters and, for example, gauge blocks.

The DIA-COME C2-HA measuring table is a robust and compact unit. It is easy to operate - once set up, anyone can measure correctly and quickly!
