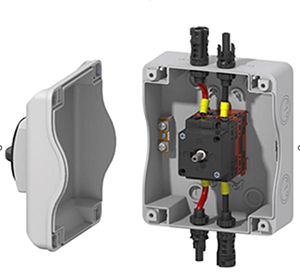

IB Series High Power 1500Vdc Enclosed Solar PV DC Isolator Switches

Pennine Components Ltd are the UK Distributor for Bremas Ersce SpA, Europe’s leading manufacturer of DC Isolator Switches.

We are pleased to announce Bremas’ patented DC rotary contact technology is now available in a Box!

Bremas’s next generation DC Switches can handle 5X to 10X* more power per input than any other competitor of equivalent size.

There’s no need to wire 4 contacts in series or parallel to achieve the desired ratings, no factory fitted wire links, no complicated data sheets to interpret.

The IB Series also comes as standard with colour coded Terminals.

Product Features:

• Colour Coded Terminals +V Brown, and -V Black.
• Current ratings PV1 per MPPT up to 60A at 1000Vdc, Thermal 50A to 60A.
• Current ratings PV1 per MPPT up to 30A at 1500Vdc, Thermal 50A to 60A.
• 2 Pole (1 MPPT) or 4 Pole (2 MPPT).
• Red or Black handles, padlockable in the “Off” position.
• Switch proven with worldwide installation.
• PV1 and PV2 ratings, IEC EN60947-32015/A2 Annex D certified.
• Option for prewired with MC4 connectors (preferred in 4 pole applications).

The Benefits:

• Higher margins of safety.
• Reduced installation errors.
• Reduced application errors.
• Replaces 2 competitor Isolators in one box.

For more information on the best DC Isolators on the Market, please contact myself in sales.
