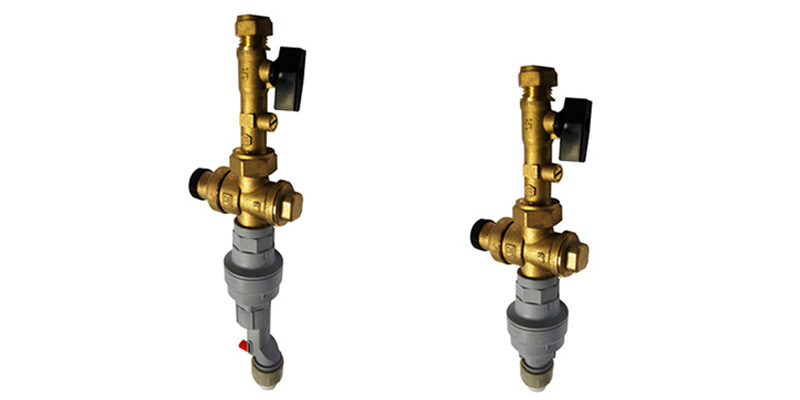

Improved cooler/machine install rail!!!

Improved cooler / machine install rail!!!

• Universal install protection – shorter compact version, for water coolers coffee / ice machines
• 15mm compression inlet – universally connectable
• Strong brass body, double non return valve with isolation tap – WRAS approved, pressure relief in the case of air locks
• Strong brass adjustable pressure reducing valve – normally factory set to approx 3 bar
• Waterblock – adjustable flood protection from 4.5 to 45 litres
• Optional Waterblock external reset device – provides easy reset on site normally without the need to isolate and drain down
• Exit options – all integral connections are self sealing, outlet options are available in ¾ bsp male or quick install John Guest plumbing options, 6mm, 5/16, 8mm, 3/8 and 15mm pushfit and more

Technical data:

Main body: Brass , Additional items : plastic , waterblock / reset device and one piece JG adaptor

Parts: quality approved, industry recognised within our main product range, provided assembled

Rail testing: pressure and leak tested to 8-9 bar – any tampering of the unit will nullify our supply testing,

supplied from stock, assembled and made to order
