15 February 2011 | Metrix Electronics Ltd

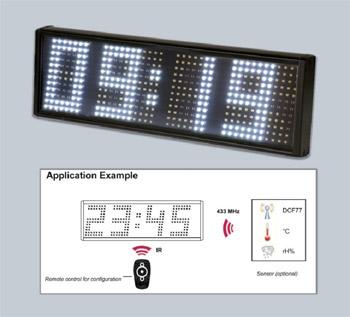

New large multi-function Clock Display with optional Temperature & Humidity from Metrix

The miline FLT10 is the latest addition to Metrix Electronic’s range of large displays. The basic model features a built-in quartz clock to display time (hours & minutes) and date (day & month) on large 120mm high white LED digits. The bright wide-angle display includes automatic brightness control and is readable at distances up to 50 metres.

The display has a black anodised aluminium housing with an adjustable angle bracket for wall or ceiling fixing. Sealed to IP54 standards, with overall dimensions of 467 x 152 x 45mm, the housing is suitable for indoor and semi-outdoor industrial and commercial applications. The power supply for the display can be 15 to 40VDC or 230VAC, with a consumption of just 10 Watts.

The optional MFS10 multifunction sensor includes a DCF77 radio synchronised clock, plus ambient temperature (-40°C to +60°C) and relative humidity (1 to 99%) sensors. The MFS10 is battery operated and transfers time, temperature and humidity data to up to ten clock displays over a 433MHz wireless link with a maximum range of 50 m. The sensor’s wall mounting case is weatherproof to IP65 standards.

The miline clock display is supplied with an infrared remote controller to configure the settings.
