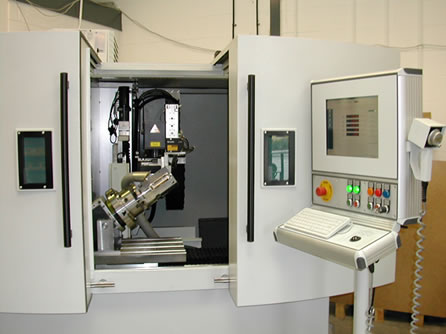

The latest laser engraving technology for full software axis control & automated repeatability.

This technology enables the laser engraving of full 3D models directly into customer projects.

It requires a 3D CAD model of only the material that is being removed by the laser. The CAD export needed for this process is a STL file.

'Z' slice data is generated by the CAM software & pre-determined parameters are applied to each layer as these are lasered one by one.

Dynamic 'Z' axis software control will maintain constant laser focus throughout the process.

The 3D model grows into the material, as the laser removes each layer.

If you do not have a 3D file available but have a 2D CAD outline or vector file, we have the software that can build up the STL file. Importing a DXF, EPS and IGES outline file will generate the 3D data.

Step One - Artwork
2D DXF outline file required, other formats such as JPEG, DWG, AI, IGES, BitMaps, CorelDraw & PDF files can be accepted but artwork charges will be incurred.

Step Two - Programming
Laser graphic created by us from your artwork.

Step Three - Lasering
Depending on the material different frequency settings are applied to achieve the depth required.

Step Four - Final Product

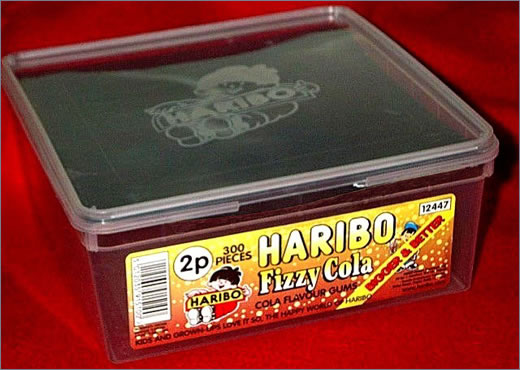

Having completed all three stages above, the final product can be moulded to produce the part required.
