Company details for:
Accurate Cutting Services Ltd

Unit 44 & 45,
Crossgate Road,
Park Farm Industrial Estate,
Redditch,
Worcestershire,
B98 7SN,
United Kingdom
Quick Links:
Products / Services

Amada HFA250W Automatic Bandsaw

Milling Machine - Amada THV430 Double Headed
Vertical clamping allows precise milling on a pair of surfaces simultaneously to quickly produce a high accuracy symmetrical component
Amada THV Series milling machines are used to mill the steel blanks cut by Amada Pulse Bandsaws, to produce accurate, high quality machined surfaces for the next stage of manufacture. They have also proved to be particularly effective when used in conjunction with other high precision Amada milling and grinding machines, thus maintaining quality and speeding production rates over a wide range of products.

Amada HFA400W Automatic Bandsaw

Bandsaw Blade - Amada Axcela G Carbide Tipped

Bandsaw Blade - Amada Chipbreaker

Bandsaw Blade - Amada MAGNUM HI-LO
With its special alloying technology, Magnum Hi Lo achieves HRC70 tooth hardness. It maintains positive cutting action and outlasts other blades in production cutting of large-diameter, work hardening steels and nickel-base super alloys with tensile strength of up to 164,000 psi.

Amada HFA530CNC Automatic Bandsaw

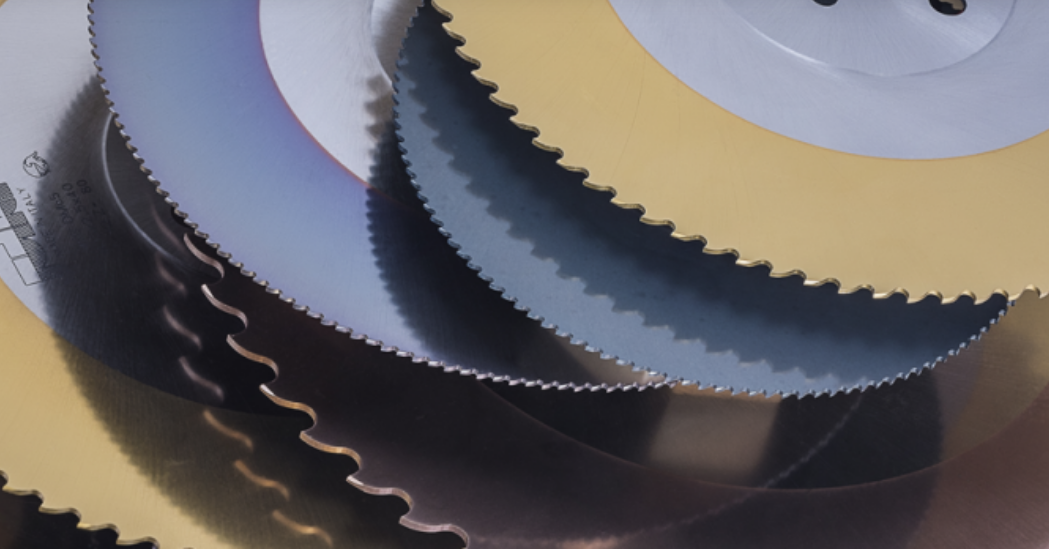

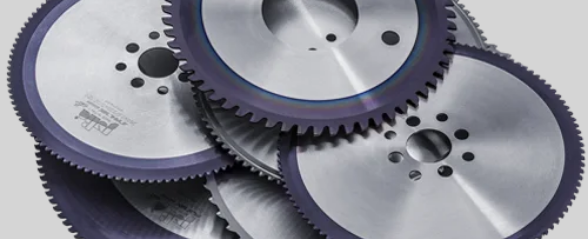

Circular Saw Blades - Julia HSS
The range goes from 160mm diameter to 620mm diameter, with thicknesses from a minimum of 1 mm to a maximum of 6mm in various increments, with tooth forms A − AW − B − BW − C − BR (chip breaker).
The standard type for the whole range is HP-GRIND; we also supply CO² steam treated blades and PVD (Physical Vapour Deposition) coated ones.

Circular Carbide Saw - Amada CMB-230
This high throughput industrial circular saw machine cuts most ferrous and many non-ferrous metals to an exceptionally high accuracy which in some applications negates the need to machine off large amounts of material, thus reducing wastage.
Using disposable carbide and cermet tipped circular saw blades gives a long life at high speeds.

Circular Carbide Saw - Amada CMB75
The optimum solution for the sawing of bar material with maximum precision and minimum cycle time.
FEATURES
High Performance Sawing with Precision
The inclined guide of the saw head ensures a perfect chipping angle, achieving both extreme accuracy and maximum cutting performance.

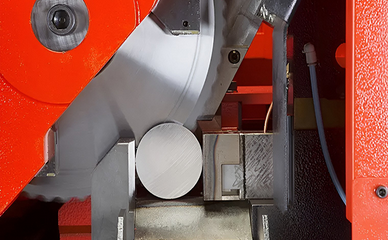

Amada Circular Saw Blades
The use of very thin carbide saw blades with a small cutting width guarantees minimal waste with maximum machine performance. Due to the special tooth geometry, optimum cut faces are produced with almost reflective surfaces.
Wide Range of Machining
The CMB circular saws make it possible to machine many materials and forms: solid material, tubes, square material and profiles.
Cleaner and Drier Sawing Process
The proven minimal quantity lubrication system ensures clean and almost dry cuts. The combination of the proven Amada CNC technologies means that reworking is unnecessary in most cases.
Easy Operation
The practical Amada CNC technology enables easy operation without the need for machining or programming knowledge.
Maximum Tool Life
In order to reduce the vibration of the saw blade, the machine is equipped with special saw blade plate guides, which guide the blade on both sides near the tooth engagement. This results in maximum cutting precision and optimum blade life, giving an excellent cost per cut ratio.
Cutting Capacity
Round material (diameter in mm) 10 − 76.3
Rectangular material (edge length mm) 10 − 60

Amada PC430X/AX Pulse Cutting Automatic Bandsaw

Large Capacity Bandsaw - Amada H1000
This 1000mm capacity Single column and guide bandsaw is very heavy and rigid in its construction.
Amada have designed a series of heavy duty large capacity bandsaws to cope with adverse environments and conditions of use. The accessibilty of the machines allow large diameters and shapes to be loaded/unloaded with ease.
FEATURES
Cutting Control
The cutting rate has been simplified by dividing materials in to 9 groups when a particular material is selected the machine will automatically set the downfeed cutting rate and recommend the correct blade speed. Thus achieving maximum blade life.
Blade deviation monitor
Cutting depth control
Light beam marking
Motor and Drive Transmission
A powerful 11kw motor coupled with a worm wheel and worm shaft
Bandsaw Blade Width
A 80mm wide blade 11100mm long gives a high beam strength enabling faster down feeds achieving excellent cutting rates for all types of materials including Inconel.Hastelloy and Monel.
Maximum Cutting Capacity
Round bar : 1100mm
Rectangular bar : 1100mm (w) 1000mm (h)
For a full specification,demonstration or quotation call now on 01274870311
The difference is matching the blade design with the machine design

Amada PC720 Pulse Cutting Bandsaw
Single pulse cutting cancels the vibrations that occur during the penetration force. This technology decreases cutting resistance while increasing blade life and cutting rates. Increased blade life is now guaranteed without sacrificing productivity.
Increased Blade Life without Sacrificing Productivity
By controlling vibrations that occur during the penetration force, pulse cutting reduces cutting resistance and blade wear in half. Lower tooling cost is ensured by the extended blade life.
Automatic Dual Wire Brush System
The dual wire brushes contact the sides of the blade at the teeth, instantly cleaning the gullet area and avoiding excessive brush wear due to improper settings.

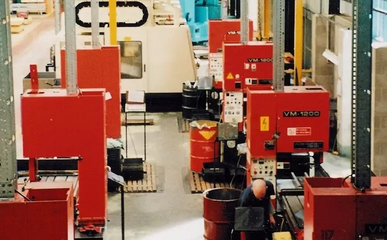

Amada VM1200 Vertical Bandsaw

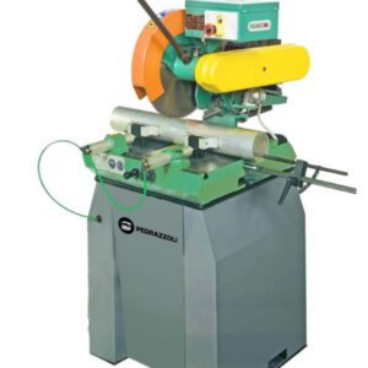

Semi-Automatic Circular Saw - Pedrazzoli BROWN 300 SA
MACHINE COMPLETE WITH
Mechanism for the rotation of head block for angled cuts up to 45° left and right with locking lever.
Pneumatic vice with removable anti-burr.
Pneumatic cylinder for head movement, with brake for speed adjustment.
Head tilting on adjustable self-lubricating bushings.
Reverser.
Drive pedal for semi-automatic cycle.
Emergency push button with key on control panel.
Blade lubrication-cooling system with electric pump.
Coolant liquid vat with extractable pump for vat cleaning.
Complete protection guard with rapid blade change system.
Piece support arm with sliding roller.
Bar stop with millimetric bar.Circular blade 275Ø
Blade cleaning roller.
Pedestal in welded metal sheet, 49 kg.
Instruction book for use and maintenance.
Set of wrenches for the maintenence.

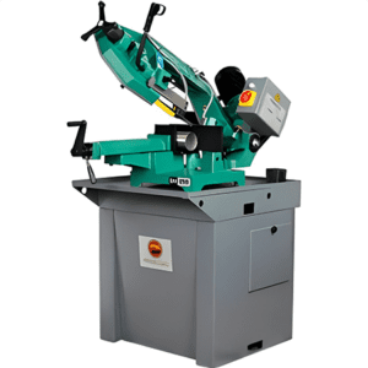

Pull Down Mitre Bandsaw - Pedrazzoli BROWN SN 420
Machine base in cast iron with ample circular resting base which turns with the large bow .
Adjustable machine parts: vice unit, bow support, bow’s vertical and horizontal perpendicularity, vice shoulders.
Pedrazzoli brand speed reducer unit
Protection guards for parts in movement, micro-switches on pulley cover guards, emergency button on electric panel.
Lubrication/refrigeration system for band with electric pump and two adjustable taps placed on the band guides
Cast iron parts are PEDRAZZOLI Green, sheet metal parts are Grey and blade cover guards are Yellow
ACCESSORIES AVAILABLE UPON REQUEST:
Loading roller table, length = 1000 mm
Loading roller table, length = 2000 mm
Loading roller table extension, length = 2000 mm
Unloading roller table with barstop, length = 2000 mm
Unloading roller table extension, from 2000 to 4000 mm
Unloading roller table extension, from 4000 to 6000 mm
Mist lubrication
Rapid pneumatic vice
Mechanical cutting speed variator (from 19 to 96 m/1’)
Laser pointer for cutting position

High Speed Circular Cut Off Saw - Pedrazzoli PERRIS 350 SA-PN
FEATURES
Mechanism for the tilt of head block for angled cuts up to 60° left , 45° right and 45° off the vertical.
Two pneumatic vices adjustable both lengthwise and laterally.
Pneumatic cylinder for head movement, with brake for speed adjustment.
Two speeds of blade rotation obtainable by means of inversion of the pulleys.
Perfectly balanced head, tilting upon shielded ball bearings.
Drive pedal for semi-automatic cycle.
Emergency push button with key on control panel.
Oil mist unit.
Complete protection guard with rapid blade change system.
Bar stop with millimetric bar positionable on both sides of machine.
Pedestal in welded metal sheet, 49 kg.
Instruction book for use and maintenance.
Set of wrenches for the maintenence.

SN 300 SA IDR Bandsaw
2 Speed Three-phase (V 400 − 50 Hz, other voltages upon request)

Manual Pull Down Mitre Circular Saw - Pedrazzoli SUPER BROWN 2000
MACHINE COMPLETE WITH
Safety switch for blade drive on lever hand grip.
Complete protection guard with rapid blade change system.
Emergency push button with key on control panel.
Two-speed switch.
Head tilting on adjustable self-lubricating bushings.
Mechanism for the rotation of head block for angled cuts up to 60° left and 45° right with blocking lever.
Lateral head movement unit for 45° cuts left and longitudinal cuts.
Support crank which allows to cut with the same ease and output big pieces (crank forward) and small pieces (crank back).
Manual vice with rapid clamping.
Refrigerating liquid vat with immersion pump thus reducing overall dimensions.
Bar stop with millimetric bar.
Circular blade 275Ø.
Instruction book for use and maintenance.
Set of wrenches for the maintenence.

Sawing Machine Sales & Service
The company has established a support team of engineers and consultants, who have knowledge of most aspects of machine maintenance and repair.
The company can fully service, rebuild and recondition, and take emergency break-down calls for, these sawing machine brands:

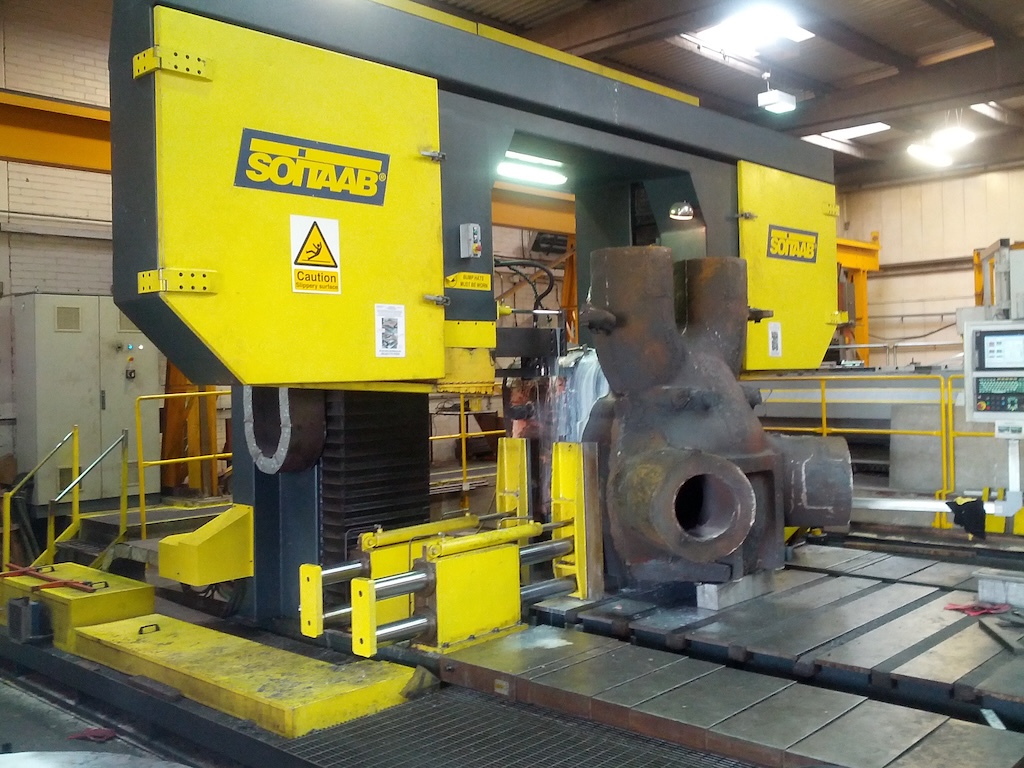

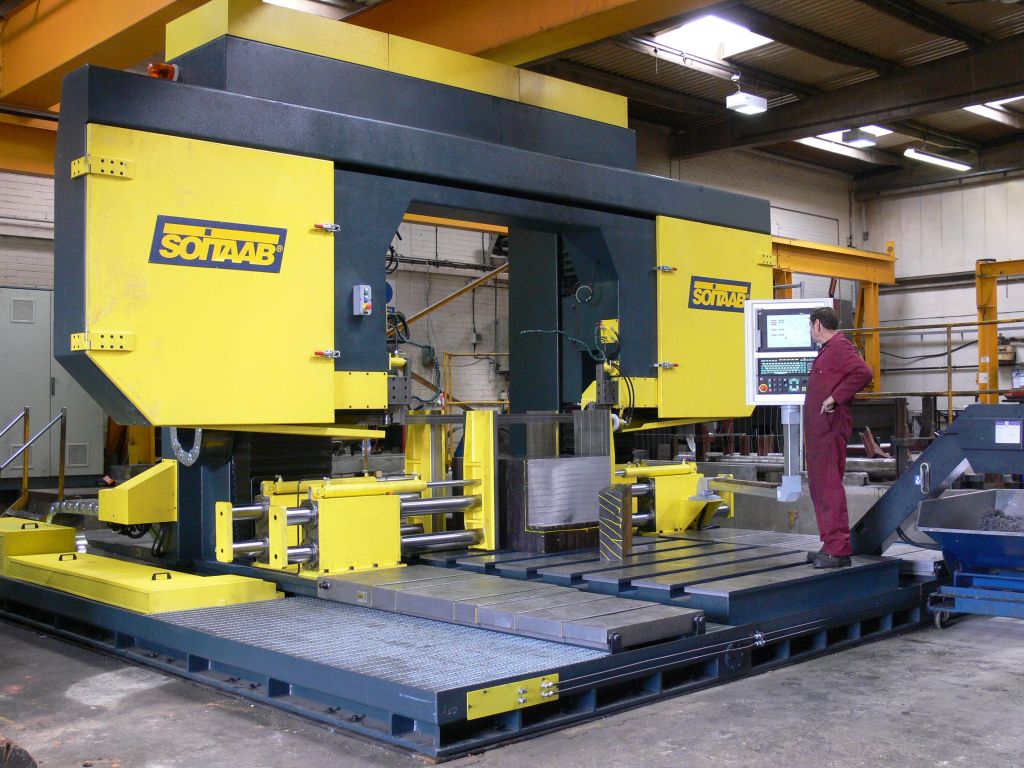

Adige, Amada, Behringer, Bianco, DoALL, Kasto, RGA, Tsune, Cosen, Forte, Startrite, Sofina, Soitaab, Pedrazzoli.

Abrasive Cutting Machines - Cutmaster BC 20/20
Metal cutting operations using abrasive discs are most commonly found where sawing is too expensive or difficult to achieve and speed of cut, and a good surface finish of the cut face are important.

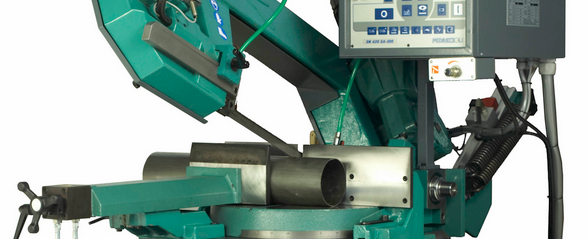

Pedrazzoli SN 420 MRM Manual Mitre Bandsaw

Amada CMB150 High Speed Carbide Circular Saw

Amada PCSAW530AX Pulse Cutting Automatic Bandsaw

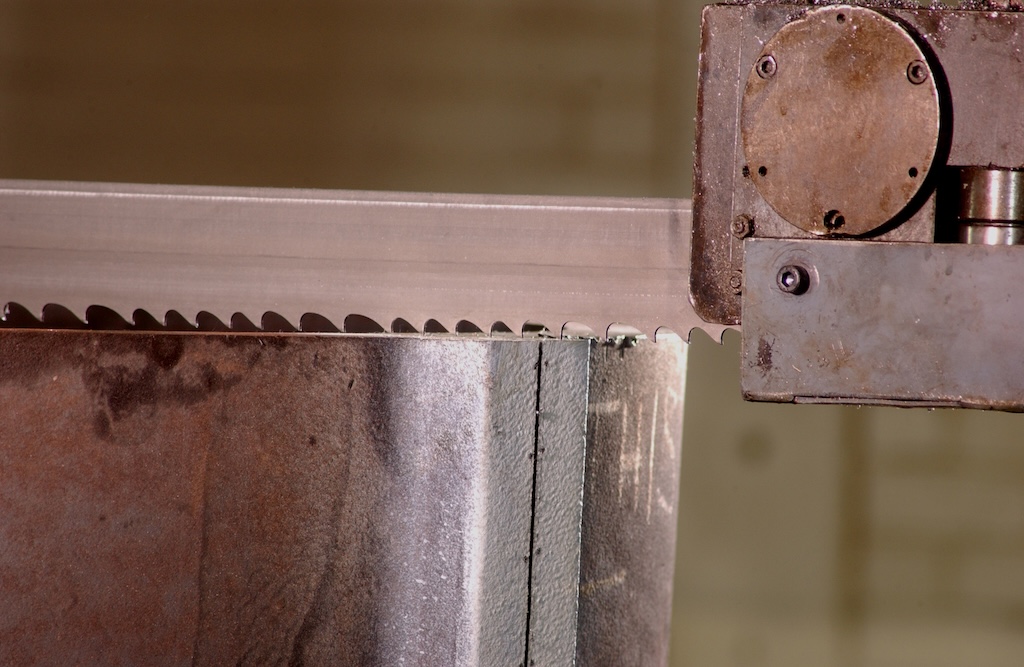

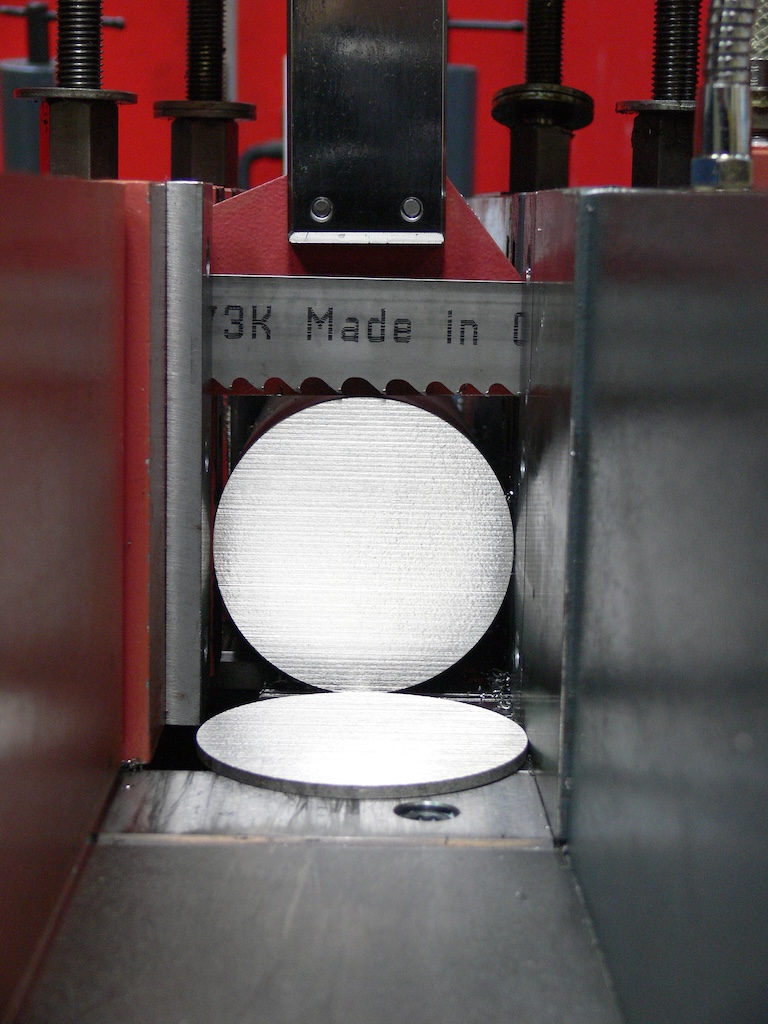

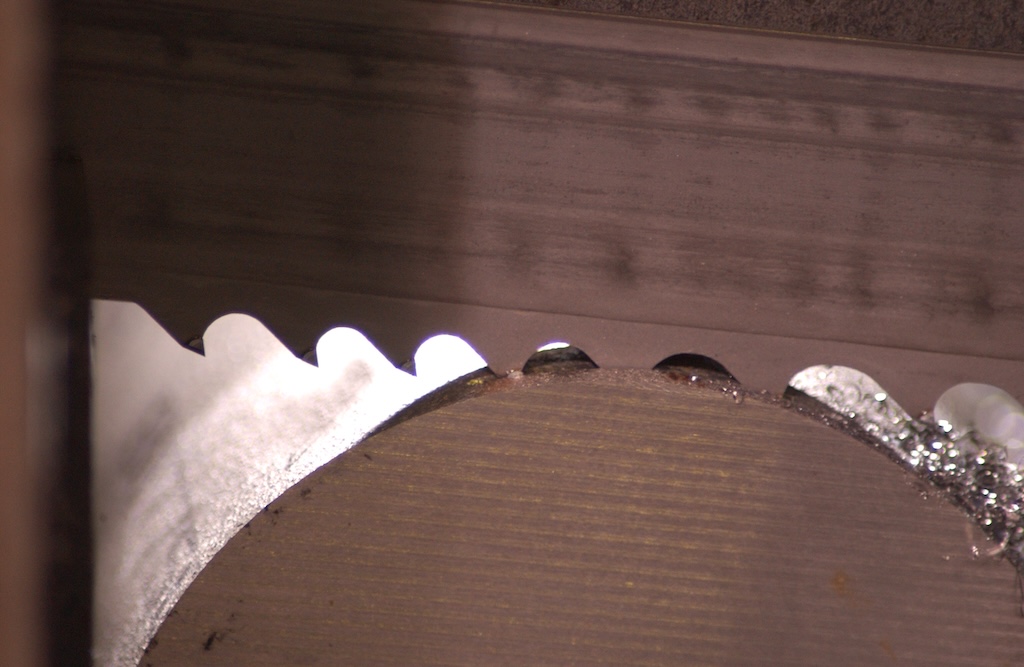

Bi-Metal Bandsaw Blades

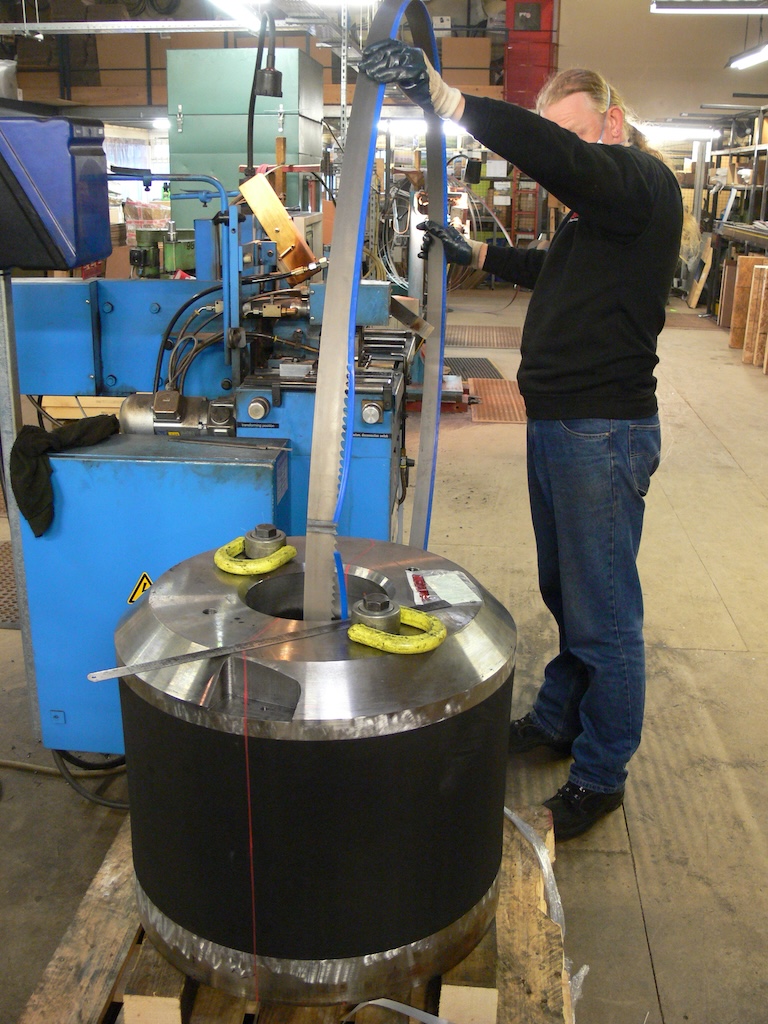

All blades are made to order and shipped directly to suit your saw and application.
Amada bi-metal bandsaw blades consists of a high speed steel cutting edge made of M42 or M71 material welded to a flexible steel body material. The blade body material is optimised for long bending life whilst supporting the tip in the cut. The high speed steel tip is significantly harder than the body material and designed for long wear life and chipping resistance whilst cutting at faster speeds. The harder tooth makes bi-metal blades significantly tougher than standard carbon steel blade, and is suitable for general purpose cutting of steel, non-ferrous and non-metal materials in bundles, tube and solids and for cutting difficult materials such as stainless steel, nickel alloys and titanium.
About us
As a leading specialist we have unrivalled technical knowhow from our 50 years reign the aerospace, automotive and petrochemical industry. We bring our customers solutions and efficiency prior to machining and after casting, forging, fabrication and extrusion.
Accurate Cutting Services develop and manufacture band and circular saw blades and machines and provide a sales and support service to the users. We offer the most versatile sub-contract metal sawing service offering precision metal cutting, rough profiling and sectioning, reclamation and investigation services for large or small capacity sawing.
With a wide range of metals used in today's manufacturing industry including advanced alloys with extreme thermal, chemical or mechanical properties and solid steel materials, heavy demands are made of blades and machines. The right choice of blade and machine to use, and its proper maintenance, are vital if delivery times, productivity targets and quality standards are to be met.
To provide you with the best possible blades for your machines we offer a blade sharpening and repair service. We have a technical team of blade manufacturers, grinding and repairing blades as well as saw machine repair work.
Bandsaw Blades
Accurate Cutting Services saw blades, Bi-metal power metal tipped blades, knife edge and carbide tipped bandsaw blades.

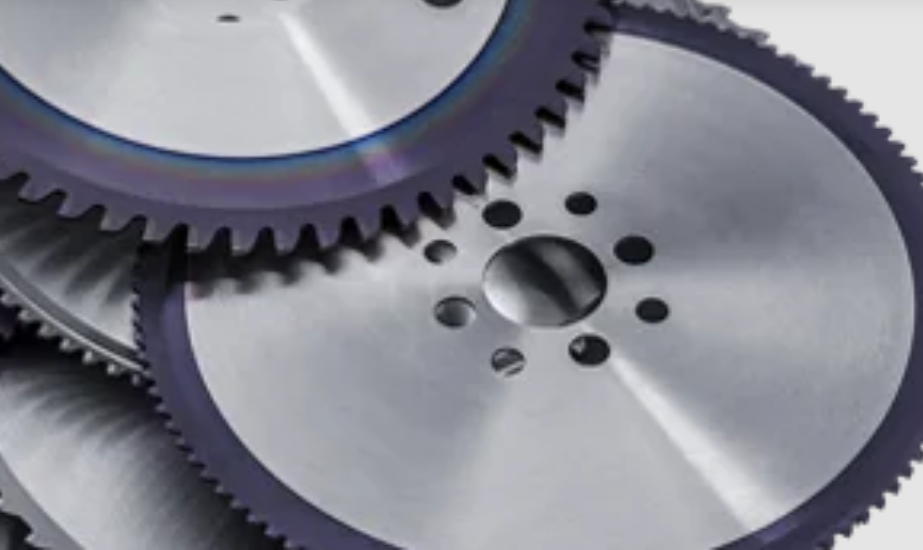

Circular Saw Blades
Circular saw blades supplied by Accurate Cutting Services include; Julia SHSS, HSS circular saw blades and Daiko disposable carbide tipped blades.

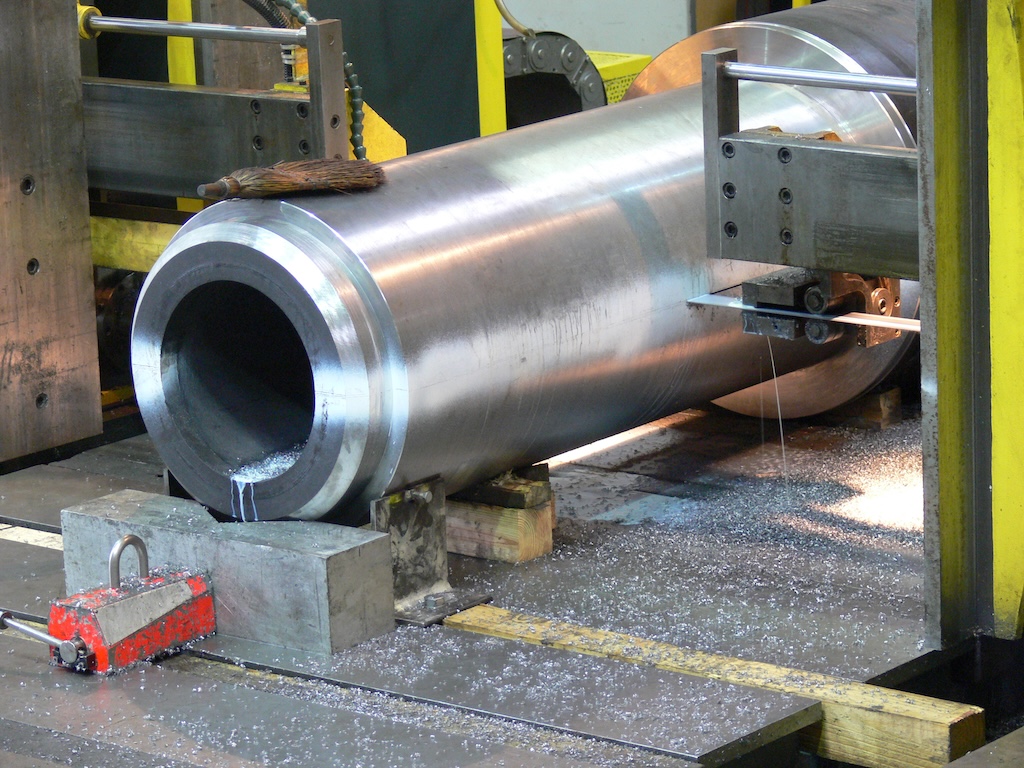

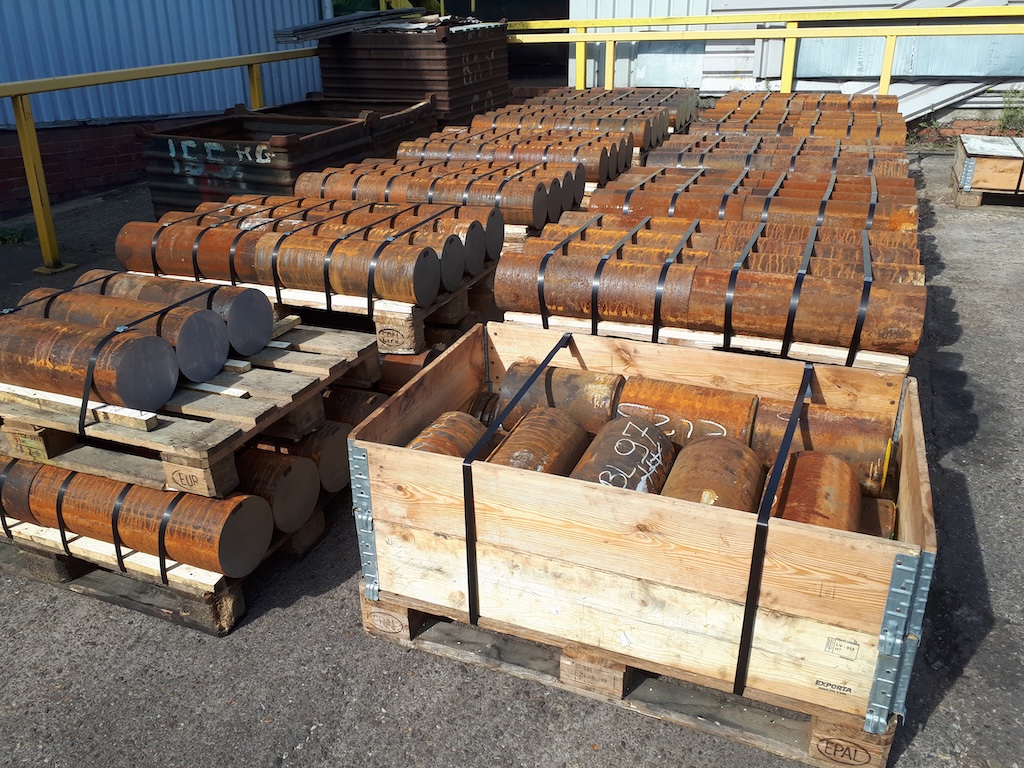

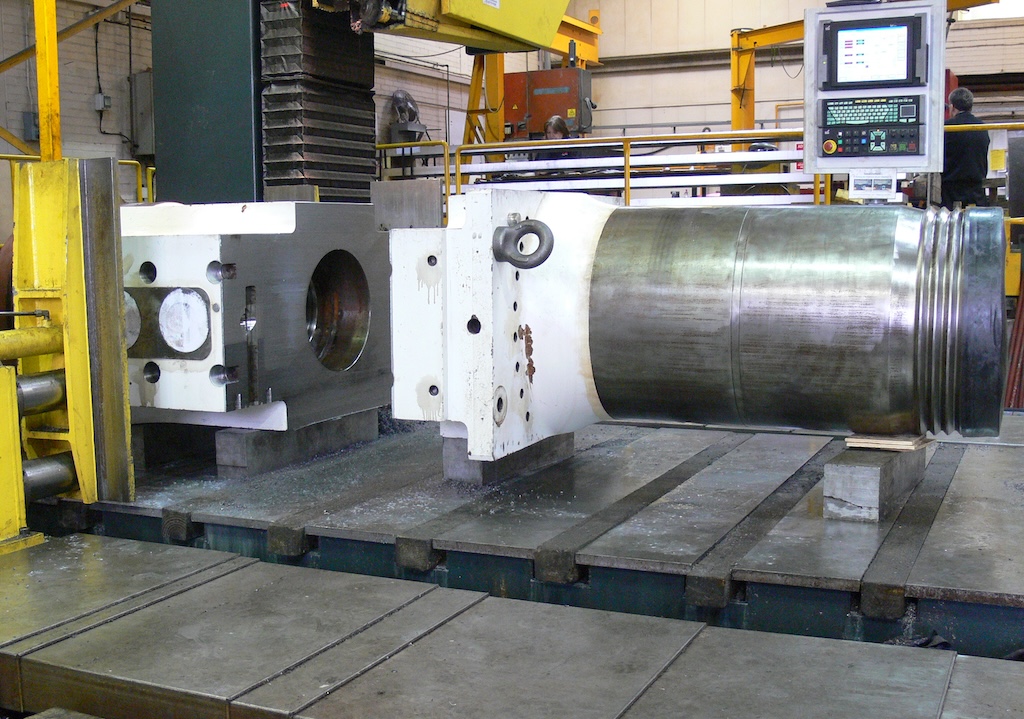

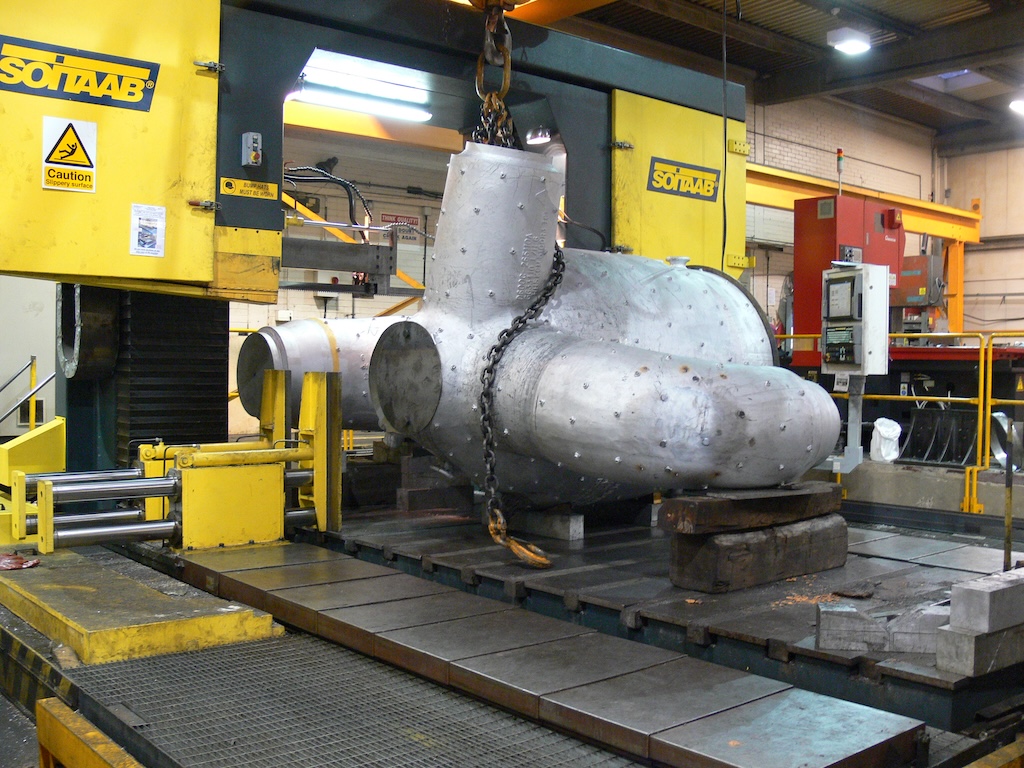

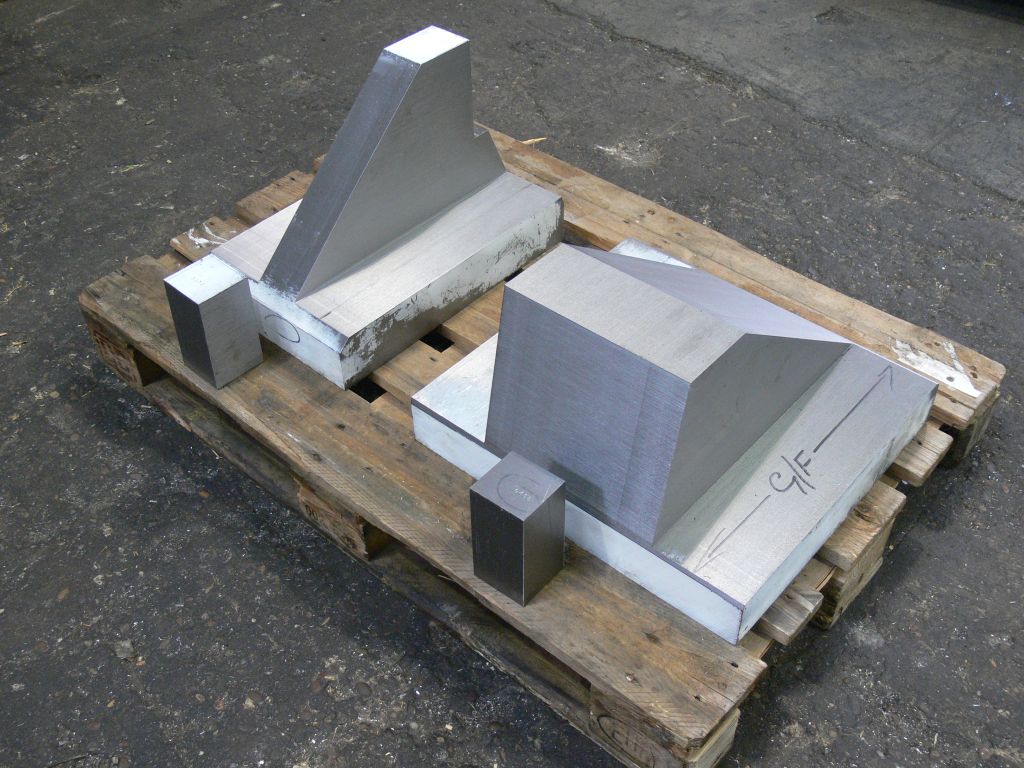

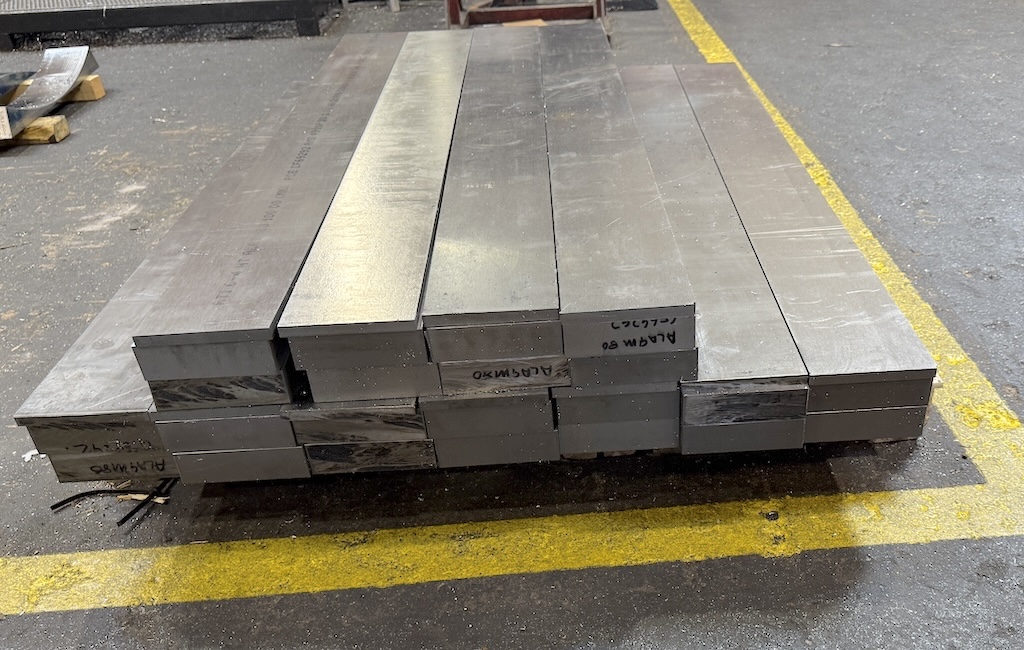

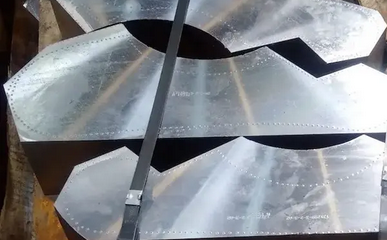

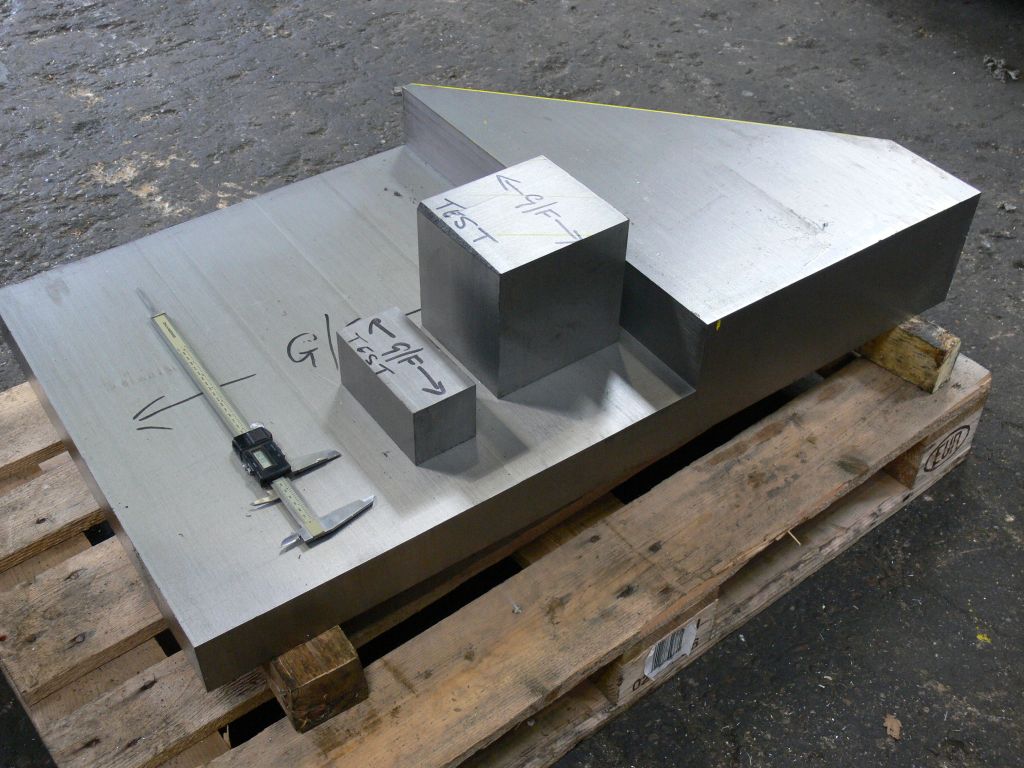

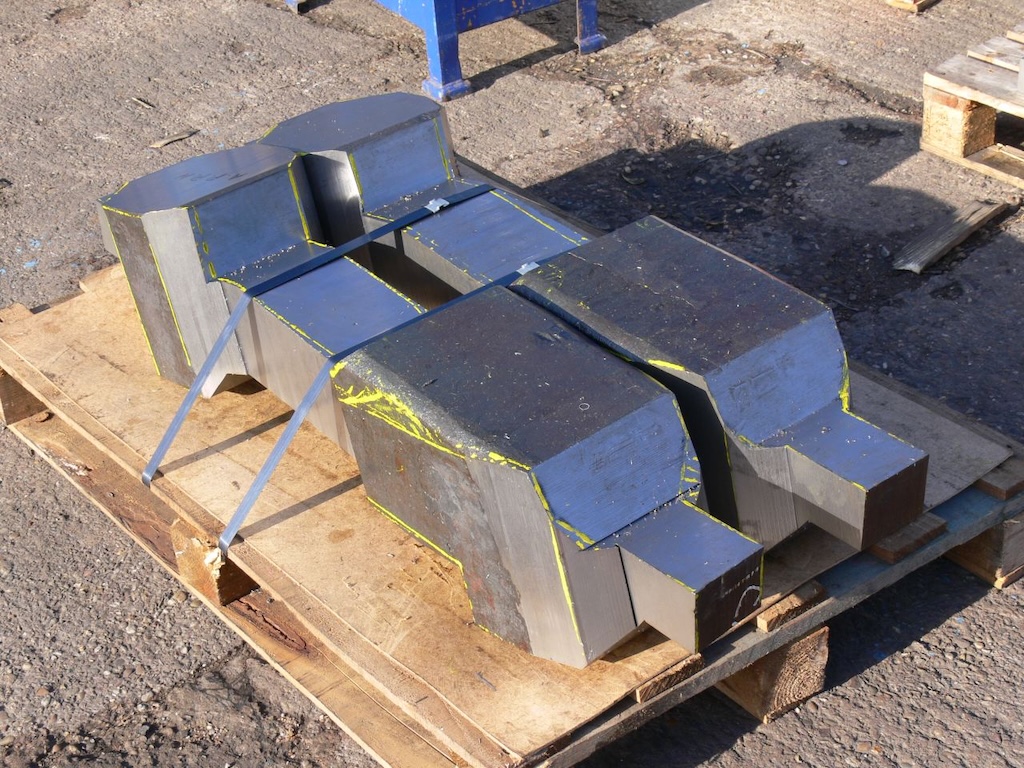

Cutting Services

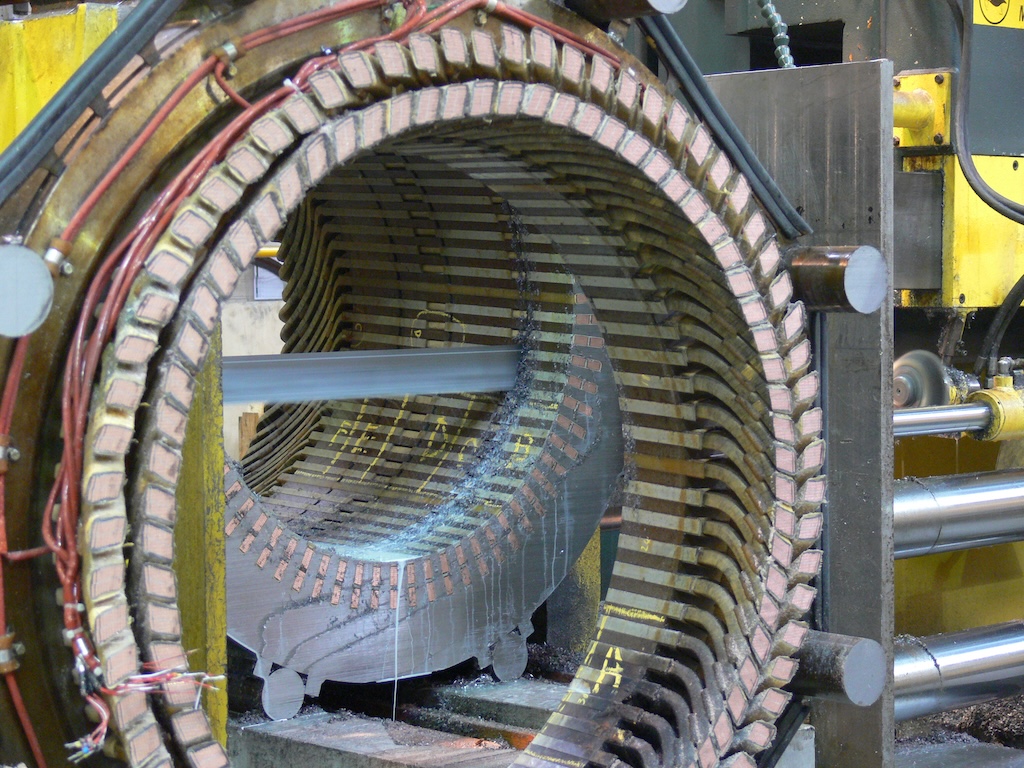

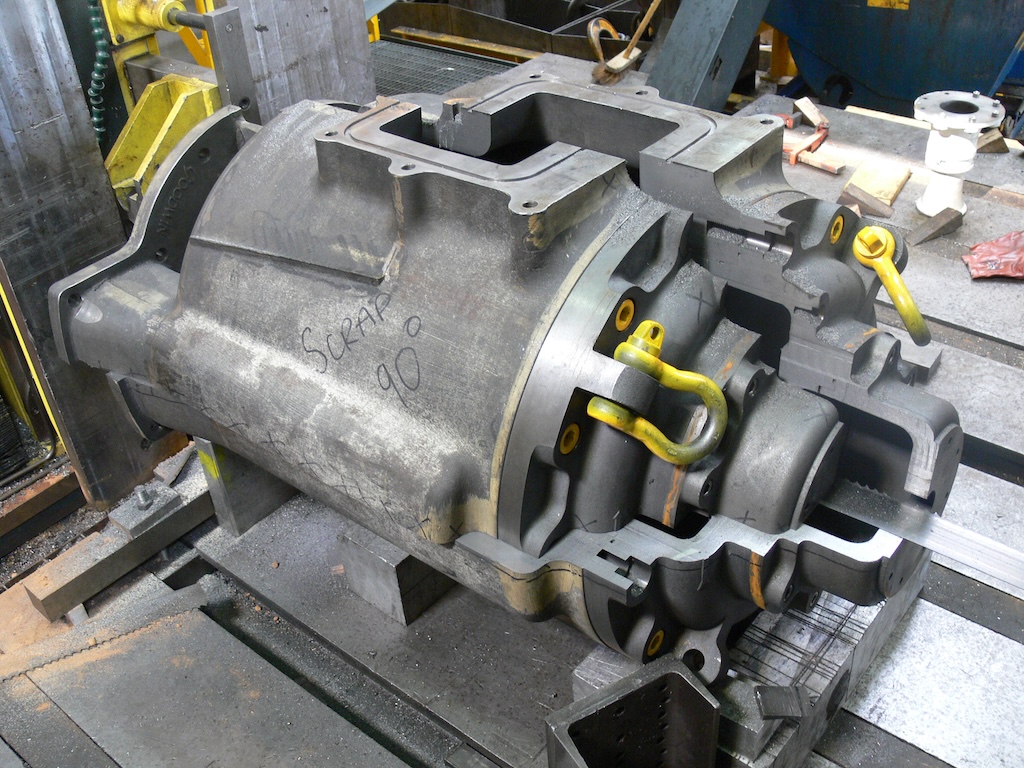

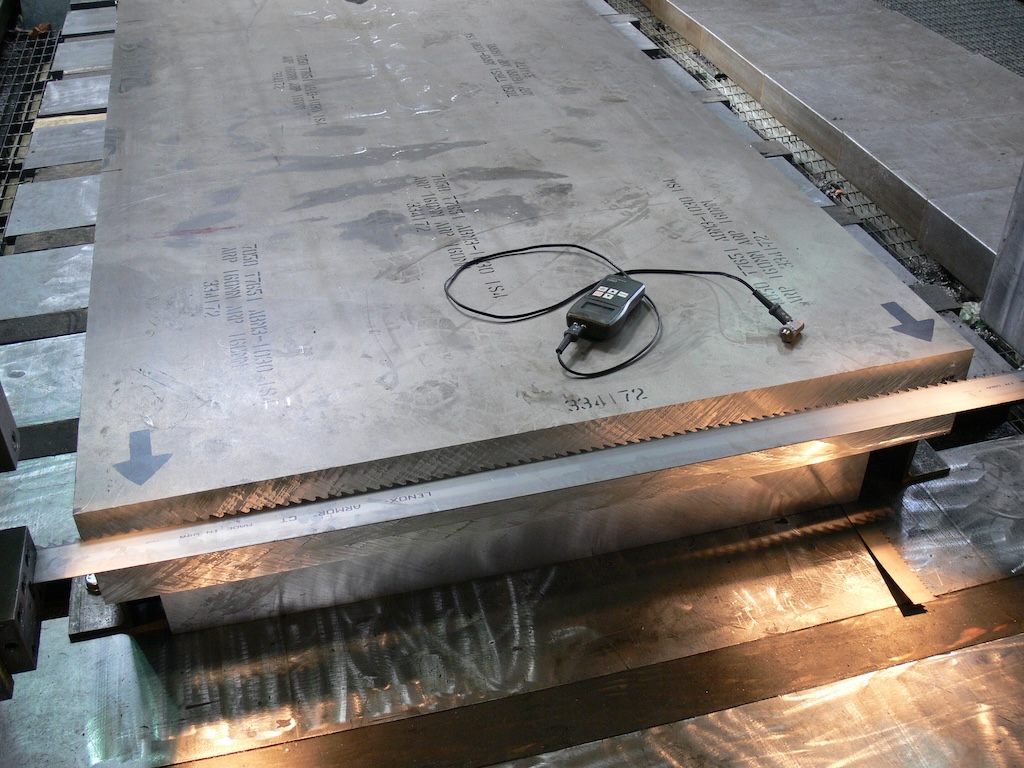

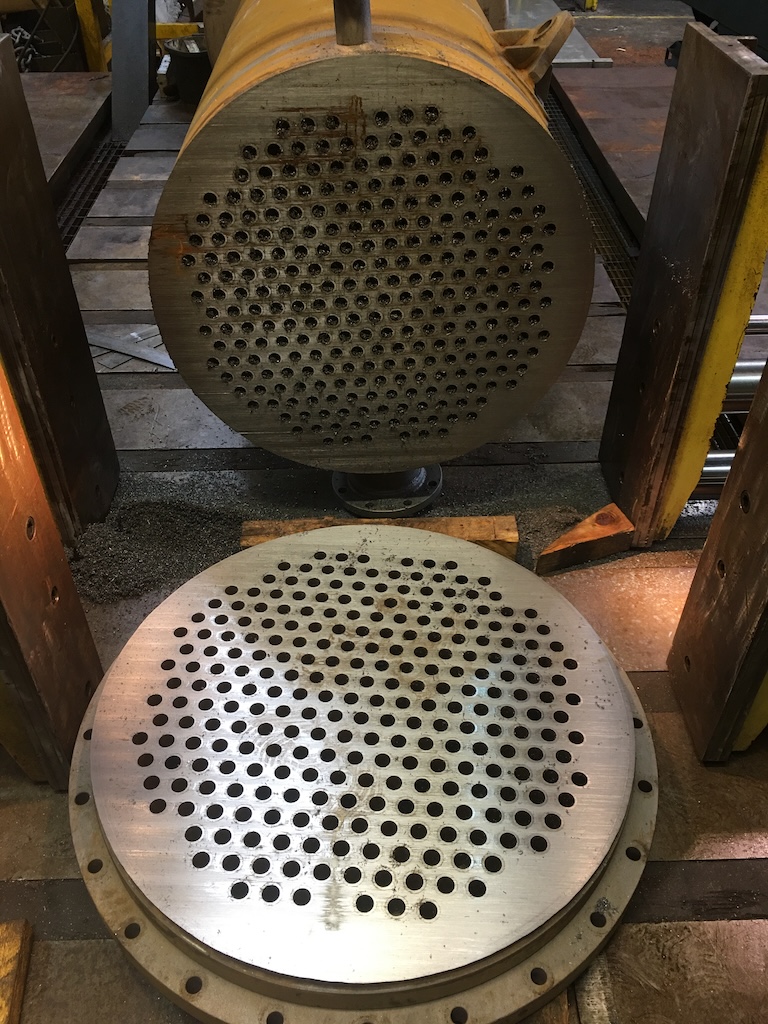

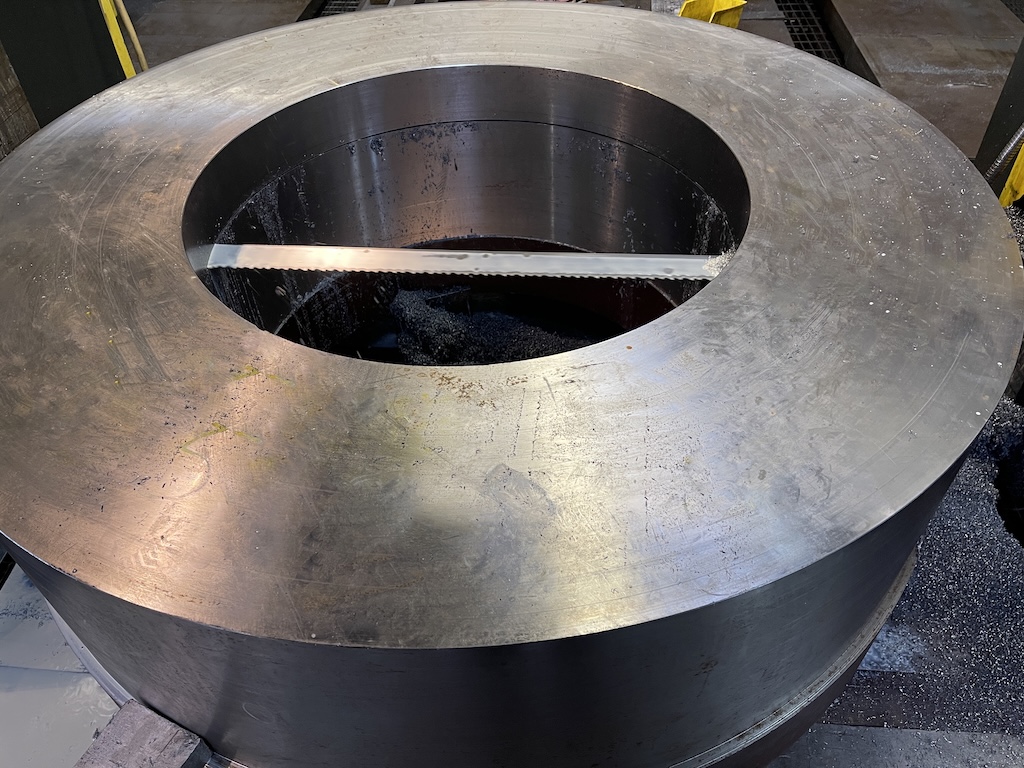

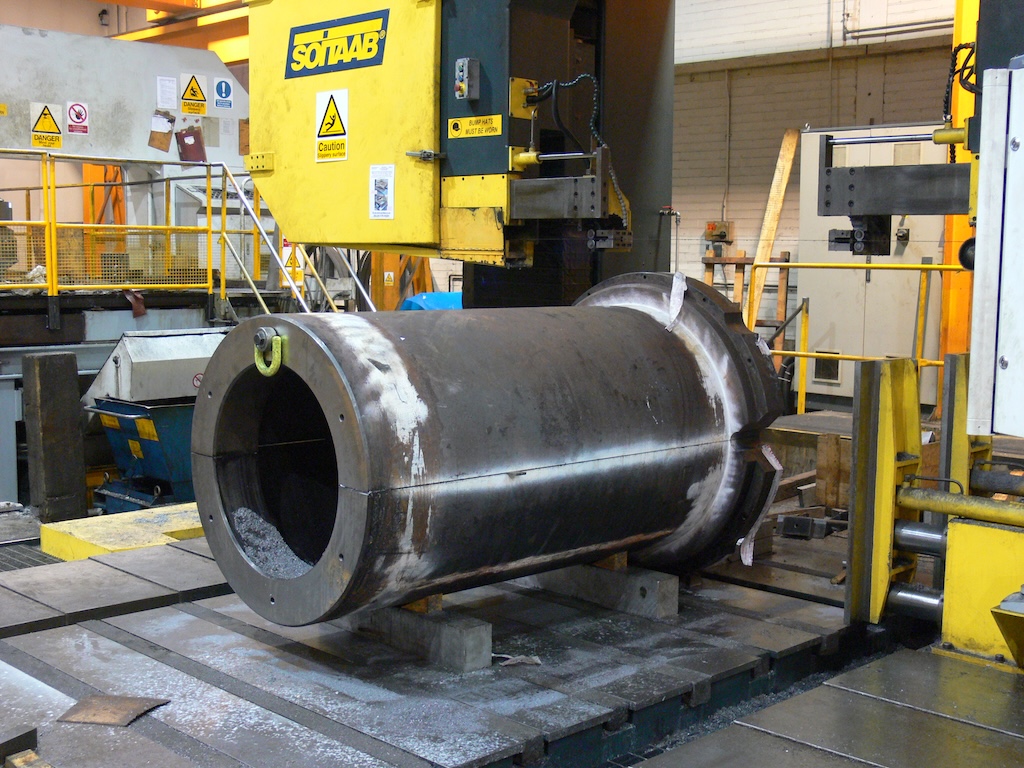

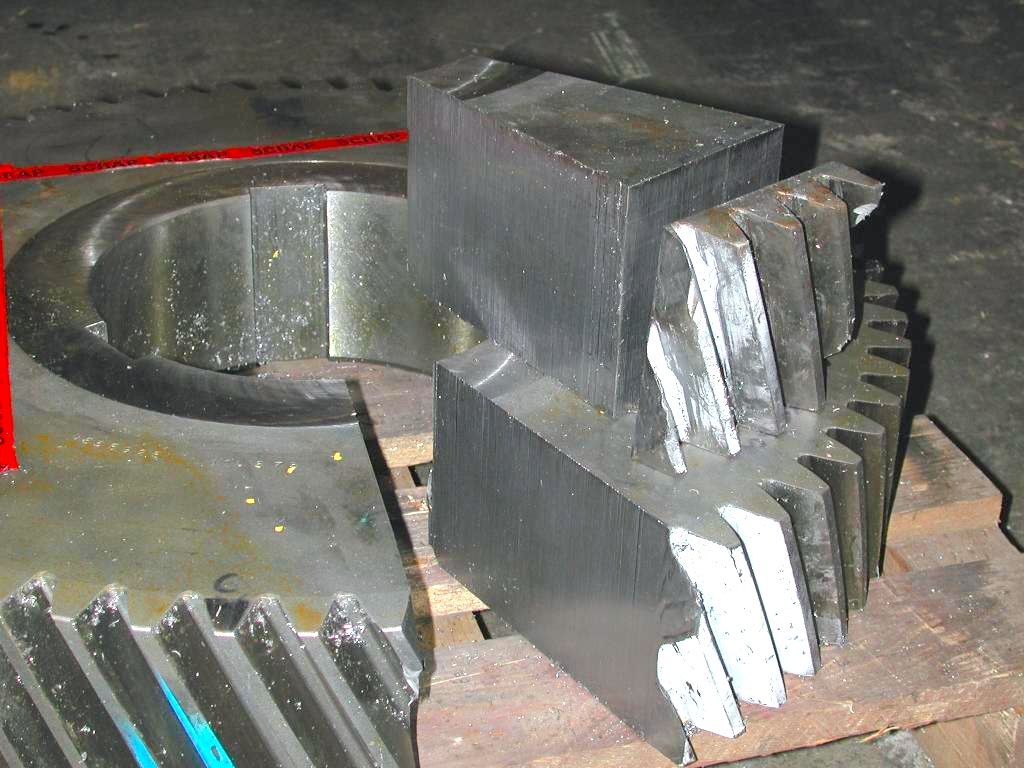

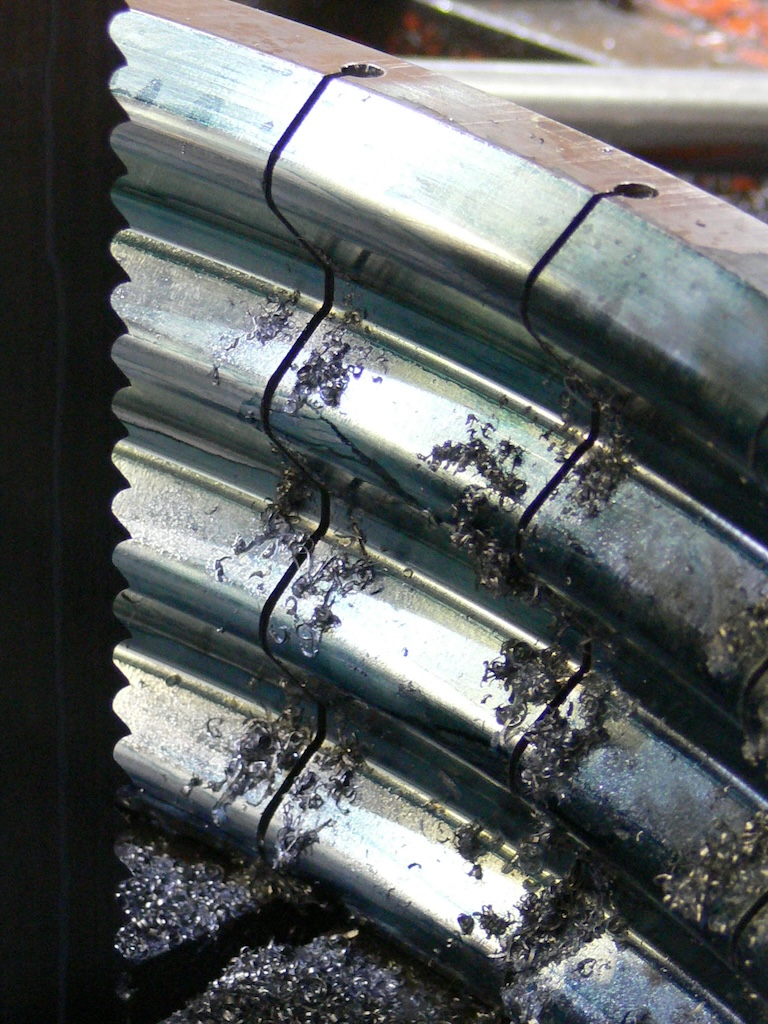

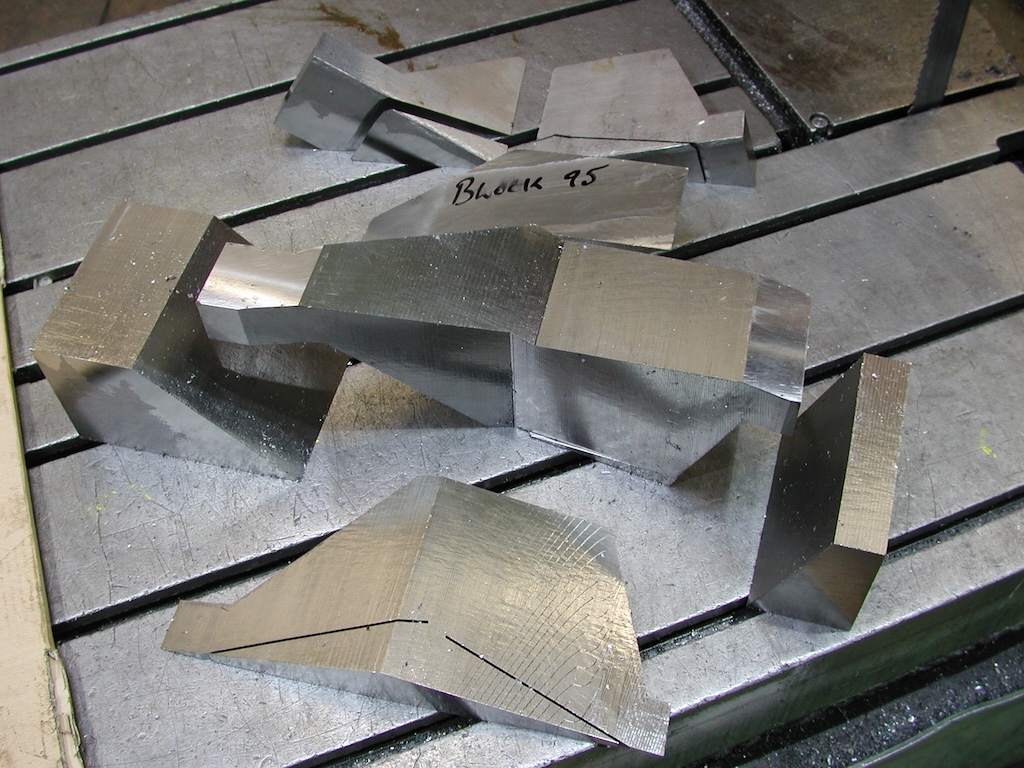

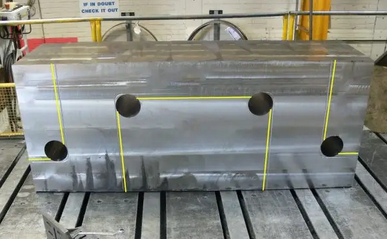

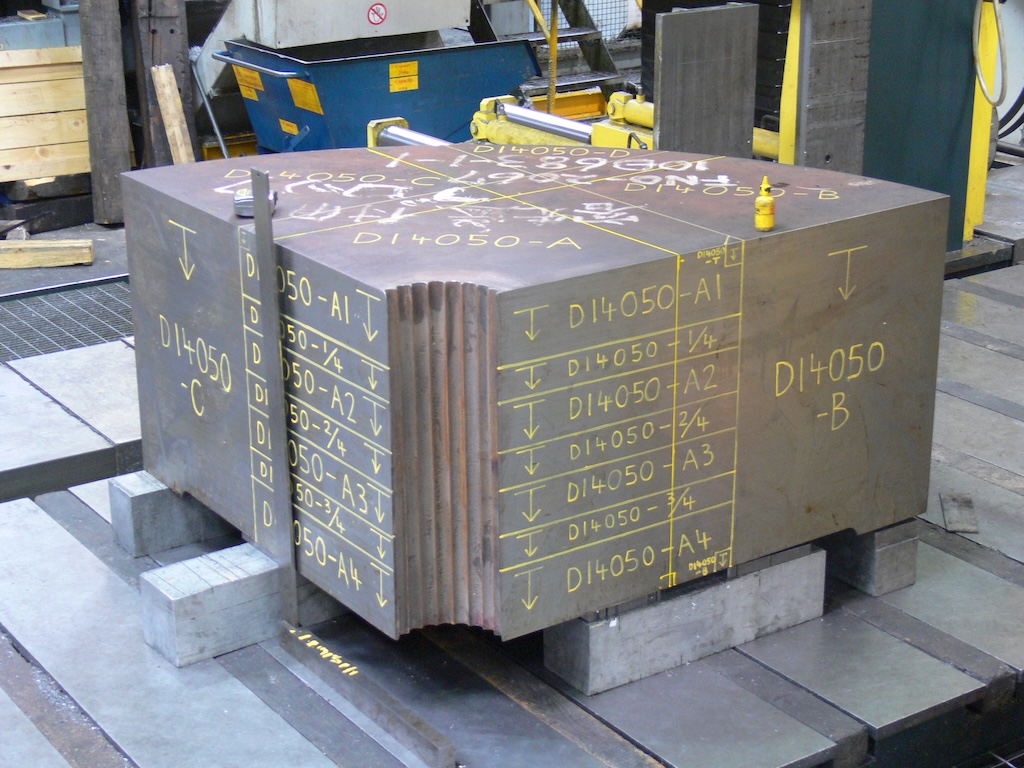

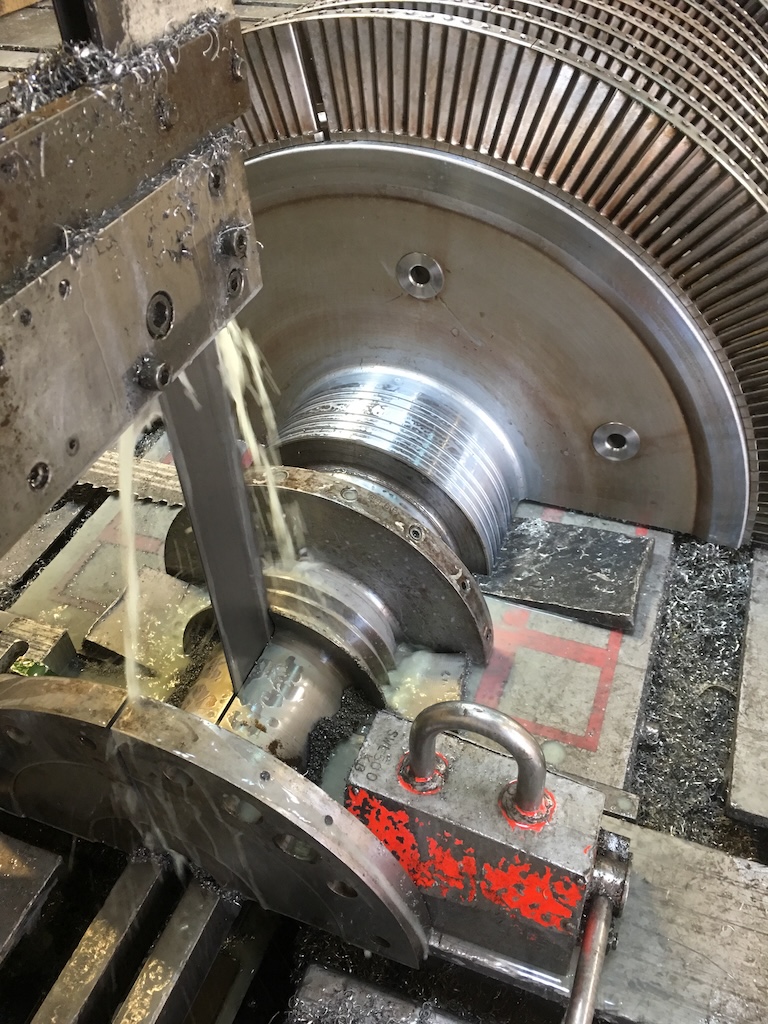

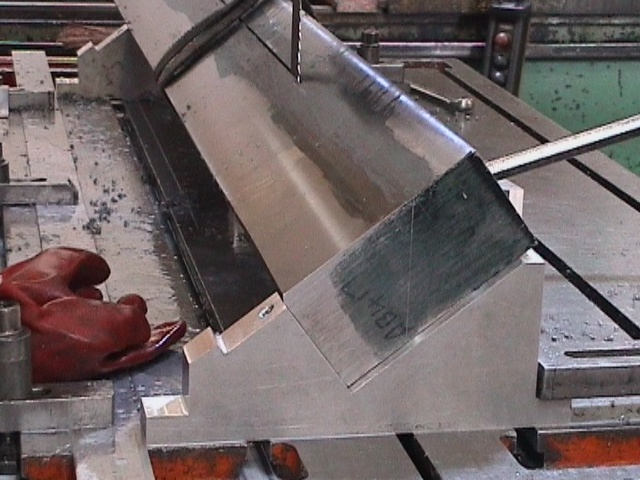

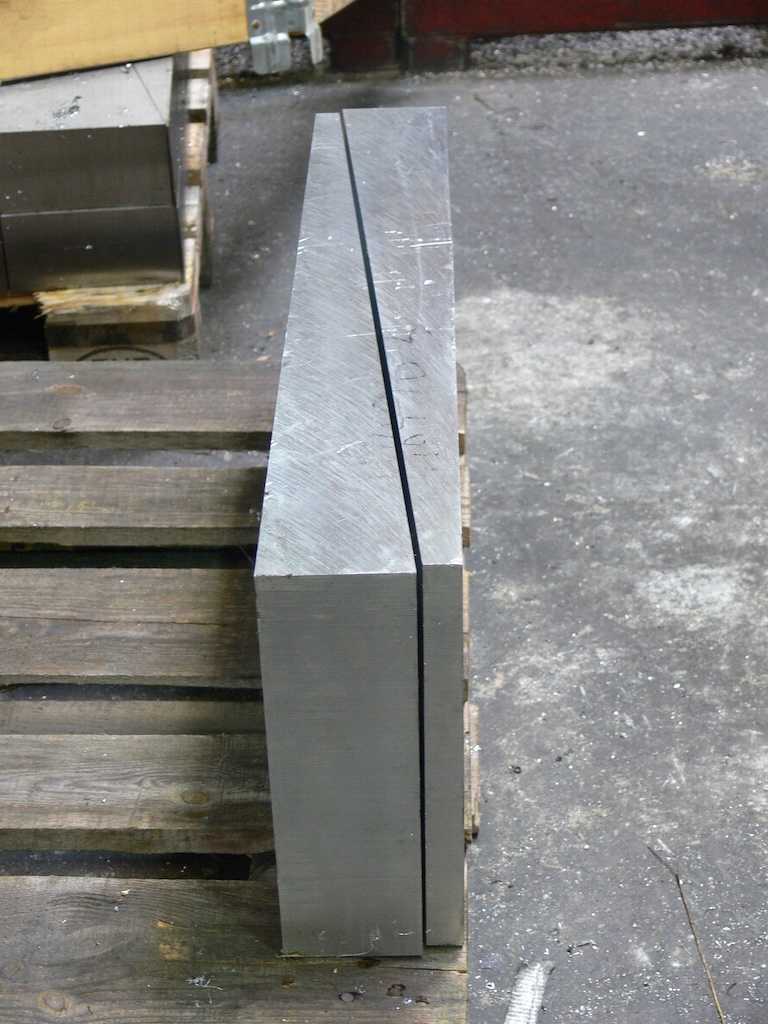

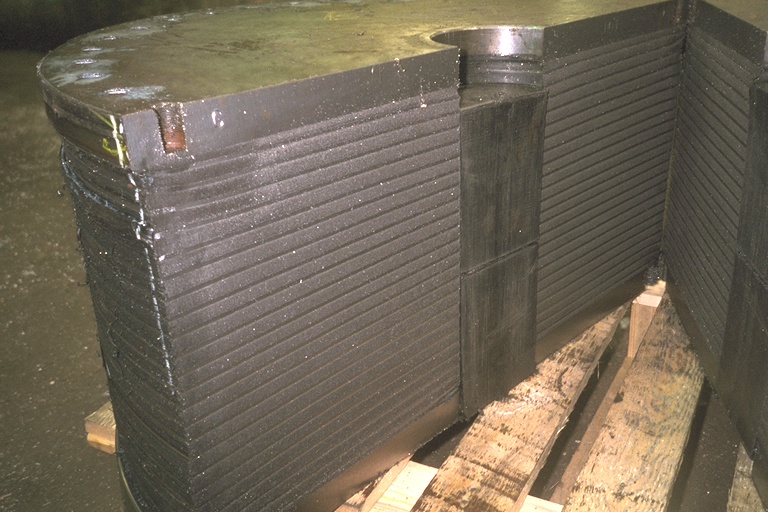

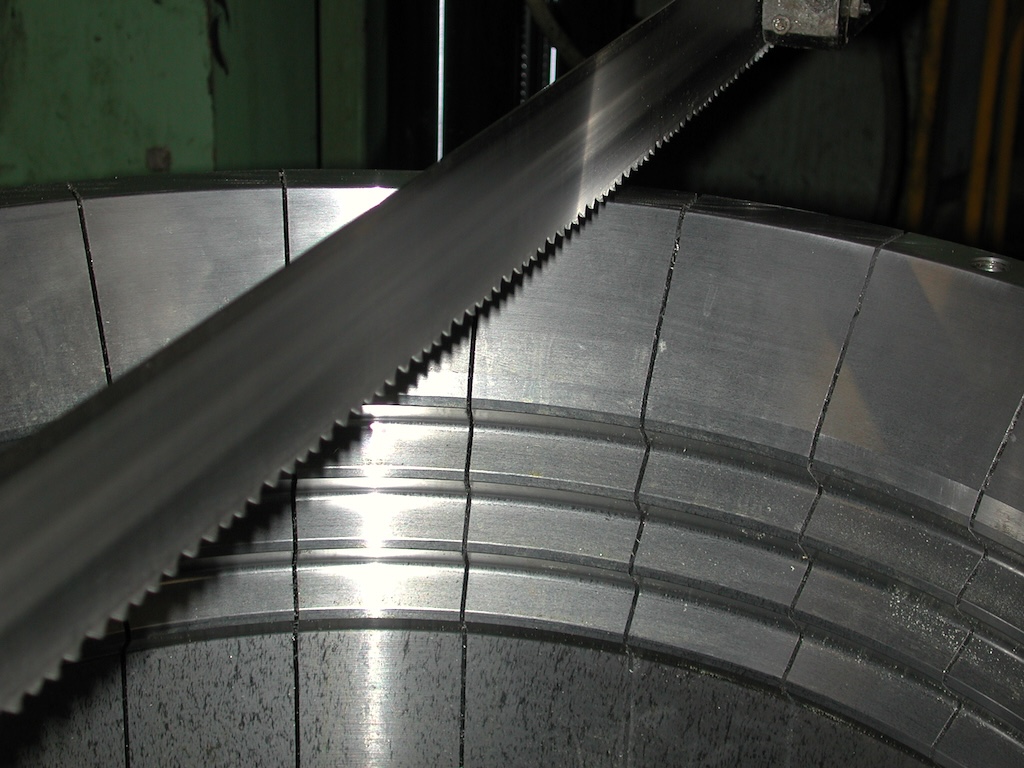

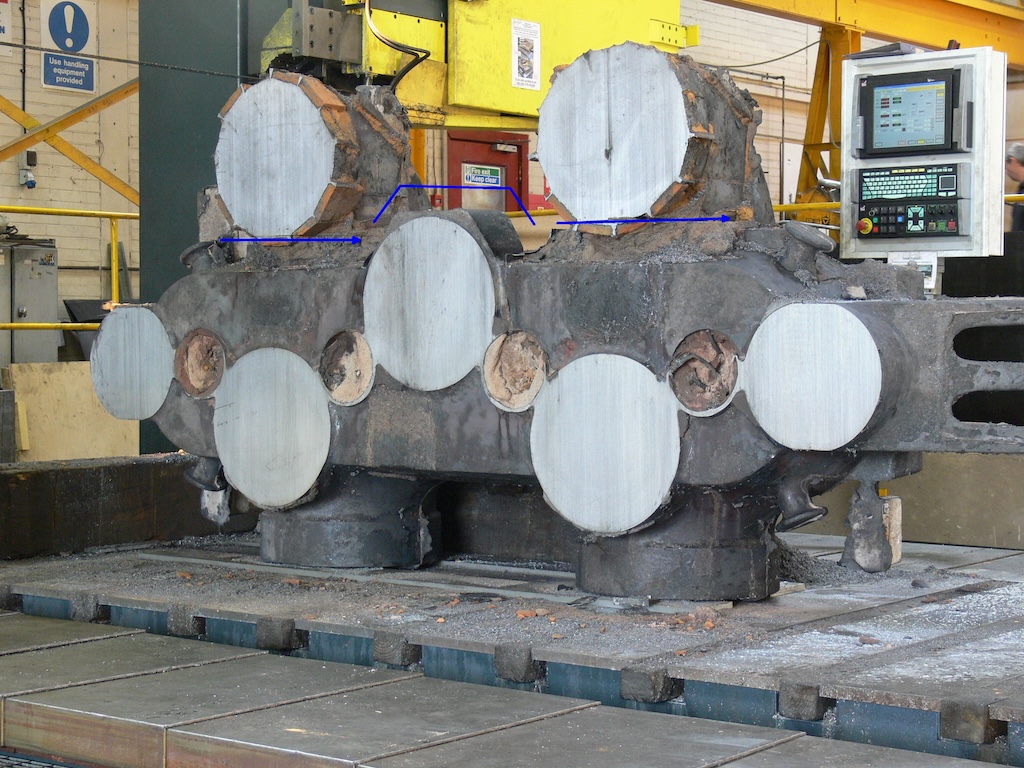

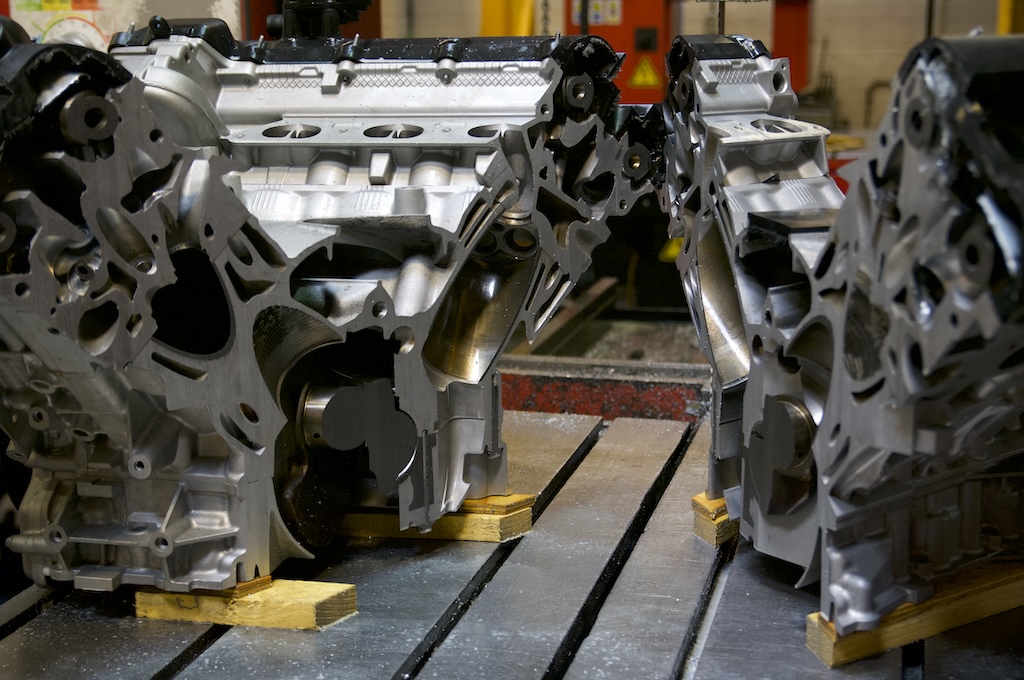

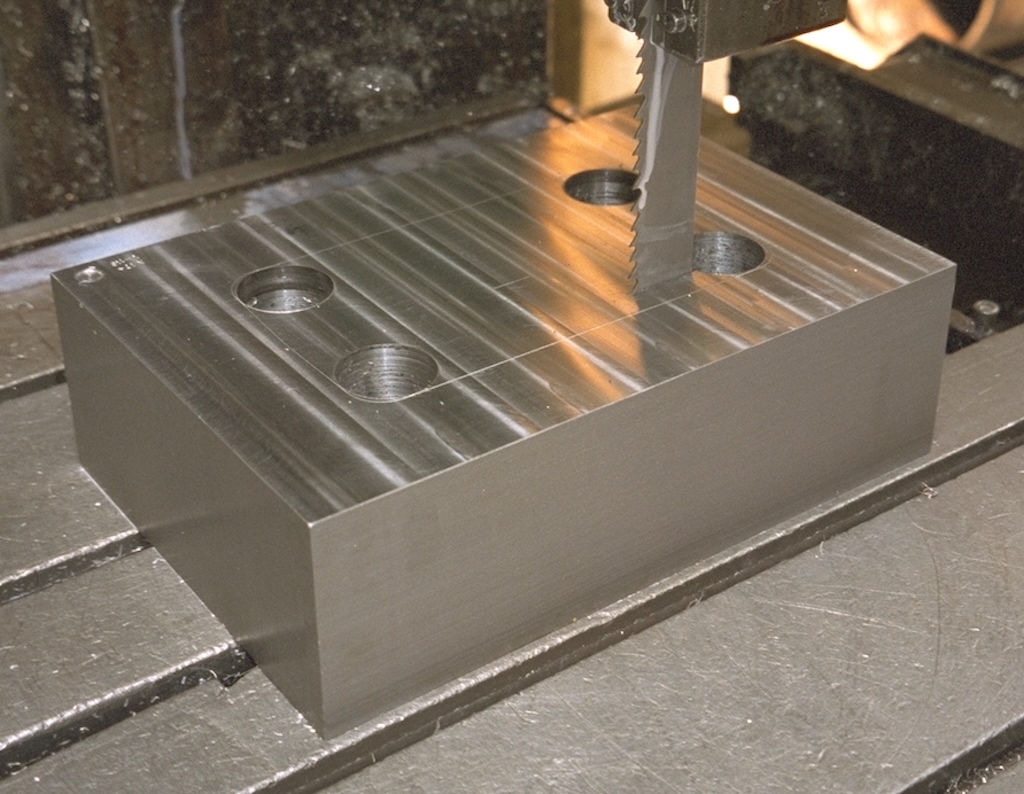

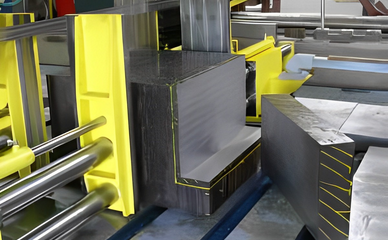

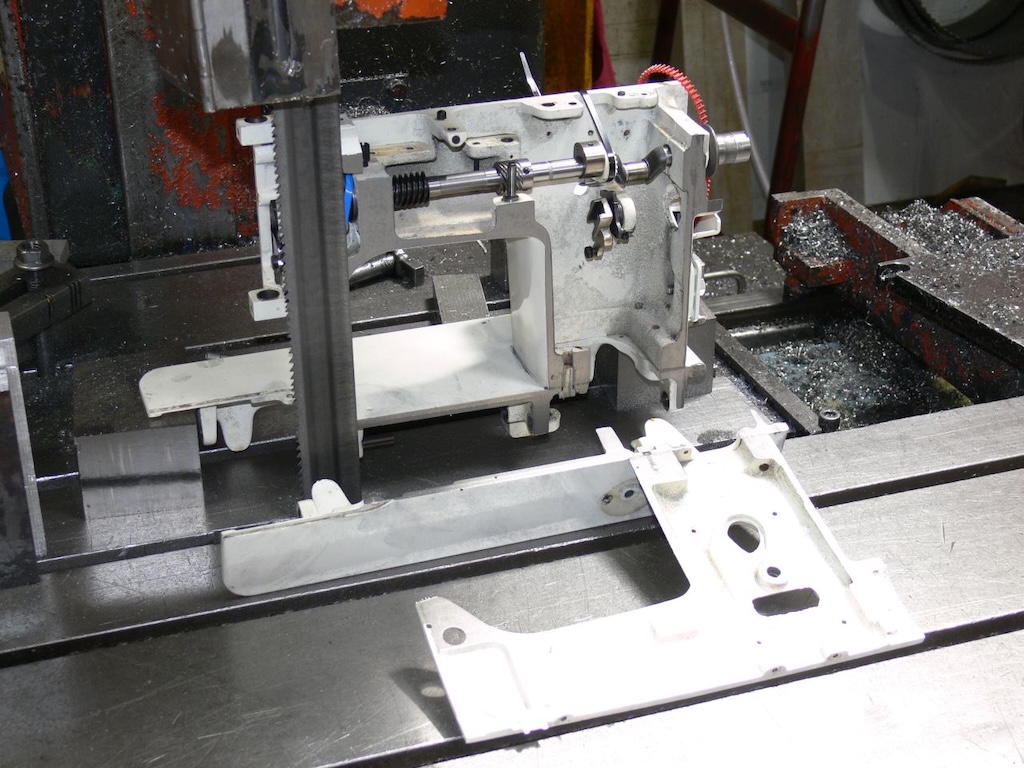

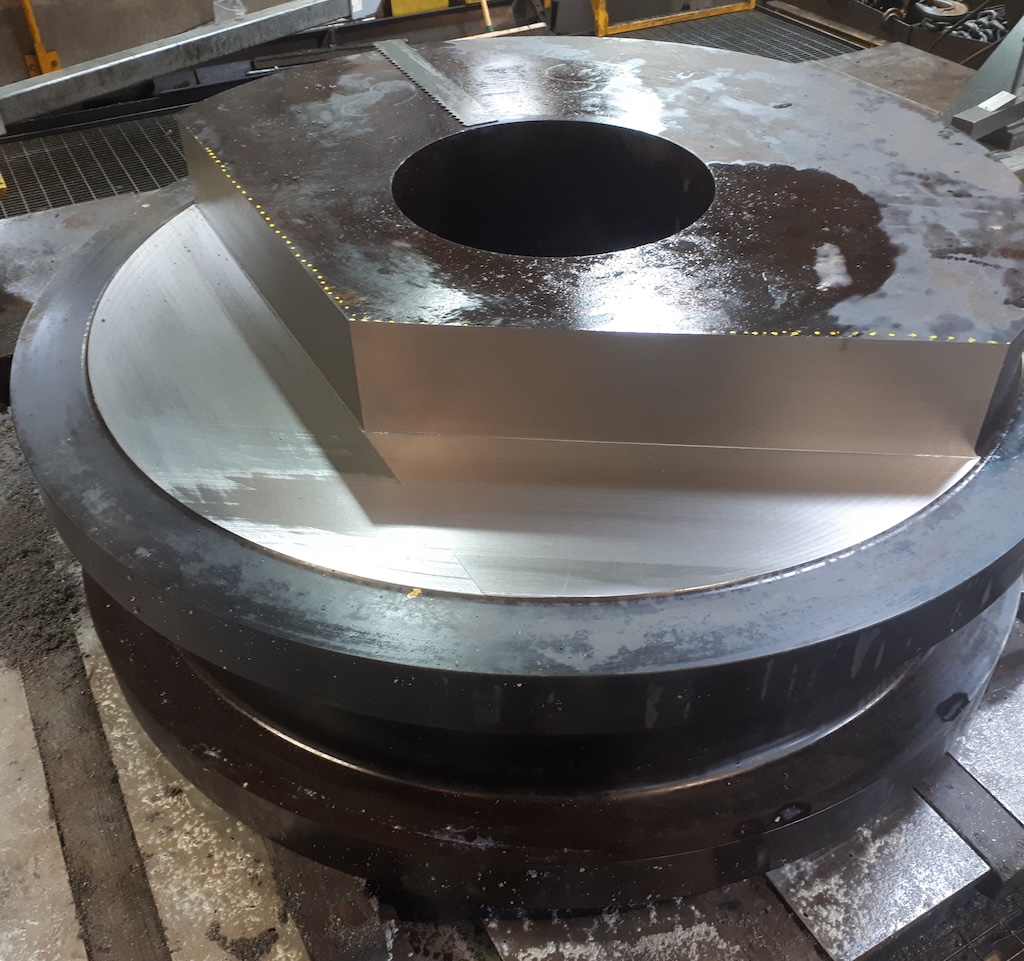

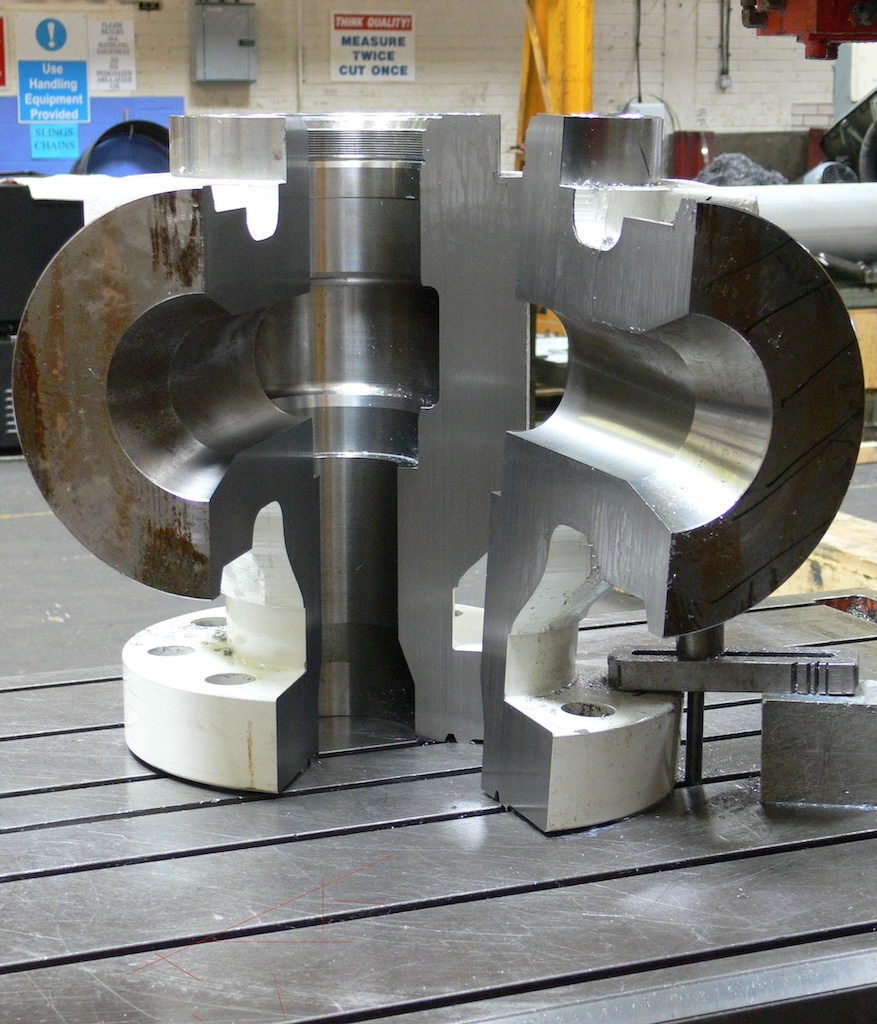

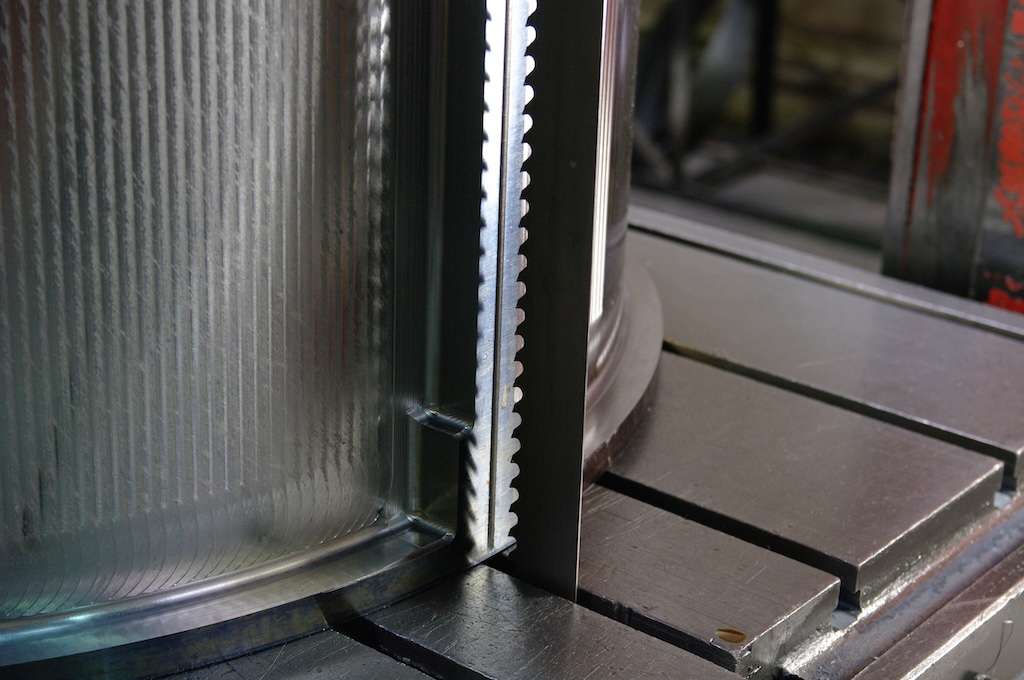

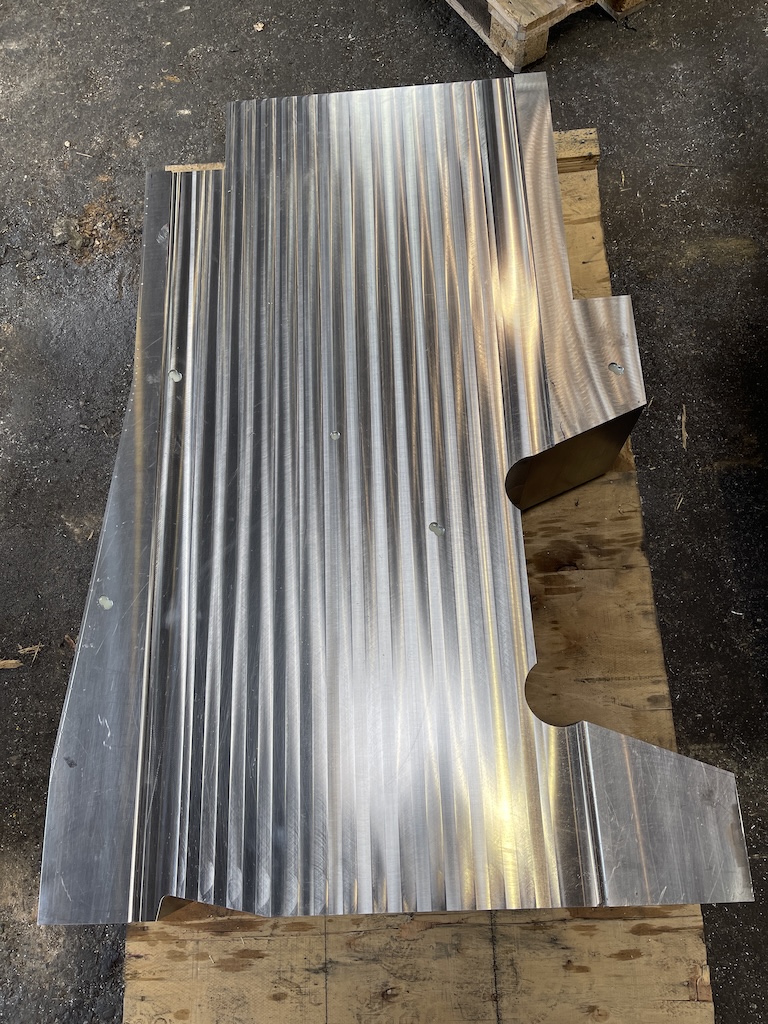

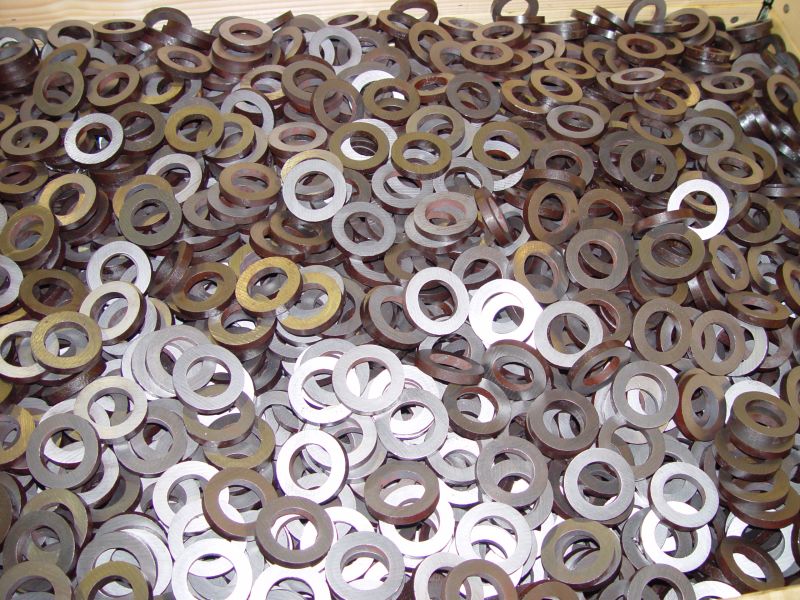

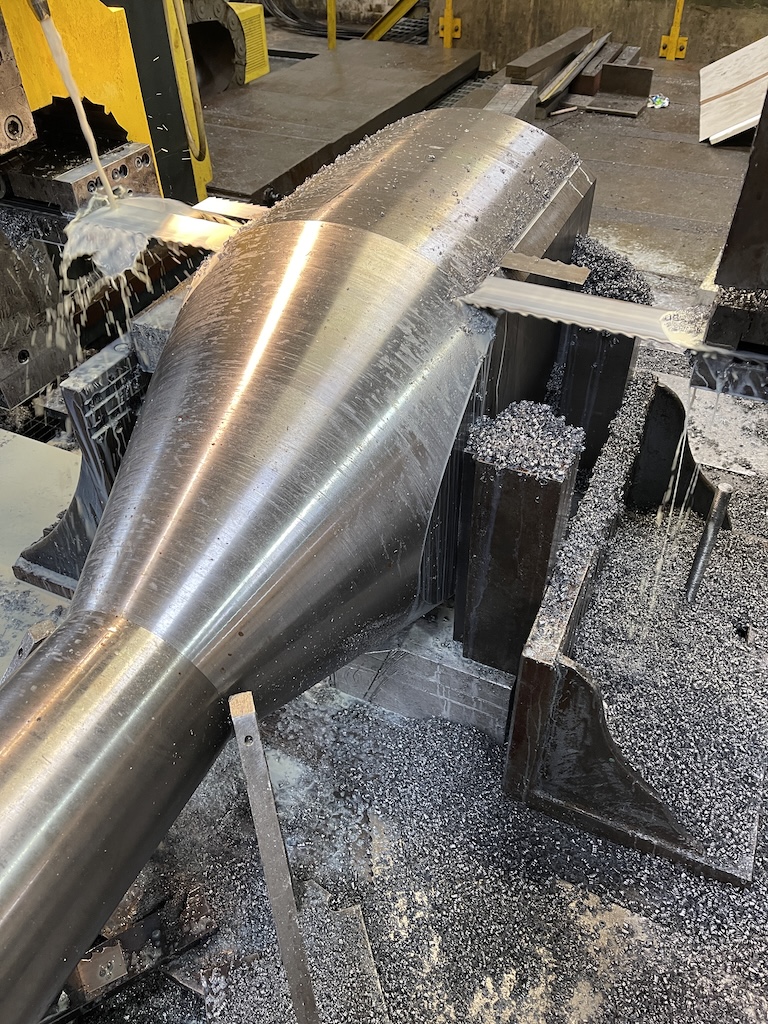

Accurate Cutting Services offer a subcontract sawing service for outsourced or insourced solutions to cutting problems.

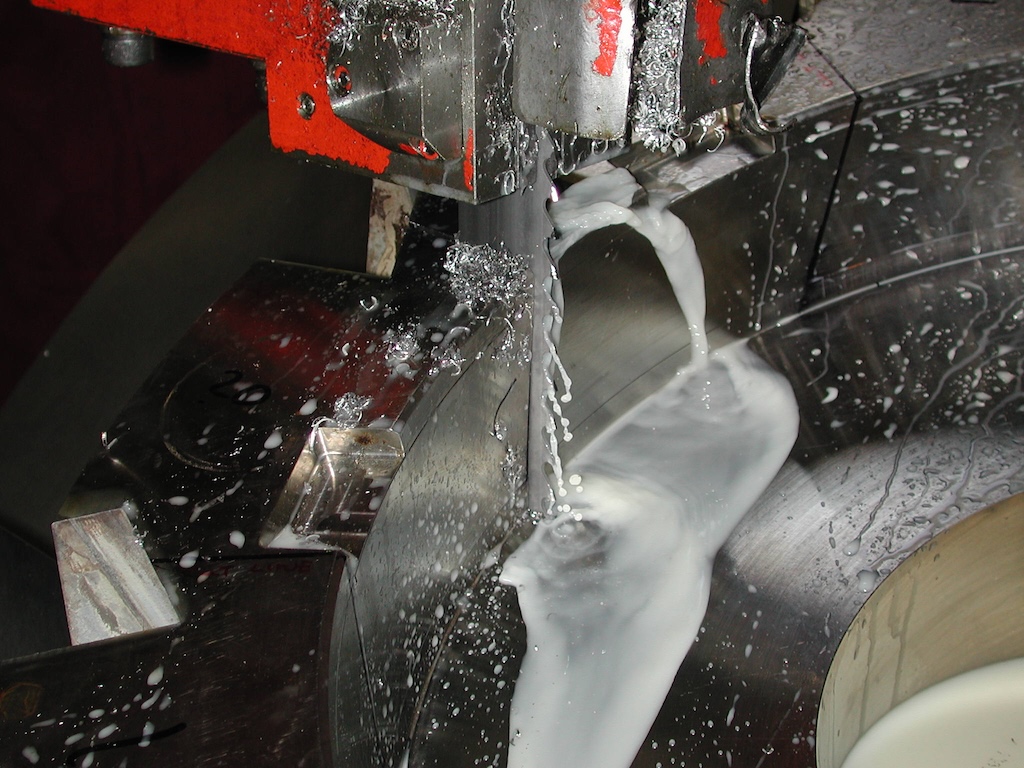

Cutting Fluids
Accurate Cutting Services supply cutting fluids for your cutting equipment.
Saw Sharpening
Accurate Cutting Services provide blade sharpening and grind service for SHSS, HSS, carbide tipped and solid carbide circular saw blades. Retipping and segment repair / replacement also covered.
Machine Sales & Service
Accurate Cutting Services are an official UK distributor for Amada and Pedrazzoli saws.
