Alimak

Alimak SE passenger and freight elevators are designed from the drawing board not only to excel as people carriers in multiple applications, but also to be able to handle materials of loads up to 2,000 kilograms. All Alimak elevators are built to last in the harshest environments.

Alimak Hek has been an industry leader in supplying elevators based on rack & pinion drive technology for more than 50 years. An install base of over 22,000 Alimak Hek rack & pinion solutions across a broad spectrum of industries around the world, has given us a unique and extensive engineering knowledge gained from each individual installation.

The enhanced efficiency delivered by the ALIMAK SE-H TM & SE-H Ex TM goods and passenger elevator series stems in part from the unique modular design of the elevator cars that provides a remarkable 35 different car sizes with floor spaces up to 11.9 m (128 sq. feet). Made of extruded anodized saltwater-proof aluminum and hot dipped galvanized steel, the Alimak SE-H TM elevator car is built to last in the most extreme environments. The elevator has been designed with two mast towers to carry the large elevator car and a sync axis, ensuring that the car always travels straight. Alimak SE-H TM elevator series are push button operated from car and landings and has a modern collective control system with internal fault diagnostics.

This special 3.5 tonne elevator literally pops up from under the street. It is used by the Stockholm Water Company to transport service personnel and replacement parts to a pumping station 4 m below ground.

Four external, panoramic elevators provide access to the eye catching footbridge in London's Docklands. Each car takes 11 passengers and the total height of travel is 14 m.

The typical Alimak cargo elevator has a payload capacity of between 5,000 kg to 12,000 kg. The cargo elevator ensures easy transportation of various heavy duty goods and consignments between different levels. Loading and unloading has never been easier with crane or forklift, since the elevator floor will level with top most landing without permanent equipment above.

The new Alimak FM builds on the experience gained from several installations offshore, which have been given a vote of confidence by customers across the industry.

Passenger and freight traction elevators for tough industrial environments
The Alimak traction elevator series − ALIMAK TR-H is designed and built to perform in the world’s harshest environments. The elevator will improve operational efficiency, give superior HSE performance and reduce maintenance costs in any industrial application. With surface treatment corrosion classification up to C5 and ingress protection rating up to IP65, the new elevators are made for the toughest environments on the planet.

The Ex version − ALIMAK TR-H Ex gains trust from the company’s long term experience in delivering Ex elevators based on rack and pinion drive technology since the first one was delivered to the Kuwait National Petroleum Company in 1975.

Built on the experience gained from thousands of installations worldwide, the latest Explosion proof elevator ALIMAK SE-Ex is designed to deliver on your access requirements for heavy transport needs in hazardous environments. The ALIMAK SE-Ex sets a new benchmark for the safer, efficient vertical transportation of personnel and materials on derricks, hull columns, platform modules, oil refineries, LNG terminals, chemical plants and other similar industrial environments.

Alimak Hek has been an industry leader in supplying elevators based on rack & pinion drive technology for more than 50 years.

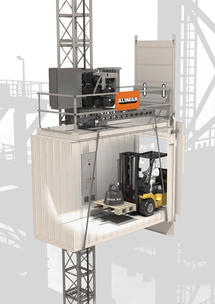

Alimak SE-H passenger and freight industrial elevators are designed from the drawing board not only to excel as people carriers in multiple applications, but also to be able to handle materials of loads up to 3,300 kilograms. All Alimak elevators are built to last in the harshest environments.

The ALIMAK TR traction elevator range is engineered for industrial applications, providing reliable access, anytime and anywhere needed. The elevator is suited to many applications in industries like power plants, mines, cement plants, and oil & gas facilities, as well as factories and warehouses.

Alimak Hek is the name you can trust for reliable, productive, and economical vertical access solutions. Our offering is comprised of industrial elevators based on traction as well as rack and pinion technologies, and a wide range of after sales services. We have a long track record of successfully carrying out projects for EPC companies and end users.

Heis-Tek traction passenger and freight elevators are designed not only to move people, but also to be able to handle materials weighing up to 2,500 kilograms when required. All Heis-Tek elevators are built to last in the most extreme environments.

Heis-Tek elevators have been supplied for the offshore market since 1996. The elevator is the perfect solution for Living Quarters, but also outdoor elevators complete with elevator shaft. Heis-Tek have maintenance agreement with BP, ConocoPhillips and Statoil. More than 1,500 Heis-Tek elevators have been supplied for both offshore and onshore applications.

Heis-Tek traction passenger and freight Ex elevators are designed not only to move people, but also to be able to handle materials weighing up to 10,000 kilograms when required. All Heis-Tek elevators are built to last in the most extreme environments.

Heis-Tek elevators have been supplied for the offshore market since 1996. The elevator is the perfect solution for Living Quarters, but also outdoor elevators complete with elevator shaft. Heis-Tek have maintenance agreement with BP, ConocoPhillips and Statoil. More than 1,500 Heis-Tek elevators have been supplied for both offshore and onshore applications.

With internal car lengths up to 5 m, a width of 2 m and a height of 2.8 m the new Alimak Scando 650 XL surpasses all existing standard construction hoists operating on a single mast.

By using a forklift truck or a board transit bench the loading and unloading of bulky materials can be done easy and ergonomically.

The Alimak Scando 650 XL can be used in single or dual car configuration. Speeds up to 54 metres per minute and capacities up to 3,000 kg can be achieved. For higher speed (up to 100 metres /minute) or capacity, the data will be specified as per actual project demand.

Alimak Scando 450 can be equipped with a frequency control unit (FC), with closed-loop, which gives very smooth starting and stopping with low starting current and less wear and tear.
The Alimak Scando 450 can be used in single or dual car configurations. The hoist car design is truly modular and offers several optional car lengths between 2.0 and 3.2 m and a multiple choice of doors or ramps.

Alimak Scando 650 FC-S, adds true high-speed to the benefits of owning an Alimak Scando 650 hoist. Customers enjoy the increased productivity, which saves time and money.

In addition, the Alimak Scando 650 FC-S has no counter weight, and can use the entire line of modules and additions available for the Alimak Scando 650 family. It can be delivered with standard modules to suit all known project demands for vertical access − from low to extreme high rise buildings.

Driven by a high-efficiency helical gearbox, the ALIMAK SCANDO 65/32 offers increased hoistpower, smooth operation and energy efficiency, with the safety and usability expected of an Alimak hoist. A new design with quality, high-strength materials ensures low energy consumption, improved running efficiency and less wear for low cost of ownership.

The ALIMAK SCANDO 65/32 is designed for passenger and materials transport. Available in single or dual car configuration, the new hoist offers payloads of up to 2,400 kg per cage, and cage size 1.5 x 3.2 m. The hoist is available with either DOL (Direct-on-line) or FC (Frequency Control) drive via a highly efficient helical gearbox system. The gearbox is self-manufactured. A modern microprocessor hoist control system with stopnext- landing control allows for simple operation and ease of use.

Alimak Hek is launching the latest design in tower crane lifting technology, the ALIMAK TCL. Designed for installation on the majority of existing tower crane brands and systems, this new lift maximizes crane utilization by providing reliable and smooth crane cab access. The ALIMAK TCL offers simple external installation, the ability to retrofit with little to no mast modifications, and comfortable and reliable access for crane operators, technicians and maintenance personnel.

It's flexible, robust and simple design makes it suitable for all vertical access, including direct to buildings and scaffoldings, for new construction or for refurbishment work.

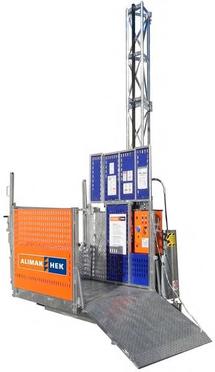

The HEK TPL 500 & 300 is designed to offer the most cost efficient vertical transport solution on site and is delivered in either three phase 500 kg capacity or 300 kg single phase configuration. Each unit has dual functionality, and can be used as either a transport platform (TP) or material hoist (MH).

The result of Alimak Hek research, which is built on the success of the company’s other lightweight models, is a transport platform that can also act as a material hoist. This model is notable for its flexibility, ease of use and robust design, making it highly competitive and ideal for any vertical access application, on buildings and scaffolding, in both new construction and renovation projects.

The new transport platform range meets the specific needs of the market, which demands increasingly high performance machinery − versatile and easy to use, with optimised weight and resistance.

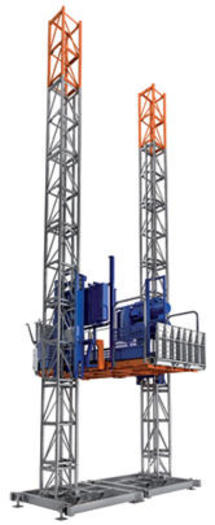

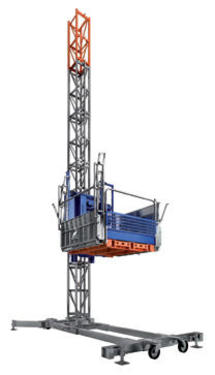

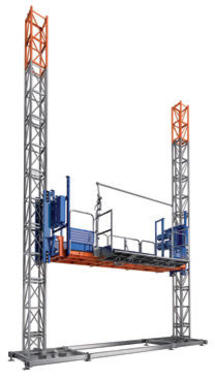

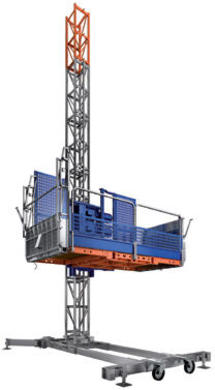

For transporting e.g. palletized and large dimension panels, scaffolding, mini loaders, kitchens and other material for use in the inside and outside of the building, the HEK TPM range is extremely appropriate.

These transport platforms offer additional functions and are very efficient alternative for a conventional material hoist. They can offer two hoisting and descending speeds. Payload capacity vary from 1,300 kg to 4,000 kg and are available in 6 configurations which are assembled with the same basis components like mast, drive unit and platform decks.

For transporting e.g. palletized and large dimension panels, scaffolding, mini loaders, kitchens and other material for use in the inside and outside of the building, the HEK TPM range is extremely appropriate.

These transport platforms offer additional functions and are very efficient alternative for a conventional material hoist. They can offer two hoisting and descending speeds. Payload capacity vary from 1,300 kg to 4,000 kg and are available in 6 configurations which are assembled with the same basis components like mast, drive unit and platform decks.

For transporting e.g. palletized and large dimension panels, scaffolding, mini loaders, kitchens and other material for use in the inside and outside of the building, the HEK TPM range is extremely appropriate.

These transport platforms offer additional functions and are very efficient alternative for a conventional material hoist. They can offer two hoisting and descending speeds. Payload capacity vary from 1,300 kg to 4,000 kg and are available in 6 configurations which are assembled with the same basis components like mast, drive unit and platform decks.

For transporting e.g. palletized and large dimension panels, scaffolding, mini loaders, kitchens and other material for use in the inside and outside of the building, the HEK TPM range is extremely appropriate.

These transport platforms offer additional functions and are very efficient alternative for a conventional material hoist. They can offer two hoisting and descending speeds. Payload capacity vary from 1,300 kg to 4,000 kg and are available in 6 configurations which are assembled with the same basis components like mast, drive unit and platform decks.

For transporting e.g. palletized and large dimension panels, scaffolding, mini loaders, kitchens and other material for use in the inside and outside of the building, the HEK TPM range is extremely appropriate.

These transport platforms offer additional functions and are very efficient alternative for a conventional material hoist. They can offer two hoisting and descending speeds. Payload capacity vary from 1,300 kg to 4,000 kg and are available in 6 configurations which are assembled with the same basis components like mast, drive unit and platform decks.

The HEK MC 450 is the next generation of strong, robust and quality mast climbing work platforms supplied by the Alimak Hek Group. This new model offers the best ratio of performance and quality for global use in the light and medium range of applications.

Hek mast climbing work platforms can lift all types of load and position them to the nearest centimetre. Heavy tools and materials are then always within reach. Furthermore, working on a Hek mast climbing work platform is made easy, because there are no scaffold poles to get in the way. As a result, the whole operation is both visible and reliable at all times.

In modern architecture, facades come in all shapes and sizes. Angular, staggered, overhanging or receding. In addition, glazing and coating systems are often employed in very large formats, in such materials as aluminium and natural stone.

For situations of this kind, the HEK MCM serie offers a flexible workspace which is safe, clear and stable! With payload capacities from 2,040 kg to 5,150 kg with platform dimensions vary from 2.9 m to 32.6 m.

In modern architecture, facades come in all shapes and sizes. Angular, staggered, overhanging or receding. In addition, glazing and coating systems are often employed in very large formats, in such materials as aluminium and natural stone. For situations of this kind, the HEK MCM serie offers a flexible workspace which is safe, clear and stable! With payload capacities from 2,040 kg to 5,150 kg with platform dimensions vary from 2.9 m to 32.6 m.
