Cetronic Power Solutions Ltd

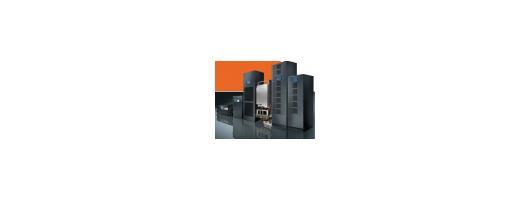

Here at Cetronic we have been supplying, installing and maintaining uninterruptible power supply (UPS) systems throughout the UK for over 50 years. We are an ISO 9001 certified company that also holds accreditation by SafeContractor and Constructionline. We supply a number of uninterruptible power supplies utilising a number of technologies. These include UPS systems ranging from 400VA to 800KVA, in single modules and parallel models. We also offer N+1 UPS models up to 6.4MVA. We are a Riello UPS Authorised Reseller and Riello UPS UK Service Partner. Our single phase output uninterruptible power supply (UPS) models range from 400VA to 100KVA, while three-phase UPS and data centre UPS systems can provide power up to 800KVA in a single unit. These uninterruptible power supply units can also be parallel connected should you be looking for more power or resilience in your UPS infrastructure.

Constant Voltage Transformers (CVT) 250VA to 45KVA

Constant voltage transformers (CVT’s) use the ferro-resonant principle to provide a stable output voltage free from impulses, spikes and harmonics. They have an extremely rugged and robust design and are particularly suited to harsh environments. Requiring little or no maintenance the CVT is an ideal solution for the protection of voltage sensitive equipment in industrial applications.

The CVT provides a stable output voltage with an instantaneous correction to input voltage fluctuations. This power conditioner provides a sinusoidal output waveshape even when the input waveform is very distorted and will stop load current harmonics being reflected onto the mains supply.

Galvanic isolation together with the rugged and robust design make the ferro-resonant transformer an ideal solution for industrial applications.

110/230/400V 50Hz and 60Hz models are available from stock

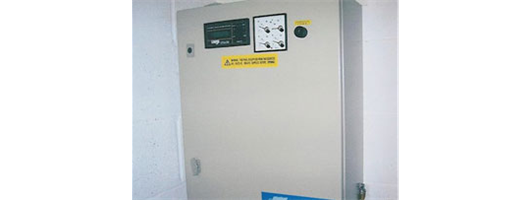

Servo-Controlled AC Stabilisers 1KVA to 5,000KVA

- Single and Three Phase Models
- Negligible Waveform Distortion
- Output Voltage Accuracy to ±0.5%
- Input Voltage Range up to ± 40%
- Efficiency >98%
- Spike Suppression as Standard (MOV)
- Soft Start/Transient Suppression/Metering and many other options available

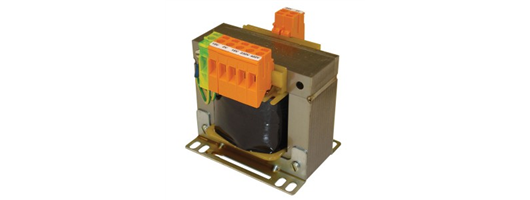

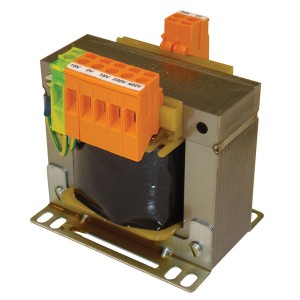

Electrical power transformers and wound components such as: AC/DC Reactors and Chokes that meet customer specifications or requirements whilst conforming to British and/or international standards.

The Cetronic range includes single and 3 phase air-cooled, dry type and oil cooled transformers up to 1250KVA. The transformers can be supplied open (without enclosure) or enclosed in various housings to meet the IP rating required.

Single phase control panel transformers are available from stock whilst other transformers or reactors are usually delivered in 1 − 2 weeks of order dependant on size and quantity.

All units can be fitted with a wide choice of accessories including input and output plugs/sockets and output protection devices

Maintaining electrical power to your mission critical applications is paramount to keeping your IT systems running. Although uninterruptible power supplies are an important part of your electrical infrastructure, what would happen if the UPS output failed! The ability to switch seamlessly from one power source to another is required to keep your systems running smoothly.

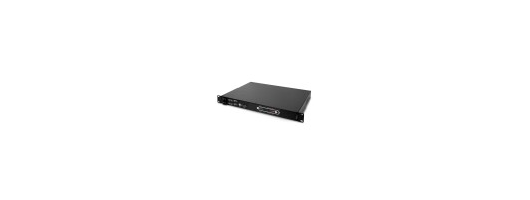

Static transfer switches provide ultra-fast switching between two synchronised input power sources, offering virtually uninterrupted power to your electronic equipment. A static transfer switch allows maintenance of power sources without the need to shut down critical equipment.

These static transfer switches can be set to use source A or B as the primary supply for the critical load, on failure of the selected source the load will be transferred automatically to the alternative source. When the primary source returns, the load will be seamlessly re-transferred to the primary supply.

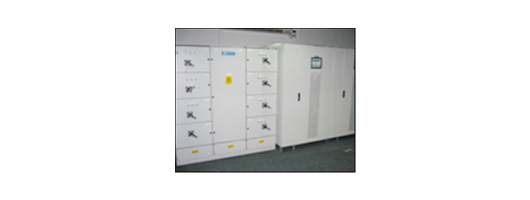

Single and three phase systems with 3 or 4 pole switching are available with power ratings from 16A to 800A, having manual bypass mechanisms and an LCD screen providing status, metering and alarm information.

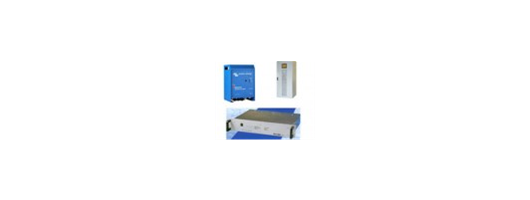

AC to DC rectifiers and chargers in modular, wall mount or 19” rack mount enclosures. These systems can be used as a power supply, battery charger or (when combined with batteries) as a DC UPS (uninterruptible power supply). When used as a DC UPS, low battery voltage disconnect (LVD) circuitry is also included.

DC to AC sinewave output inverters in modular, stand-alone or 19” rack mount enclosures.

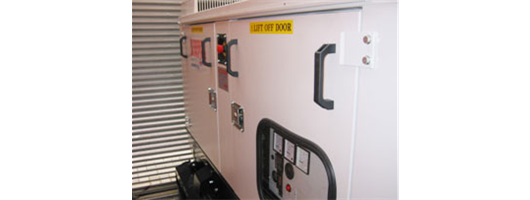

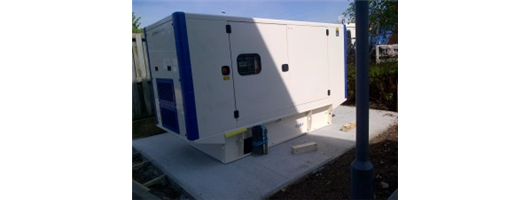

Silent Diesel Generators

Diesel Generator sets to provide Standby and Prime Power.

Diesel powered generator sets are still the primary choice for standby and emergency power systems. Whereas a UPS provides continuous no-break power to the critical load or data centre for a period of time specified by the capacity of the associated batteries. A generator when installed with an auto-start/change-over panel can sense a power failure, start the generator and power the load within 10-20 seconds. The generator will then run for as long as it has fuel. They offer rugged dependability and reliable mechanical and electrical performance.

Zig-Zag
- Reduction of 3rd harmonics, especially on the neutral.
- Improve power factor
- Reduce Losses

K Rated
- Reduction of 5th and 7th harmonics

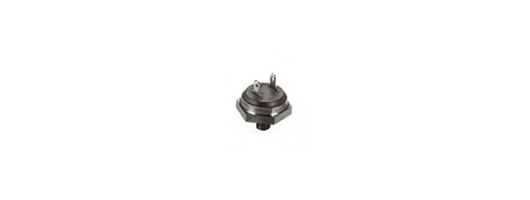

Industrial Precision Thermostats

COMEPA offer a complete line of “THERMOPA” bimetallic thermostats covering the needs of the industrial, military and aerospace markets.

COMEPA manufactures and markets a complete line of standards thermostats as well as specific “customised” products.

A diversity of connections and a choice of fixings are available. Thermostats with switching capacities between 1A to 16A and operating temperatures of between -50°C to 260°C.

A hermetically sealed model is also available.

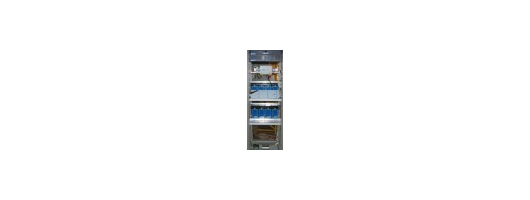

Battery Backed Power Supply

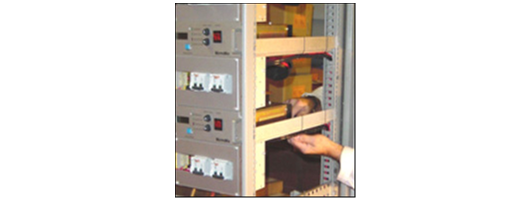

A variety of AC, DC and battery systems are built in our facility. System integration using standard products is by far the most cost effective solution.

We pride ourselves on supplying products, services and support; all designed to give our customers the optimum solution for business continuity, power protection and uninterrupted power.

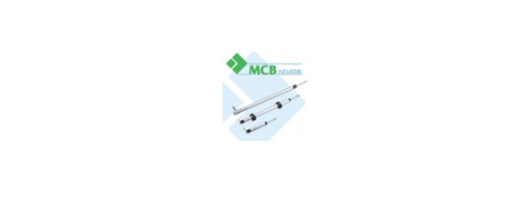

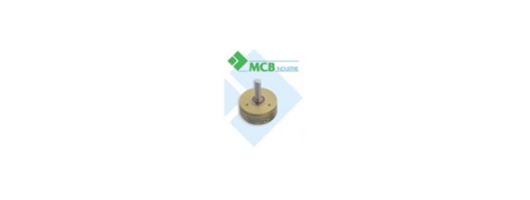

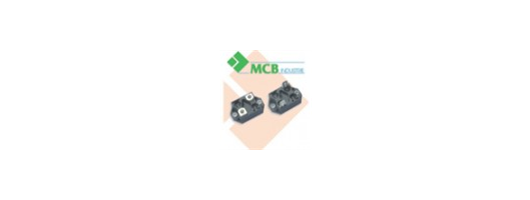

Rotary & Linear

Potentiometers & Position Sensors

MCB Industrie position sensors combine:

High resolution and linearity
Extended life time
Resistance to severe environment (corrosive agents, sealing)
Mechanical resistance (shock, vibration)

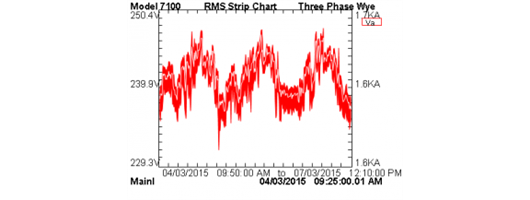

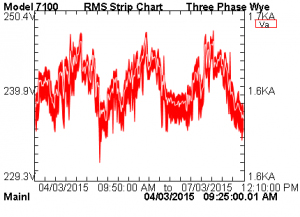

Power Monitoring Surveys and Services

Cetronic have been providing nationwide on-site power monitoring surveys for over 30 years. We cover the entire UK monitoring the power to any particular device, room, floor, building or site.

Our power monitoring surveys analyse the electrical power on single phase or three phase systems over a period of time, often a week or more. Our power monitoring surveys are tailored to focus on a particular area of concern, be it graphical power consumption (load profile), power harmonics and disturbance analysis.

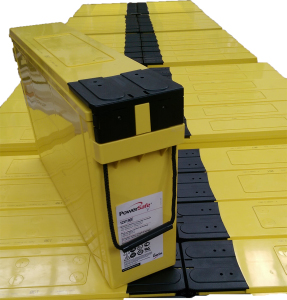

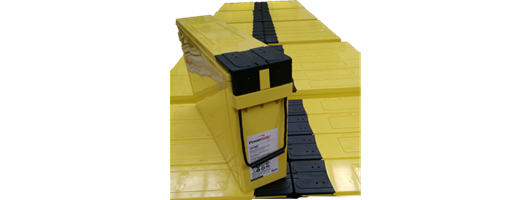

UPS Battery Installation

The batteries are critical to the integrity of your UPS system. Most modern UPS systems will perform and monitor short battery tests on a regular basis, however it is also essential to maintain these systems to ensure they will operate correctly when needed.

Cetronic can supply, install, maintain or replace a wide variety of batteries, the most common being sealed lead acid (VRLA) with a 5 or 10 year design life, some conforming to BS6290 pt4.

Cetronic is a hazardous waste registered company, allowing for correct disposal and recycling of old batteries.

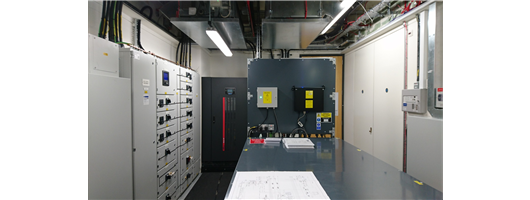

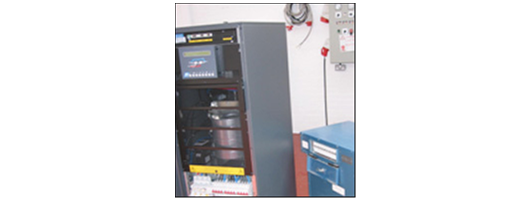

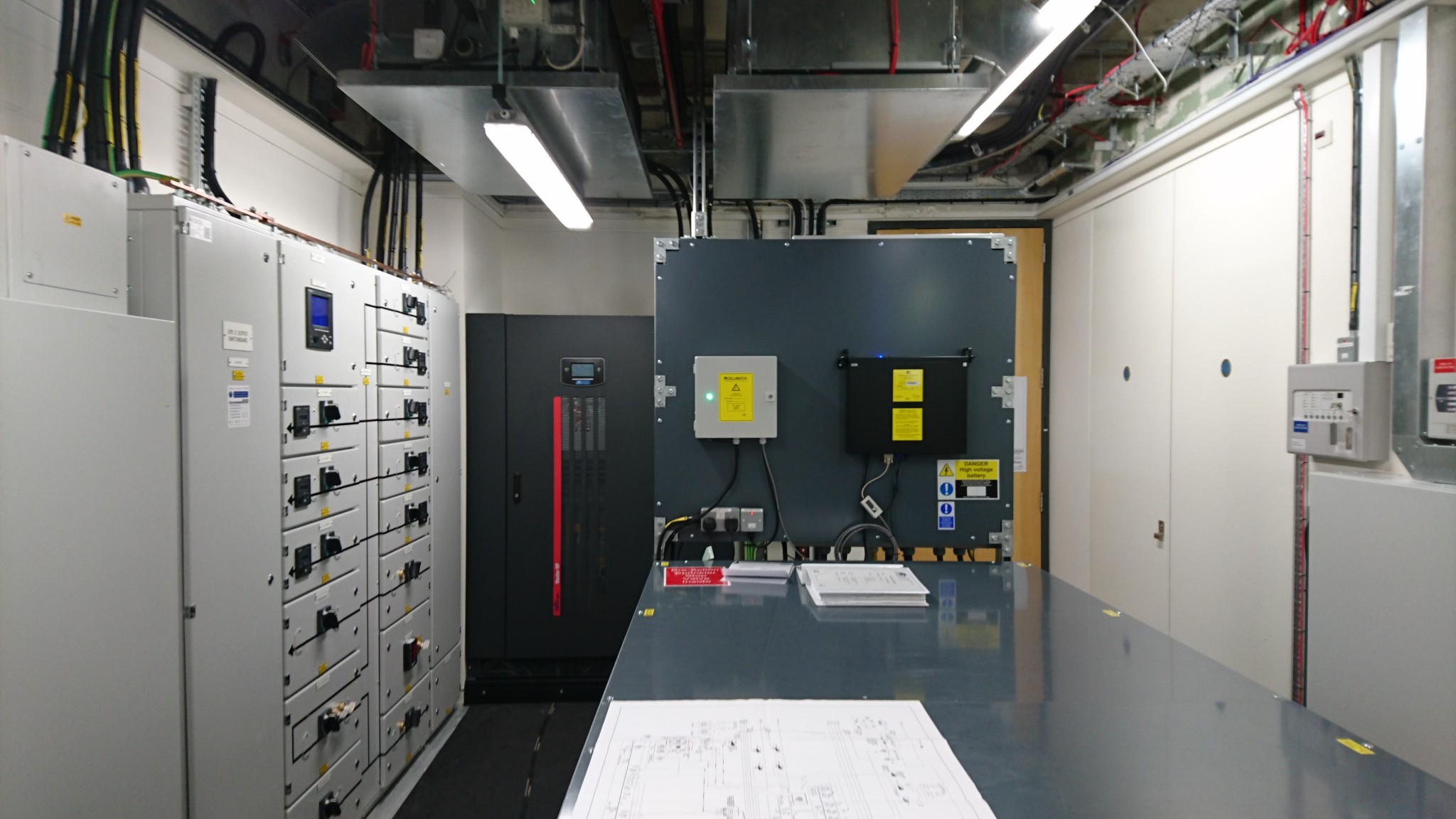

Cetronic power solutions can provide an installation service for your UPS, generator and manual bypass control panels complete with all the necessary switchgear and distribution panels for both new and existing systems.

All work is subject to quotation following a site survey. All electrical installations are certified to NICEIC standards.

The ethos of Cetronic Power Solutions is to provide a first-rate service, which exceeds customer expectation.

We pride ourselves on supplying products, services and support; all designed to give our customers the optimum solution for business continuity, power protection and uninterrupted power.

The services we offer include:

Installation
Site Surveys
Battery Builds
Repair
Commissioning
Relocation
Operation and Load Testing
Battery Replacement and Disposal
Maintenance Contracts
System Health Checks
Emergency Call-Out Facility
Battery Impedence Testing

The ethos of Cetronic Power Solutions is to provide a first-rate repair, build and test service, which exceeds customer expectation.

We pride ourselves on supplying products, services and support; all designed to give our customers the optimum solution for business continuity, power protection and uninterrupted power.

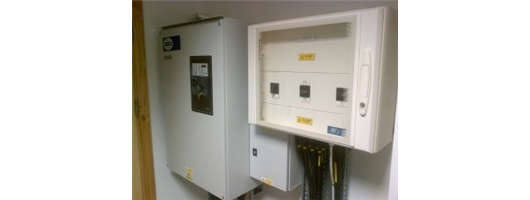

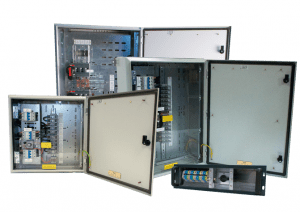

A bypass switch is an essential component to use in conjunction with an uninterruptible power supply (UPS) system. It is particularly useful during maintenance or repair work on the UPS system. If you are uncertain about the maintenance or repair of your UPS system and what actions are taken by engineers, or if you are not sure if it is necessary for you, it might be helpful to consult with a professional.

In order to ensure protection during power outages, two key components are required: a UPS system and a backup battery. However, in the event of a major malfunction or the need for repair, a bypass switch serves as an important safeguard. It guarantees the uninterrupted flow of power while engineers attend to the UPS system, making sure that there are no interruptions in power continuity.

Voltage stabilisers are electrical systems installed between the raw mains and the protected load, designed to deliver a constant voltage to the load at its output terminals when the input voltage fluctuates. They provide a stable output voltage and also protect equipment against spike and surges.

The Riello UPS Sentryum S3M Series is the development of the XTEND, ACTIVE and COMPACT models from the Sentryum range. This innovative UPS has been developed from the feedback from customers, bringing simplicity to maintenance and further running cost reduction. Making this series the latest development Riello UPS has to offer to benefit small-scale to large-scale power protection requirements 60kVA-120kVA. Contact Us Now for more information or quotes on the Riello UPS S3M Sentryum.

Cetronic Power Solutions is your trusted partner in safeguarding emergency lighting systems to meet compliance standards and ensure the safety of occupants in buildings and facilities across the UK.

Why Emergency Lighting Power Protection Matters

Emergency lighting is a critical component of building safety, providing lighting for visibility during power outages or emergencies to guide occupants to safety. However, without reliable power protection solutions, emergency lighting systems may fail, compromising safety and regulatory compliance.
