Company details for:
CST Automation Ltd
(3)
0161...
Unit 14 Crown Business Centre,
George Street ,
Failsworth,
Manchester,
Lancashire,
M35 9BW,
United Kingdom
Quick Links:
Products / Services

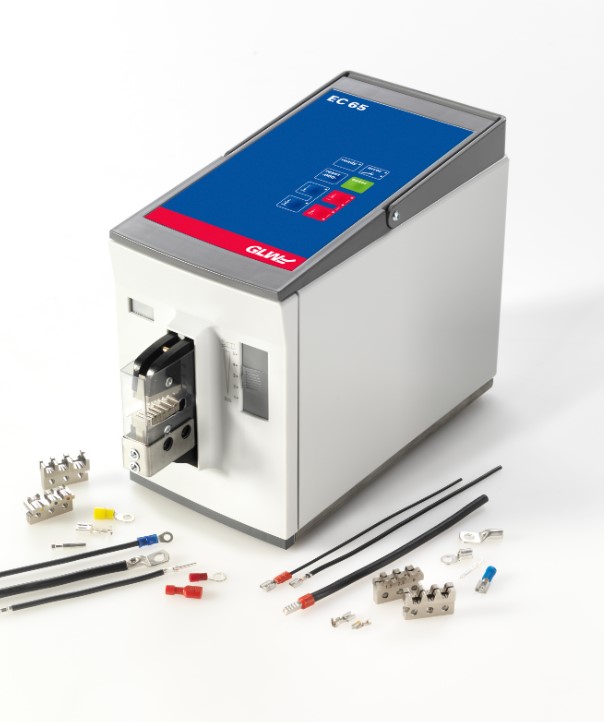

GLW EC65 Crimping Machine
The EC 65 is compact and lightweight, yet rugged enough for the factory floor. It is well suited for complex cable harness assemblies.
The EC 65 is an ideal device to securely crimp wires and cable terminals such as:
Insulated cable lugs to 6 mm 2 / 10 AWG
Tubular cable lugs, solderless terminals to 10 mm 2 / 8 AWG
Flat tab terminals to 6 mm 2 / 10 AWG
Wire end sleeves to 50 mm 2 / 1 AWG
The EC 65 can be operated in one of two modes.
Mode 1: controls the entire crimp process by pressing down the pedal switch.
Mode 2: allows the user to fix the terminal on the cable by actuating the foot switch once. To finish the crimping process, he presses down the foot switch once again. Mode 2 is used for more complex terminals.
The onset of compression force can be adjusted for each new terminal to satisfy crimp integrity. That way, damage to dies and terminals can be minimised.
Simply press a button to select the opening for each die.
Since some female terminals are more difficult to crimp, a moveable locator can be utilised to ensure proper crimping.
Various standard dies are available, as well as dies designed to customer specifications.
Accessories: Locator for crimping female disconnects / Its carrying handle converts the EC 65 into a portable crimping tool.
The EC 65 is an ideal device to securely crimp wires and cable terminals such as:
Insulated cable lugs to 6 mm 2 / 10 AWG
Tubular cable lugs, solderless terminals to 10 mm 2 / 8 AWG
Flat tab terminals to 6 mm 2 / 10 AWG
Wire end sleeves to 50 mm 2 / 1 AWG
The EC 65 can be operated in one of two modes.
Mode 1: controls the entire crimp process by pressing down the pedal switch.
Mode 2: allows the user to fix the terminal on the cable by actuating the foot switch once. To finish the crimping process, he presses down the foot switch once again. Mode 2 is used for more complex terminals.
The onset of compression force can be adjusted for each new terminal to satisfy crimp integrity. That way, damage to dies and terminals can be minimised.
Simply press a button to select the opening for each die.
Since some female terminals are more difficult to crimp, a moveable locator can be utilised to ensure proper crimping.
Various standard dies are available, as well as dies designed to customer specifications.
Accessories: Locator for crimping female disconnects / Its carrying handle converts the EC 65 into a portable crimping tool.
GLW MC25 Crimping Machine
With its 12 kg, MC 25 is a very lightweight tool, and thanks to its carrying handle it can be moved easily between different job sites.
It does not require pressurized air, but only a 230 V mains connection.
It takes only 1.5 seconds to crimp and strip the insulation.
The MC 25 processes wire end sleeves with a cross section of 0.5 to 2.5 square millimeters and a standard length of 8 mm.
You can change the applicatior for the diameter of the sleeves in a matter of seconds without any additional tools. Just snap it in and off you go!
All applicators are clearly arranged in a kit that comes with the crimper.
Reliable operation thanks to an advanced microprocessor-controlled cam drive.
The stripping unit is fitted with V-blades. It can be used for most commercially available conductors.
Tape-mounted wire end sleeves are fed into the machine via a dispenser fitted to its right side.
It does not require pressurized air, but only a 230 V mains connection.
It takes only 1.5 seconds to crimp and strip the insulation.
The MC 25 processes wire end sleeves with a cross section of 0.5 to 2.5 square millimeters and a standard length of 8 mm.
You can change the applicatior for the diameter of the sleeves in a matter of seconds without any additional tools. Just snap it in and off you go!
All applicators are clearly arranged in a kit that comes with the crimper.
Reliable operation thanks to an advanced microprocessor-controlled cam drive.
The stripping unit is fitted with V-blades. It can be used for most commercially available conductors.
Tape-mounted wire end sleeves are fed into the machine via a dispenser fitted to its right side.

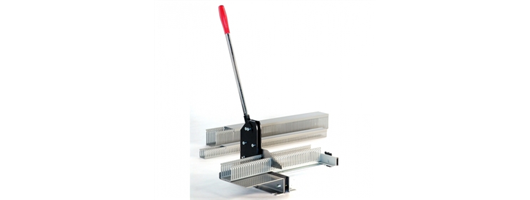

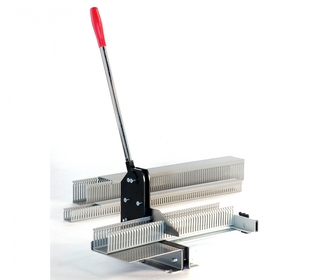

GLW DC125 Duct Cutter
- The DC 125 cuts wiring ducts with angular precision, burr-free. No rework is required.
- Your workplace remains clean at all times because no chips are produced when cutting.
- DC 125 operates silently and without emissions.
- Thanks to its optimised cam drive, the force required for cutting wire ducts is low.
- A 1 m long scale with length stop ensures cutting exactly true to length.
- The hardened cutting blade has a cutting width of 125 mm.
- A folding blade guard ensures safe operation.
- The DC 125 has been TÜV-tested.
- Your workplace remains clean at all times because no chips are produced when cutting.
- DC 125 operates silently and without emissions.
- Thanks to its optimised cam drive, the force required for cutting wire ducts is low.
- A 1 m long scale with length stop ensures cutting exactly true to length.
- The hardened cutting blade has a cutting width of 125 mm.
- A folding blade guard ensures safe operation.
- The DC 125 has been TÜV-tested.

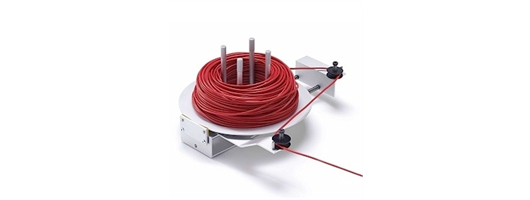

GLW DR 30K Cable Dereeler
The DR30k Dereeler has been specially designed for small reels of wire and coils of tubing. It's simple yet effective design allows it to be used with bench top cutting & cut/strip machines that feed from left to right or right to left.
The DR30k is an useful supplement to the Cross Cutting Machine LC 100 and makes wire feeding easier for both loose hanks or reel mounted cable
Smooth acceleration and deceleration of the rotary mounting plate is achieved by running the cable around a spring mounted pulley.
This also provides constant tension to prevent twisting or slippage at the clutter unit.
Quick reel change is possible as the reel and plate can be replaced together.
A reel and plate holder makes cable storage easy and convenient.
The DR30k is an useful supplement to the Cross Cutting Machine LC 100 and makes wire feeding easier for both loose hanks or reel mounted cable
Smooth acceleration and deceleration of the rotary mounting plate is achieved by running the cable around a spring mounted pulley.
This also provides constant tension to prevent twisting or slippage at the clutter unit.
Quick reel change is possible as the reel and plate can be replaced together.
A reel and plate holder makes cable storage easy and convenient.

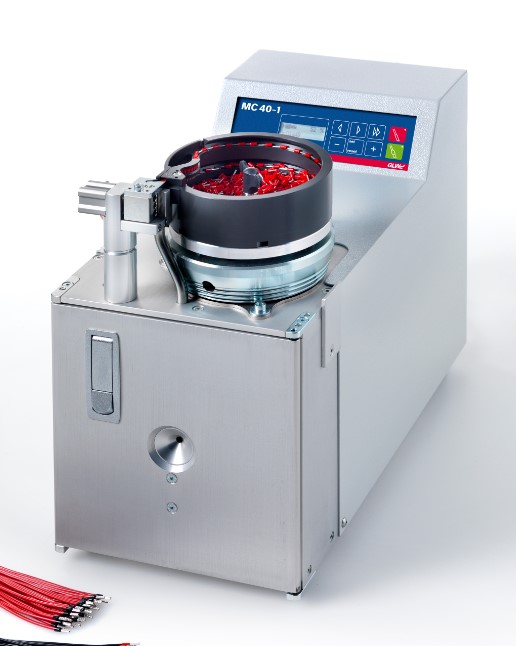

GLW MC40-1 Automatic Stripper & Crimper
Our electro-pneumatically controlled automatic stripper and crimper MC 40 efficiently processes loose wire end sleeves with plastic collars.
The standard version comes with crimping tools with cross-sections of 0.5/0.75/1.0/1.5 mm 2 and a sleeve length of 8 mm.
Stripping and crimping takes place in one operation.
It just takes a few seconds to set it to the desired cross-section.
Extension sets are available for processing cross-sections of 0.25/0.34/2.5/4 mm². All variable parameters can be set automatically and correctly when changing the crimping insert.
Thanks to its modular design and its maintenance and wear-free components, the unit is extremely reliable.
The standard version comes with crimping tools with cross-sections of 0.5/0.75/1.0/1.5 mm 2 and a sleeve length of 8 mm.
Stripping and crimping takes place in one operation.
It just takes a few seconds to set it to the desired cross-section.
Extension sets are available for processing cross-sections of 0.25/0.34/2.5/4 mm². All variable parameters can be set automatically and correctly when changing the crimping insert.
Thanks to its modular design and its maintenance and wear-free components, the unit is extremely reliable.

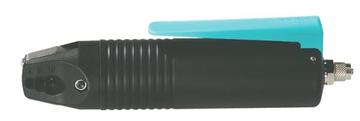

AC25 Pneumatic Crimper
The AC 25 is lightweight and easy to use.
The crimping mechanism is easily activated, making it perfectly suited for work in control cabinets and electrical equipment.
Crimp range:
0,25−2,5 mm² / 24−14 AWG
Weight: 400 g
Dimensions: Ø 44 x 200 mm
Incl. spiral hose: 2 m
The crimping mechanism is easily activated, making it perfectly suited for work in control cabinets and electrical equipment.
Crimp range:
0,25−2,5 mm² / 24−14 AWG
Weight: 400 g
Dimensions: Ø 44 x 200 mm
Incl. spiral hose: 2 m
S20105RD Ferrule Slide Box
Insulated Ferrule Slide Box
0.25 x 6mm - 50 Pieces
0.34 x 6mm - 50 Pieces
0.5 x 8mm - 50 Pieces
0.75 x 8mm - 50 Pieces
1.0 x 8mm - 50 Pieces
0.25 x 6mm - 50 Pieces
0.34 x 6mm - 50 Pieces
0.5 x 8mm - 50 Pieces
0.75 x 8mm - 50 Pieces
1.0 x 8mm - 50 Pieces

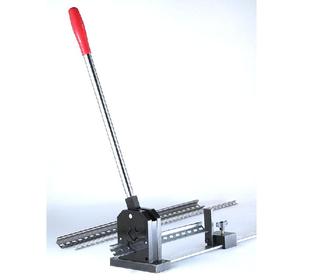

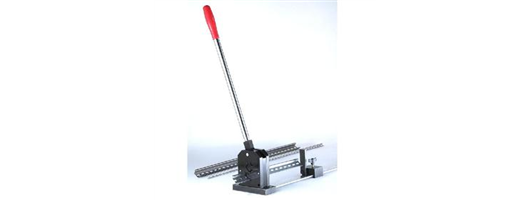

GLW RC300 Din Rail Cutter
- RC 300 is used for cutting to length DIN rails sizes TH 15-5.5, TH 35-7.5 and TH 35-15 x 1.5.
- DIN rails can be cut to the desired length quickly and without burr. Thanks to its optimally designed lever ratio, RC 300 requires little force, so anyone can operate it.
- Because of the 1 m long scale, with length stop, the DIN rails can be cut exactly true to length.
- The cutting edges are correctly angled, and no subsequent machining is required.
- DIN rails can be cut to the desired length quickly and without burr. Thanks to its optimally designed lever ratio, RC 300 requires little force, so anyone can operate it.
- Because of the 1 m long scale, with length stop, the DIN rails can be cut exactly true to length.
- The cutting edges are correctly angled, and no subsequent machining is required.
GLW CS60 Stripping Machine
The current settings are shown on a large display and the clear graphics enable intuitive operation.
The setting knobs are clearly positioned on the front panel.
Short feed-in lengths and a clearly visible working area facilitate fast, effortless work.
The clamping force is automatically adjusted to the necessary stripping force. This prevents indentations on sensitive insulations.
Specially shaped stripping blades guarantee reliable wire stripping.
The on-screen counter gives a visual display of how many pieces that have been processed.
The carrying handle allows the CS 60 to be transported
The setting knobs are clearly positioned on the front panel.
Short feed-in lengths and a clearly visible working area facilitate fast, effortless work.
The clamping force is automatically adjusted to the necessary stripping force. This prevents indentations on sensitive insulations.
Specially shaped stripping blades guarantee reliable wire stripping.
The on-screen counter gives a visual display of how many pieces that have been processed.
The carrying handle allows the CS 60 to be transported

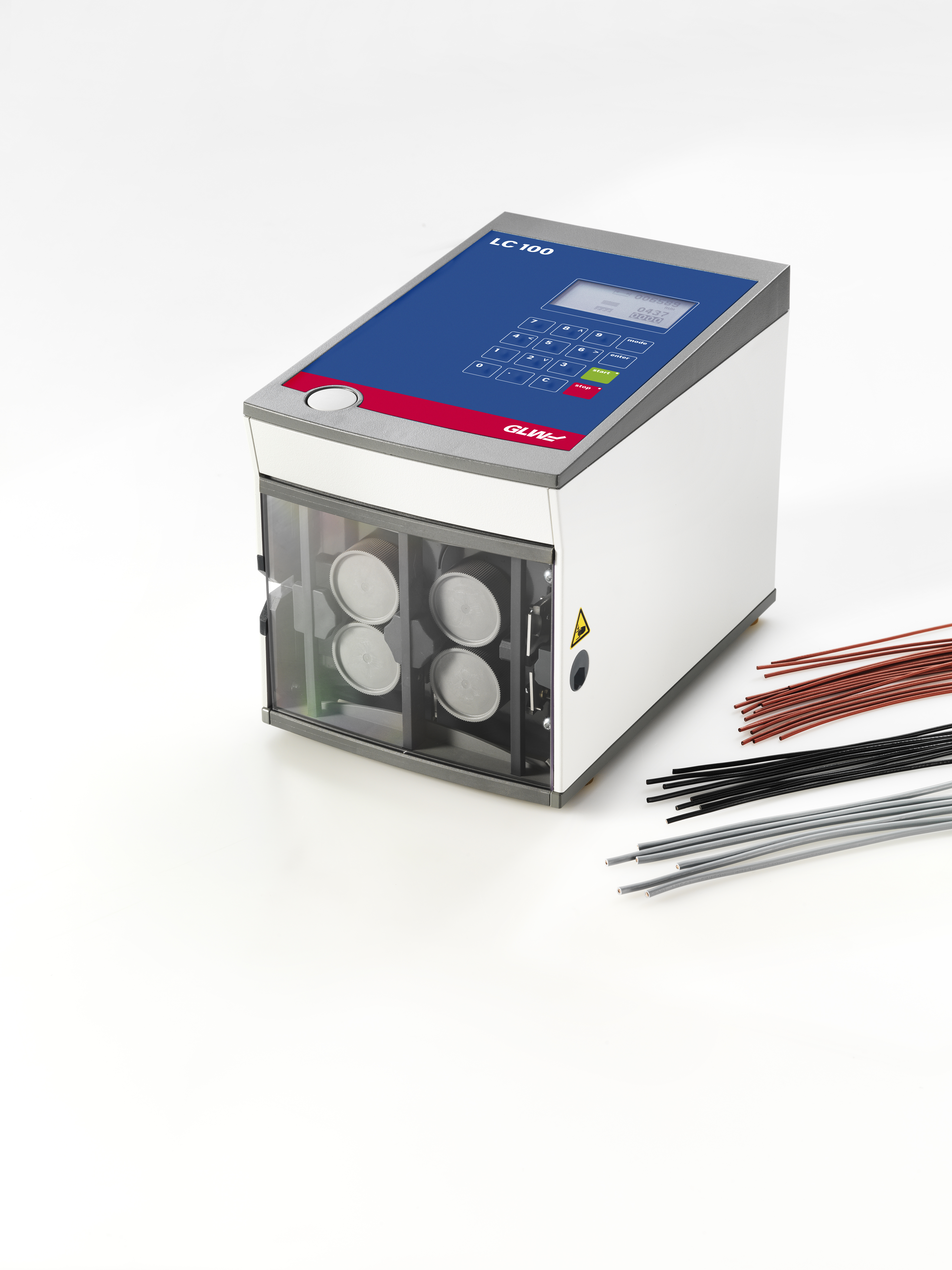

GLW LC100 Cable Cutting Machine
The LC 100 is optimally suited for both, short runs and production runs thanks to its simple operation rugged design.

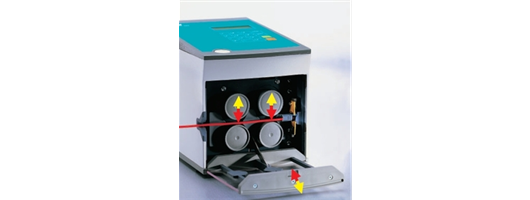

Two driven transport rollers and separately running measurement rollers guarantee precise cutting length.
A material change could not be simpler. As the front flaps swivel down, the drive and measurement rollers are automatically moved away from each. The material being cut is inserted and when the front flap closes, the driven and measurement rollers position themselves automatically.
For cutting sensitive materials, the application force of the drive roller can be readjusted.
With the software supplied with each LC 100 it is possible to process and document repeat cutting orders directly on the PC and to transfer them to the LC 100.
Two driven transport rollers and separately running measurement rollers guarantee precise cutting length.
A material change could not be simpler. As the front flaps swivel down, the drive and measurement rollers are automatically moved away from each. The material being cut is inserted and when the front flap closes, the driven and measurement rollers position themselves automatically.
For cutting sensitive materials, the application force of the drive roller can be readjusted.
With the software supplied with each LC 100 it is possible to process and document repeat cutting orders directly on the PC and to transfer them to the LC 100.

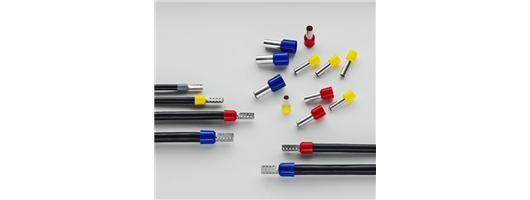

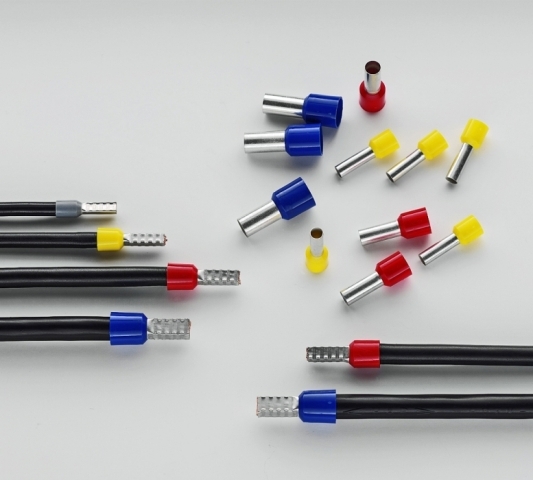

GLW Bootlace Ferrules
We have a wide range of ferrules including Insulated, Uninsulated, Tri-Rated, Tape Mounted, Strip and Twin Ferrules

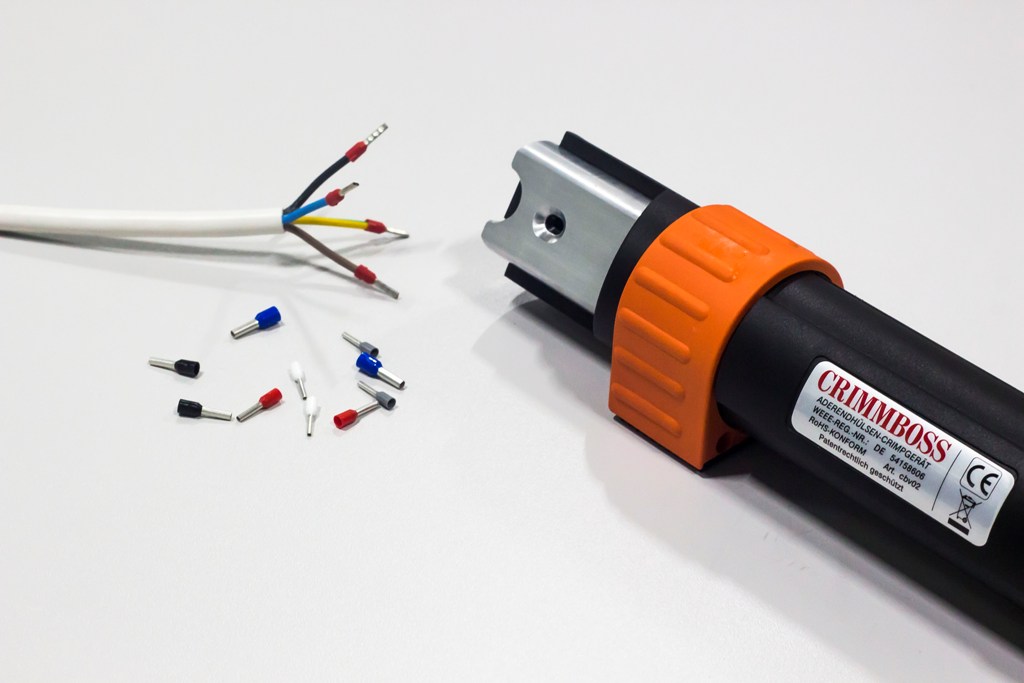

Crimmboss Hand Held Electric Crimper
Electromagnetic tool for crimping insulated cable end sleeves complete with accessories.
• The CrimmBoss CB2 crimping process is only activated by mechanical contactors when the cable end sleeves have been completely and correctly inserted
• Magnetic holder MHC for simple assembly of the CrimmBoss
• Contact tongue, small, for diameter range AWG 26-18 (0.14−1.0 mm²)
• Contact tongue, large, for diameter range AWG 21-19 (0.5−2.5 mm²)
• Contact tongues included in delivery
CrimmBoss CB2
Supply voltage 230V / 50Hz
Long mains cable: 9.2 ft. (2.8 m)
• The CrimmBoss CB2 crimping process is only activated by mechanical contactors when the cable end sleeves have been completely and correctly inserted
• Magnetic holder MHC for simple assembly of the CrimmBoss
• Contact tongue, small, for diameter range AWG 26-18 (0.14−1.0 mm²)
• Contact tongue, large, for diameter range AWG 21-19 (0.5−2.5 mm²)
• Contact tongues included in delivery
CrimmBoss CB2
Supply voltage 230V / 50Hz
Long mains cable: 9.2 ft. (2.8 m)

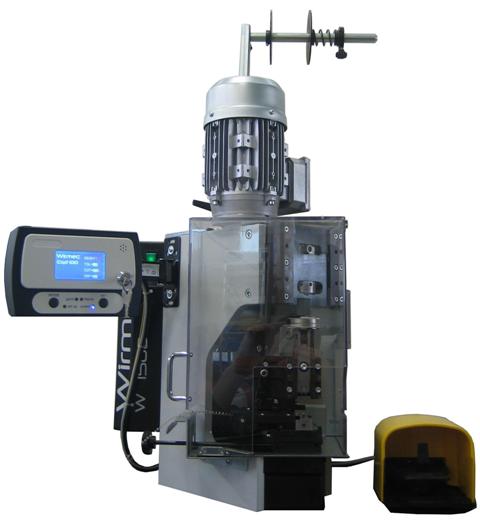

Wirmec W1500 Crimping Unit
230V Single-Phase
Crimping Force 15KN Max
Working Stroke 40mm
Centesimal Regulation
Electronic Counter
Quality ontrol QCD (Optional)
Size mm: H1020 x L390 x 350
Weight 35KG
Crimping Force 15KN Max
Working Stroke 40mm
Centesimal Regulation
Electronic Counter
Quality ontrol QCD (Optional)
Size mm: H1020 x L390 x 350
Weight 35KG

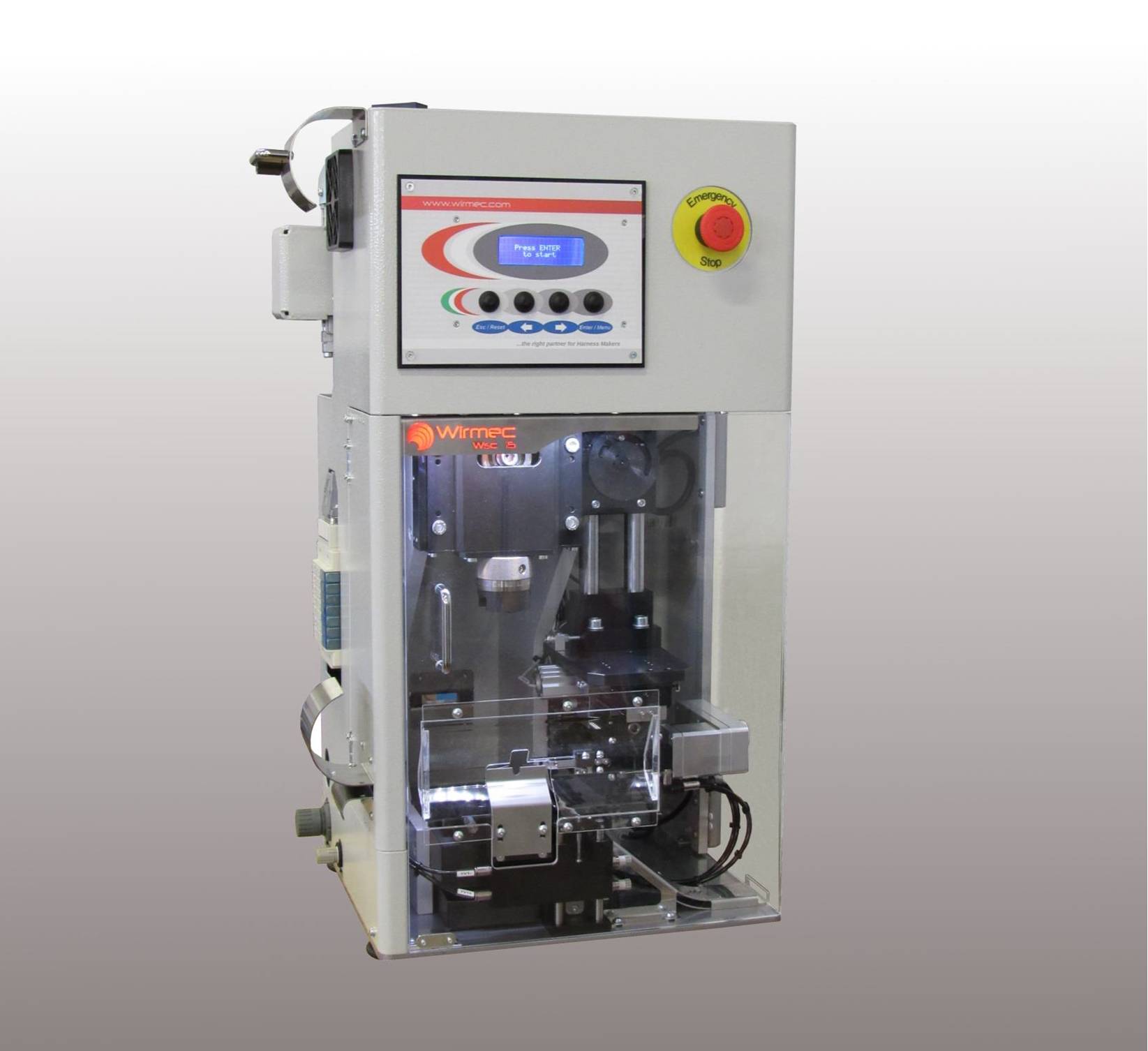

Wirmec WSC15 Stripper Crimper
The WSC15 stripper crimper by Wirmec performs operations of stripping and crimping of terminals on electric cables. The machine does not require any additional kit to perform special processing, short stripping, sections very small and very short cables. This machine can be fitted a lot of types of applicators, without to change anything. The Grippers and the cutting blades are closing in the symmetrical movement keeping the wire alaways in axis with the applicator.

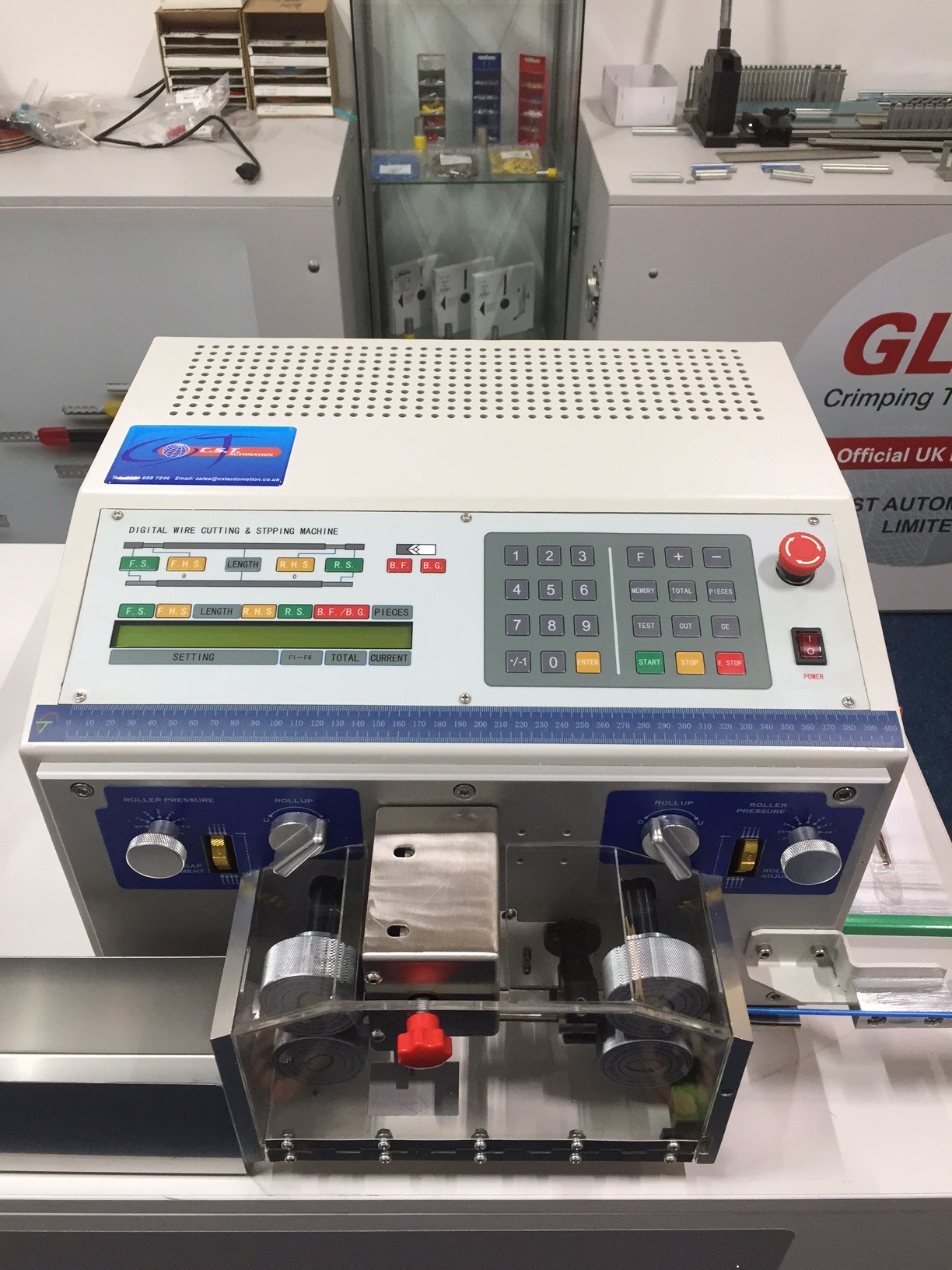

OTJ-1029 Cutting & Stripping Machine
A cost effective and reliable machine with high speed and high productivity.
Very easy to use protective membrane keypad and a large LCD display.
All parameters such as cable lengths, stripping lengths, cable cross section, quantities and batch quantities are entered using the keyboard.
Wire Cutting Length: 0.5mm-9999.9mm
Cutting and Stripping Tolerance:±(0.2+0.002×wire cutting length)mm
Stripping Length:0.2- 39.9mm (according to the core wire and insulation type)
Very easy to use protective membrane keypad and a large LCD display.
All parameters such as cable lengths, stripping lengths, cable cross section, quantities and batch quantities are entered using the keyboard.
Wire Cutting Length: 0.5mm-9999.9mm
Cutting and Stripping Tolerance:±(0.2+0.002×wire cutting length)mm
Stripping Length:0.2- 39.9mm (according to the core wire and insulation type)

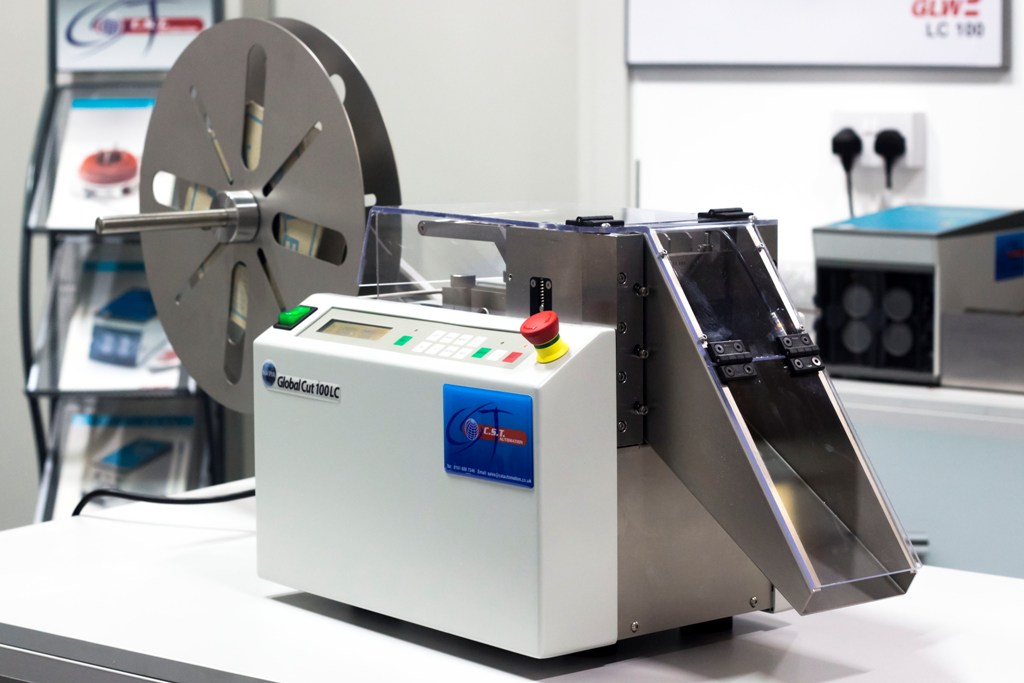

Global Cut 100 Cutting Machine
The Global Cut 100 is an electric cutting machine designed for cutting both round and flat material.
The user friendly control panel makes it easy to program and operate.
Dimensions:350x260x250mm
Weight:35Kg
Max cutting width:100mm
Tolerence(0,2+/-0,002xL)mm
Max cutting diameter:10mm
Maxspeed:1,8m/s
Number of programs:99
The user friendly control panel makes it easy to program and operate.
Dimensions:350x260x250mm
Weight:35Kg
Max cutting width:100mm
Tolerence(0,2+/-0,002xL)mm
Max cutting diameter:10mm
Maxspeed:1,8m/s
Number of programs:99

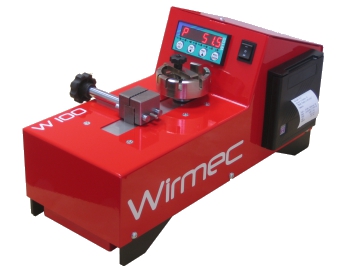

Wirmec W100 Pull Test Device
0 to 1000N tensile force
Motorized 30mm/min
Printer with customizable header
Dimensions mm (WxHxD) 225 x 245 x 470
Weight 16kg
Motorized 30mm/min
Printer with customizable header
Dimensions mm (WxHxD) 225 x 245 x 470
Weight 16kg
Wirmec W200 Micrograph Laboratory
Saw size 100 x 0, 6mm
Replaceable abrasive disc
USB microscope
Accident prevension protection
Removable universal clamp
Dimensions mm (WxHxD) 500 x 250 x 400
Power 230V 50/60Hz
Weight 15KG
Wirmec AM300 Quattro Cut Strip & Terminate Machine
The Wirmec AM300 Vantage Quattro cut strip & terminate machine can be equipped up to five stations.
It is suitable for processing of very thin cables, with lengths up to 15mm andstripping of more than 40mm.
It is suitable for processing of very thin cables, with lengths up to 15mm andstripping of more than 40mm.
Savotec SSC4000 Cutting & Stripping Machine
The SSC4000 is a fully electronic cut and stripping machine, it is an ITALIAN product, product designed and manufactured entirely (mechanical, electrical and software) internally the SAVOTEC, and it is complete of CE certification. The SSC4000 is controlled by powerful engines, cutting and for the stripping, which is performed by two conveyor belts of a length of 120 mm, with parallel opening to permit a correct centering of the cable with blades and a thread guide. The machine can process cables from 0.50 mm2 to 50mm2 with a hollow passage maximum 15 mm outside diameter, the machine can process single and multicore cables, PVC, Neoprene, Silicone, Etc.. The SSC4000 is managed by a PC running Windows, and a touch-screen for insertion of all operational parameters of the machine, with the possibility of saving parameters, in several programs, thanks to the software very intuitive, fast and extremely easy to use. Extremely compact and simple in operation, it ensures precise cuts and high production. The machine is supplied complete with safety guards, safety module and end cable sensor.
About us
CST Automation are experts in the field of cable preparation equipment. Our aim is supply a broad range of cost effective cabling solutions for the electronics, cable and wire industry throughout the UK and Europe. To compliment our cable product range we also offer support on all cable products from crimping machines to cutting machines.
As a leading cable specialist we work closely with some of the worlds largest suppliers of cable preparation production equipment such as Schleuniger, Ulmer, GLW and Tekuwa bringing you top quality cable machines that meet and exceed your requirements.
CST Automation, situated in Manchester offer an extensive range of both new and used cable prepping equipment tailored to suit your budgets, products include;
- Assembly Benches
- Cable Marking
- Cable Twist Machines
- Coaxial Stripping Machines
- Crimping Machines
- Cut & Strip Cable Machines
- Cut Strip Terminate Machines
- Cutting Machines
- Coiling & Stacking Cable Machinery
- Ferrules and End Sleeves
- Fibre Optic Preperation
- Hand Tools
- Hot Knife Cutting
- Karl Enghofer Terminals
- Prefeeding & Dereeling Machines
- Production Aids
- Solder Pots
- Stripping Machines
- Stacking Machines
CST Automation Ltd are now the official UK - GLW Service representatives, if you need any spare parts or a service on your GLW MC25 - GLW LC100 - GLW EC65 - GLWC CS60, or any GLW Kit, why not call us and arrange a Service Today.
In addition we have now developed a PF2B, a heavy duty cable pre-feeder with a capacity to hold 100KG cable reels. The PF2B de-reeling speed and automatic braking is controlled by the PF2 Pulley system, enabling smooth tension free cable prefeeding to your production line.
We pride ourselves on our customer service, due to our committed and experienced sales and service team being on hand to give technical support and advice, if and when required.
For more information, please give us a call or visit CST Automation website. If you are looking to sell any second user preparation equipment, either manufactured by Schleuniger, GLW, Ulmer or Tekuwa please contact us.
Images
