D&E Architectural Hardware Ltd

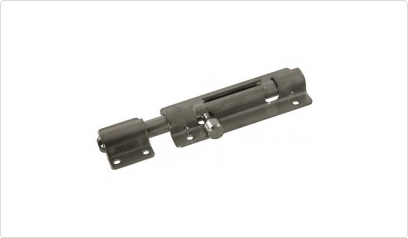

D&E Stainless Steel Barrel Bolt Padlocking Version
SSS Grade 304
Supplied with screws
Plate Dimensions:
100mm x 40mm
Bolt Dimensions:
150mm x 12mm
For use wth 5mm Shackle

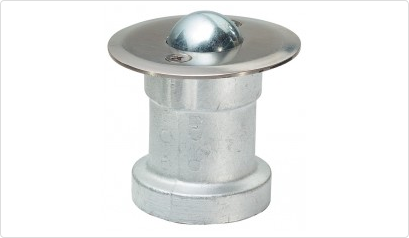

KWS Door holder
Roller catch door holder, floor socket of aluminium with cover plate stainless steel, counter plate of steel, zinc-plated.
Application
Door Width - up to 1000mm
Door Height - 2100mm
Door Weight - up to 40kg
Door Closer Suitable
Operation
Move the door over the flushmounted door holder until the ball catches. When the door is to be closed, just pull it from the ball.
Mounting
Flush-mount the floor socket at the arresting point at the greatest possible distance from the door hinge, screw back on the cover plate and fix the counter plate at the corresponding position on the door.

D&E SOCONA 'CHAIN' 300mm Model
The D&E Chain is designed for restricting the opening on doors. Available in two (2) lengths, 300mm for PVCu / over rebate doors and 175mm for standard doors - See SOC for 175mm Length.
Manufactured from steel.
Installation is via fixing screws (supplied as standard).
Finishes Available
Polished Nickel Plated
Polished Gold
Aged Bronze

The D&E NHN80VP series of door closers are a multi-size range of door closers. It has successfully been type tested to BS EN 1154 and BS EN 1634-1 and is accredited with CE certification where applicable, the NHN80VP series is backed up with a 10 years 'No Quibble' Guarantee. All models are supplied complete with a parellel shoe to enable standard arm and parallel arm installations without dropping in performance.
These are the non hold open models in Silver, also available with Backcheck (BC) or Delayed Action (DA). (NHN83VP is available in White or Gold)
Hold open & Slide arm models are available.

D&E Door Holder / Stop
Satin Stainless Steel free standing door stop
Diameter: 70mm
Weight: 1.3kg
Door Weight: 40 - 60kg
Packaging:
Each / 10 pieces
A comprehensive range of door stops & holders, in all finishes is available for doors up to 200Kg. Full details can be found in our KWS Range catalogue.

KWS Name plate with a door bell.
Face fixing.
Housing made of stainless steel.

D&E SOCONA 'AIRLOCK' Key Operated Model
The D&E Airlock is designed for limiting / restricting the opening of a door or window. Suitable for use on aluminium, timber & PVCu, French and over rebated doors and most inward and outward opening windows.
The push button (See SOL for Push Button model) or key operated versions allow complete control over the amount of opening you require and ensures 'duty of care' for the restricting the opening of windows on the first floor and above.
Manufactured from zamac and steel.
Installation is via fixing screws (supplied as standard)

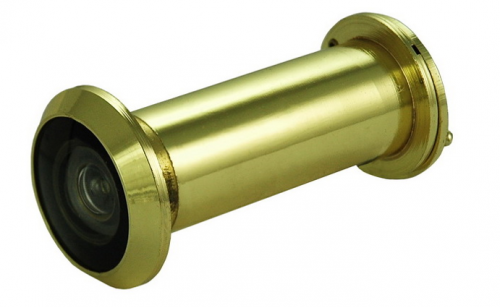

D&E Contract Aluminium door viewers with plastic lens & interior privacy cover
Viewing angle: 180 degree
To suit door thickness: 35 - 55mm
Body diameter: 12mm
Packaging: Each / 40 pcs
Please be aware that these items are being discontinued, once our stock has gone there is no more.
Finishes available
Polished Brass plated
Nickel Plated
We offer a wide variety of door viewers in various size body diameters, various lengths & even fire rated to FD30 or FD60 - For more information please do not hesitate to contact our sales office on 01733 896123.

KWS K3A Series lever on rose handles -
K3A10 - Lever on a round rose
K3A35 - Lever on a oval rose
These are supplied as a Single handle.
Supplied with 8mm Follower/Spindle as standard - 9mm available to order as special.

Series SGF
Fixed Â− pivoted, with plain bearing and return spring.
Lever handles and roses of stainless steel.
Rose interior of plastic.
Rose height is 10mm.
Mounting

The door handle is screwed on the door. Then clip on the cover cap.
Keyway (escutcheon)
PZ
BB
Without Keyway (Blind)

KWS K3G Series Door knob on a rose for glass doors -
K3G05 - Fixed Knob / Fixed Knob on round rose for glass doors
Supplied with 8mm Follower/Spindle as standard - 9mm available to order as special.

Series SGF
Fixed Â− pivoted, with plain bearing and return spring.
Lever handles and roses of stainless steel.
Rose interior of plastic.
Rose height is 10mm.
Mounting

The door knob is screwed on the door. Then clip on the cover cap.
Keyway (escutcheon)
PZ
BB
Without Keyway (Blind)

D&E Auto-Hinges 100 Series (To suit a Timber door in a Timber Frame)
113-60KG Model - Suitable for use on Internal doors up to 60kg.
The 100 series is a door closer built into a pair of hinges. Comprising of 1 spring hinge and 1 damper hinge and offers a fully adjustable, controlled closing action.
Hold open angle: 85° & 150° (Hold open model only / SL or SR models)
Opening angle: 180°
Door weight: 1 pr - 60kg
Packaging: 1 / 10 prs
Supplied handed - Left or Right Hand
Supplied complete with fixing screws
Max. Door Dimensions
Door Width: 900mm
Door Height: 2100mm
Minimum door thickness: 30mm
See PDF Technical information below for more details

D&E SAG 18412OO Narrow Stile PZ Latch lock
Narrow stile reversible Latch lock case to suit euro profile cylinders.
Backsets Available:
30mm
35mm
40mm
Other backsets available subject to quantity contact our sales office for more details on 01733 896123
Finishes:
Satin Stainless Steel
Zinc Plate
Forend:
24mm Squ
Case: Galvanised
Latchbolt: Reversible, cast steel - nickle plated
Made in Germany
Supplied complete with strike plate & fixings.

NITTO Delayed Action device.
This is an optional extra to use with the Nitto NSC-C60V Sliding Door gear.
The delayed action device provides a potential 20 second delay on the closing moment. This feature assists with achieving the recommendations within the 'Equality Act' having superseded the 'Disability Discrimination Act' (DDA).
These are handed - Left hand or Right hand.
HANDING:
For wall mounted installations facing the track -
LH = Door opens to the Left
RH = Door opens to the Right
For soffit installations this is also the case but it maybe harder you (Installer) to establish.
Other Optional Extras Include:
Backchek facility
Glass door kit
Soffit fix brackets
Bottom guide channel
Double door synchronisation kit
Flush handles

Argenta Pivotica AX - Invisible pivot hinge
Argenta introduces the Argenta Pivotica AX, a new, minamalistic and invisible pivot hinge with several unique characteristics.
Thanks to its compact size the Pivotica is not only easy to mount in the door, the pivot hinge can also be installed in pivoting floor-to-ceiling-height doors.
The innovative pivot hinge even allows for the pivot point on the door to be chosen freely (At a minimum of 40mm from the side of the door); this way, wide doors can for instance rotate from the middle. The Pivotica is suitable for both Left & Right hand doors.
Thanks to the Argenta Pivotica architects can use spaces and walls creatively, seeing how the pivot hinge does not require a door frame and the door can be aligned perfectly with the wall.
All parts of this pivot hinge are rust-resistant. The Pivotica is suitable for indoor use of both modern residential buildings as well as public building and offices.
The Pivotica is preferably used in combination with the Magnotica, a contactless door magnet.
Finish: Brushes Stainless Steel
Advantages
Invisible
Suitable for floor-to-ceiling-height doors
Invisible door closer
Easy installation
Free choice of rotating position (Hinge point)
Adjustable outlining (Straight outlining)
Fixed settings at -90 degrees / 0 degrees / 90 degrees
Child friendly (Easy to open)
Pivot system to be mounted in the door panel and not (As usual) in the floor or ceiling
Door dimensions
Max. Door weight - 45kg
Max. Door width - 1500mm
Minimum door thickness - 40mm

The D&E Magnotica is a 'state of the art' 'Anti-ligature' latch.
The magnetic, contactless door latch is designed to hold interior doors shut without the necessity for a leaver handle or protruding latch - both of which can be considered ligature points.
Door Weight: 100kg max
Packaging: 1 set
Guarantee period: 25 years
Dimensions: See line drawing
Supplied complete with Anti-Tamper screws, we offer the key as a seperate item see Magnotica-sec/key.
Silent Operation:
The magnotica has no moving parts which enables the door to be opened and closed in complete silence.
Applications:
The Magnotica is particularly suitable for doors where high end aesthetics with simple operation is a must. Sample locations include doors in hospitals, residential care homes, retail changing rooms, bathrooms, steam rooms, sauna's, your own home, wardrobes & anywhere else that would benefit from a non protruding latch.
For Double action doors the magnotica can be installed in combination with the pivotica, the unique compact self closing pivot system also from Argenta.
Installation:
Specifically designed for installation in the Argenta invisidoor DL & Invisidoor AX which are concealed aluminium door frames for interior doors.
The magnotica is also suitable for installation on any timber door and frame. The magnotica can be installed either vertically or horizontally. In both instances this should be as far away from the hinged edge as possible.
Benefits:
Zero maintenance because there are no moving parts to wear out
Door can be opened and closed without a lever handle
Doors are simple to open and close
Perfect Integration in the Invisdoor DL & AX
Ideal for doors to walk-in closets or storerooms
Perfect for use with knob furniture
Suitable for installation with Liobex double action spring hinges

KWS Replacement hanger bolt -
K9104 - M10 x 80mm
K9109 - M8 x 70mm
M6 x 50mm also available see K9111

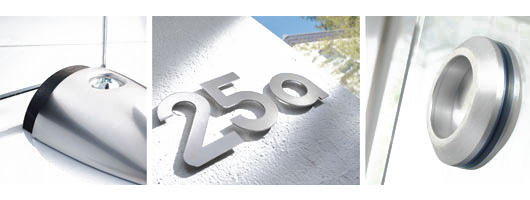

KWS 6" Numerals & 4" Letters
Straight Characters.
Numerals are 150mm high
Letters a, c, e 100mm high.
Thickness 3mm.
Made of stainless steel.
Fixings included (Alternatively available for sticking on - Please specify when ordering)
Mounting
Detailed instructions are supplied with each unit.
The screw nails should be screwed into the item. A 50mm deep hole should be drilled into the wall using a 6mm diameter drill peice.
Care should be taken with regard to the exact measurement
Numerals 0-9 dimension A = 126mm.
Letters a-e dimension A = 73mm.
Plugs should be fitted in the holes. Gently tap in the house number very carefully using a rubber mallet or a soft intermediate layer.
