Elemy Ltd

Submit press release

(0)

GRP & Metalwork, Tod Point Road,
Near Teesworks,
Warrenby,
Redcar,
North Yorkshire,
TS10 5BA,
United Kingdom

Quick Links:

Products

GRP Grating

We offer a range of GRP grating including Open Mesh Grating, Solid Top, Pultruded Grating and Phenolic Grating with all associated clips and fixings. We stock a variety of sizes, thicknesses and colours, with the supply of more niche requirements available upon request. GRP Grating is supplied as standard panels or can be fabricated to your requirements.

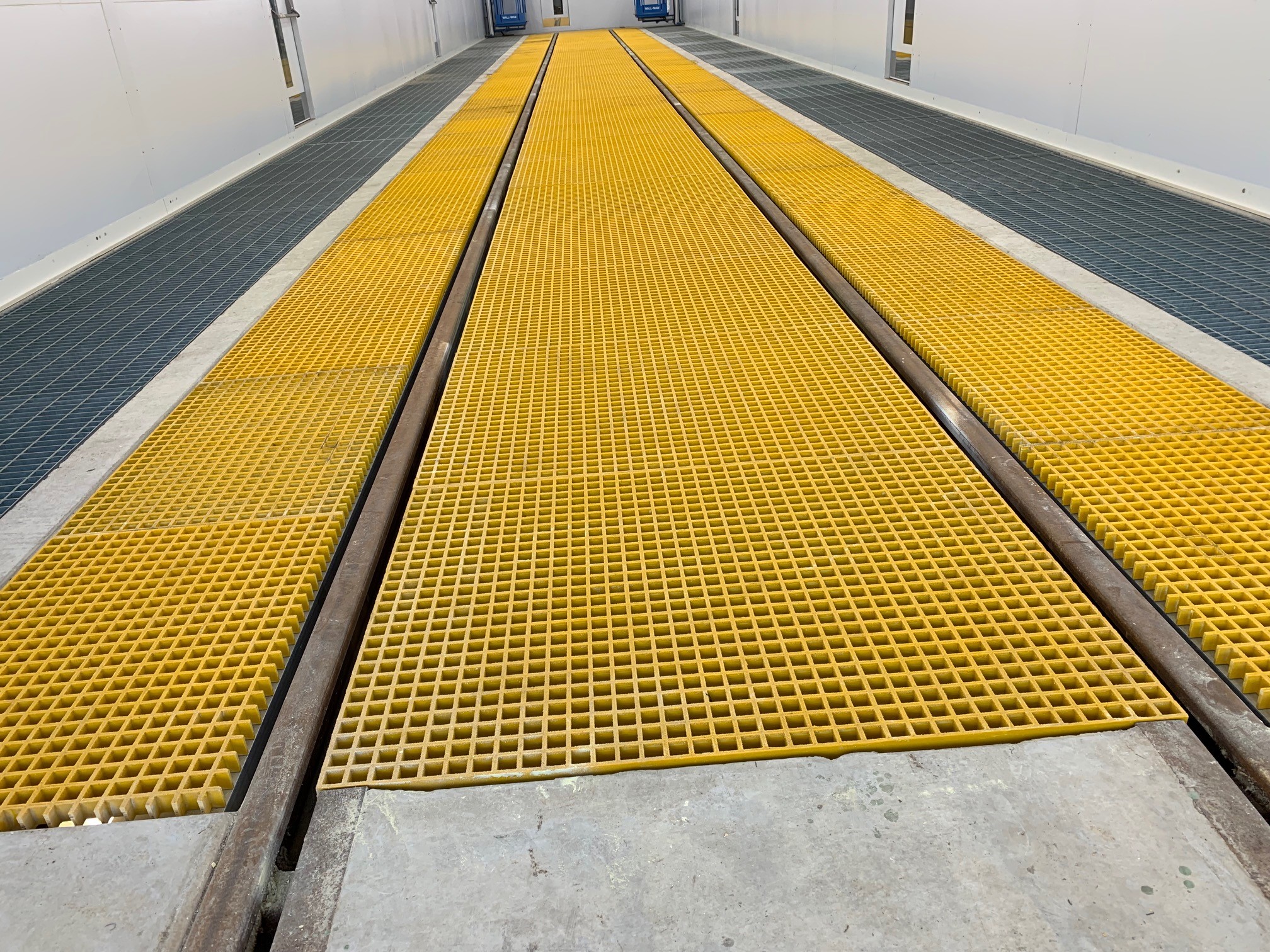

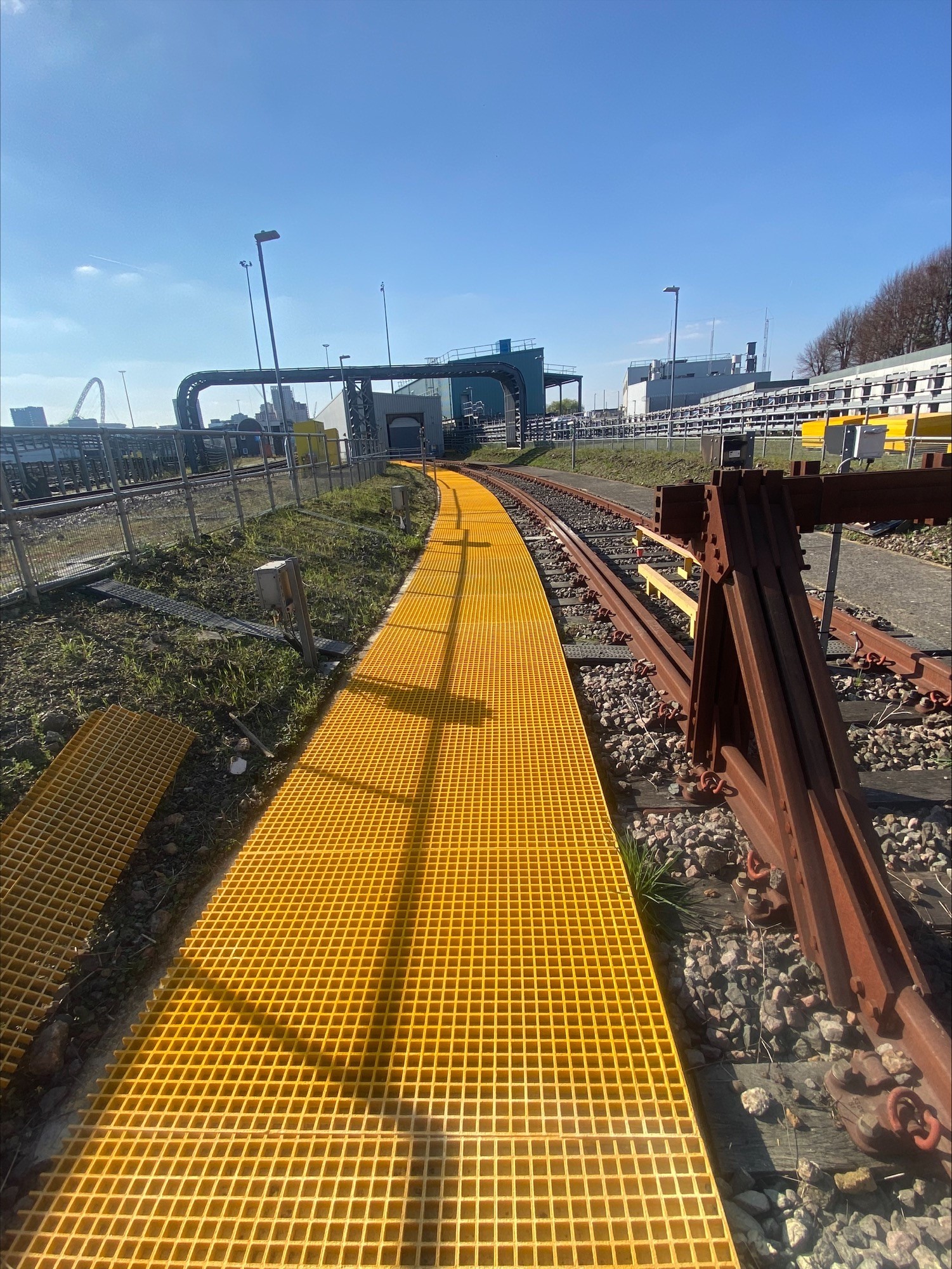

GRP Open Mesh Grating

A superior option to many metal gratings, anti-slip GRP open mesh grating is chosen for it's lightweight, corrosion and fire resistant properties. We supply both standard GRP open mesh and mini mesh grating

GRP Mini Mesh Grating

GRP Solid Top Grating

Comprised of open mesh grating finished with a solid top plate to give a closed top grating. Commonly used to provide an anti-slip surface in both industrial and commercial applications

GRP Phenolic Grating

Phenolic GRP Grating is manufactured using a phenolic resin, making it the ideal choice when fire, high temperature, low smoke, and toxicity levels are critical parameters. It is therefore often specified for applications where safety is paramount, such as Oil & Gas, Rail and public safety areas such as fire escapes.

GRP Pultruded Grating

Pultruded grating is made of pultruding structural ‘I’ and ‘T’ bearing bars, which provides greater strength than open moulded grating. It is widely used where larger spans are required as it can handle significant loads. This also makes it a good solution for high traffic areas. It is lightweight and corrosion resistant and requires little to no maintenance. Additionally, the gritted top provides an anti-slip surface that is beneficial for a wide range of applications.

Steel Grating & Treads

We offer a range of different metal gratings and products including forge welded open mesh steel grating, steel stair treads, press lock grating and stainless steel.

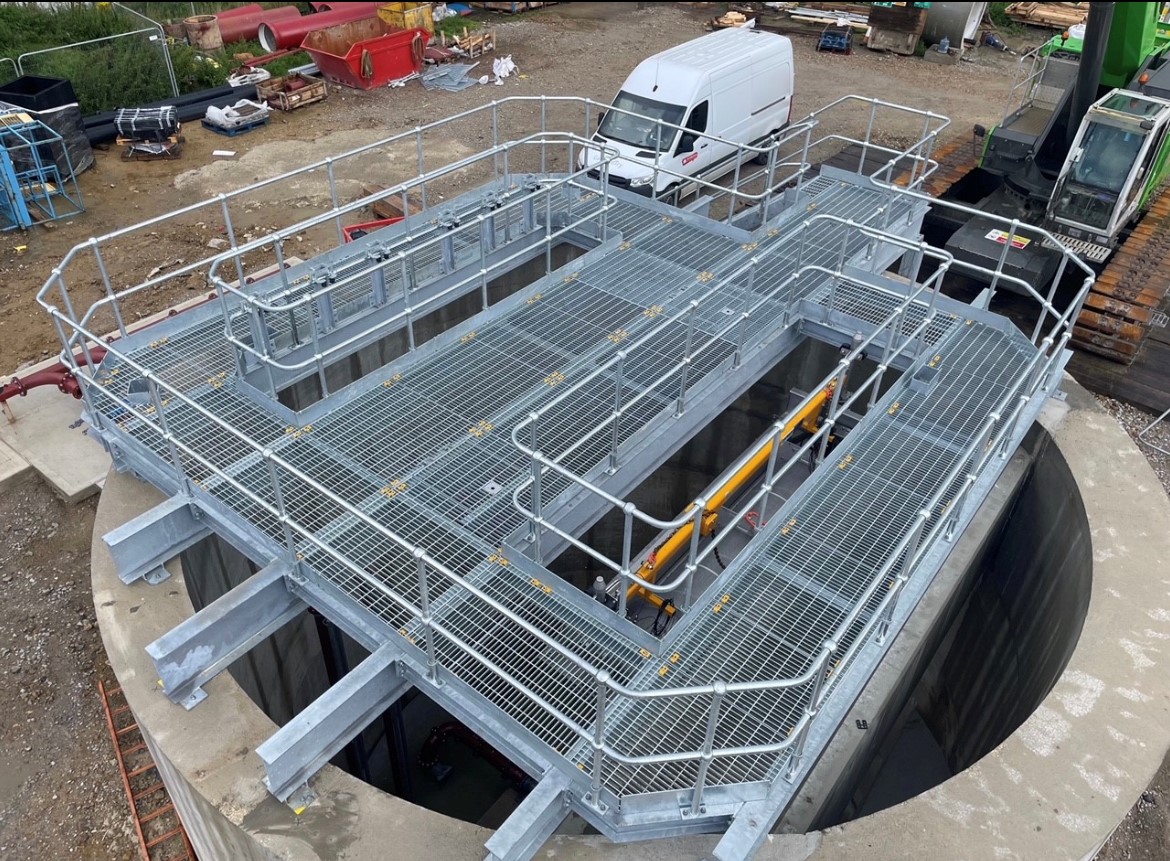

Forge Welded Open Mesh Steel Grating

Forge Welded Open Mesh Steel Grating is a very strong and robust product which is excellent for industrial applications such as platforms, landings and walkways. Twisted steel bars are pressed into the bearing bars and welded; this gives the product a high loading capacity as the bearing bars do not weaken due to the welding process. The twisted bars also create an anti-slip effect, making the product ideal for a range of different applications.

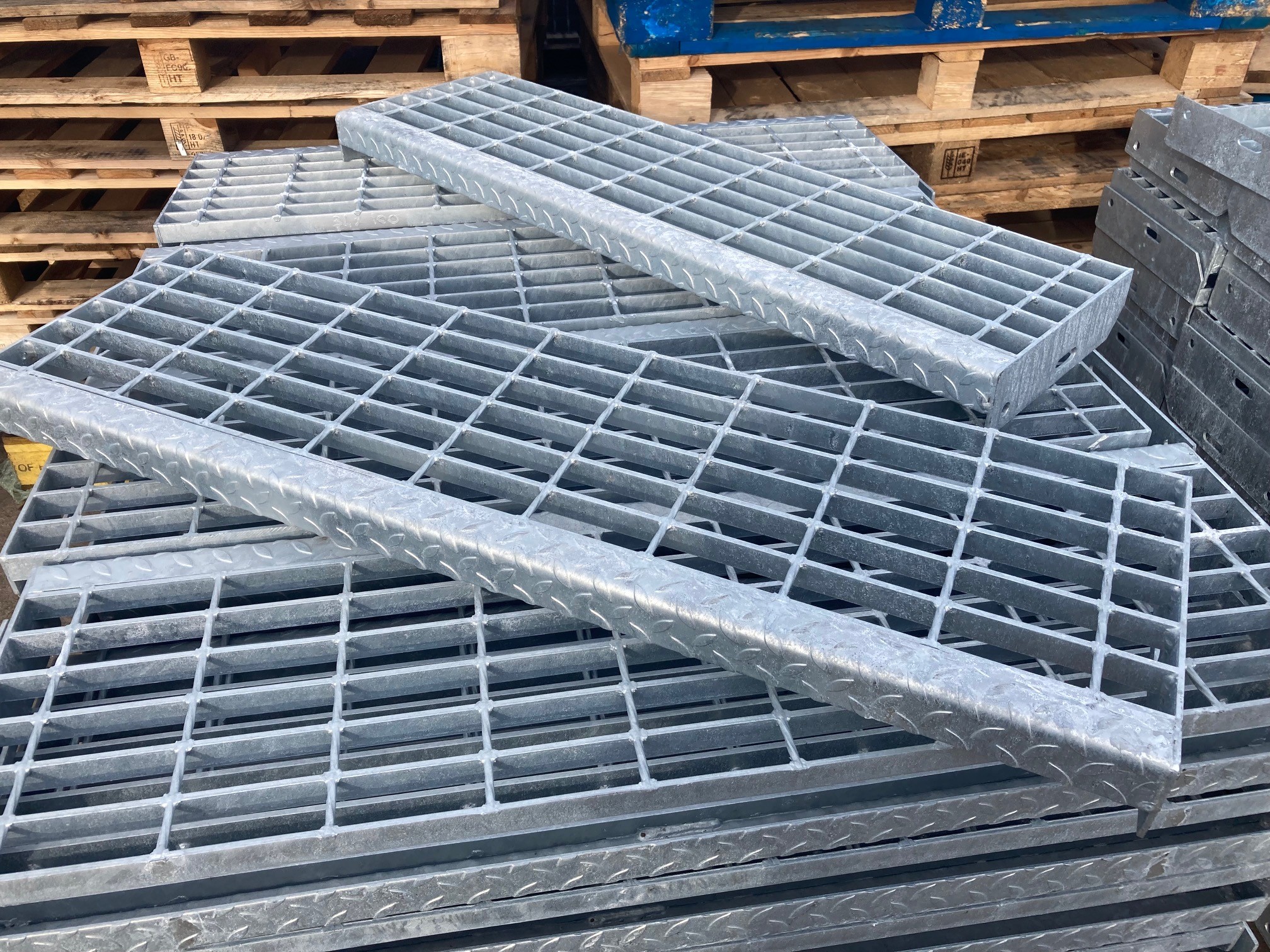

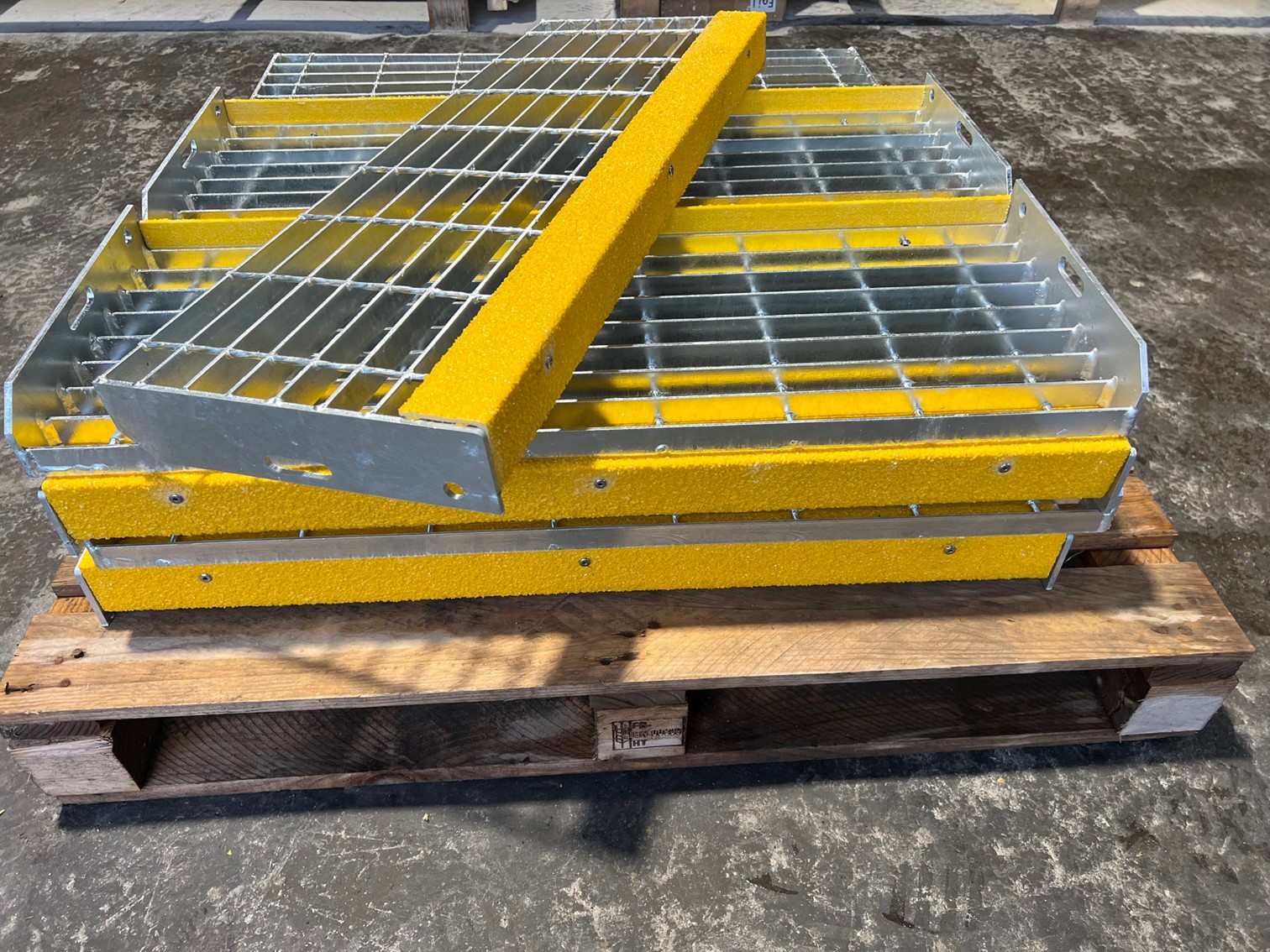

Steel Stair Treads

A strong and robust steel stair tread, commonly used for platform or fire escape stairs. We hold a range of stock sizes or can supply specific to your requirements.

GRP Plate, Treads & Nosing

We have a wide range of gritted, anti-slip products which provide a safe, non-slip surface underfoot including GRP Plate, Stair Tread Covers, Stair Nosing and Tactile Paving. We also offer GRP Translucent Plate.

GRP Gritted Anti-Slip Plate

GRP Anti-Slip Plate is a lightweight, non-corrosive product and can withstand extreme weather conditions, making it ideal for a range of environments. The plate is available with a fine or medium gritted top, depending on the application. The gritted plate provides an effective anti-slip surface and can be used to create a safe walkway in hazardous environments. It is commonly used in many applications, such as: walkways, stair treads, landing areas, ramps, piers, pontoons and many more. It can also be used to create a solid/closed top surface on the top of existing open mesh grating. Made from Isophthalic Polyester, with phenolic options available.

GRP Anti-Slip Stair Tread Cover

GRP Anti-Slip Stair Tread Covers are a fast and cost effective way to create a solid top surface on pre-existing stairs. Made from gritted GRP plate, they provide an anti-slip surface, improving safety in busy footfall areas. They are lightweight, durable, corrosion and weather resistant. They are quick and easy to install on to existing stairs, making them the perfect cost-effective safety solution.

Safety: A hard wearing quartz gritted surface provides a high level of slip resistance R13 slip resistance according to DIN 51130). GRP gritted plate also gives a high PTV reading, indicating extremely low slip potential.
Standard Colours: Black, Black with yellow nosing, black with white nosing. Other colours are available upon request.
Standard Size: 345mm x 55mm. We offer a cut to length service.

GRP Decking Systems

GRP decking systems offer a quick and cost-effective access solution to suit a range of different applications, including platforms, walkways, and decked terraces.

WPC Decking

Wood Plastic Composite Decking is an alternative product to traditional wood decking. Made from a blend of wood and plastic, the decking is manufactured using 90% recycled material. The decking is durable, anti-slip, and unlike wood it will not splinter. This makes it a safe and reliable option for outdoor decking in gardens, balconies and on terraces. Unlike wood, WPC composite decking does not rot or require treatment. It is therefore a low maintenance and cost-effective solution. The decking has a hidden and secure grooved fixing system. This gives a seamless design finish, but also allows the boards to naturally expand and contract.

40mm Pultruded Plank Decking

Pultruded Plank Decking is a 40mm thick Isophthalic Polyester resin GRP decking panel. It has a tongue and groove joint / male and female connectors along the length of the panel that creates a sealable joint between the lengths of the profile. The decking provides a solid top with a gritted anti-slip surface, offering a safe solution for busy foot traffic areas. It is commonly used for pedestrian bridge decking, GRP walkways, and mezzanine floors. It is also commonly used in the water industry where there is a need to prevent water penetration e.g., wastewater treatment plants.

GRP Profiles

GRP profiles are manufactured using a glass reinforced isophthalic polyester resin. GRP is lightweight yet strong, with GRP profiles stronger than steel alternatives on a strength to weight ratio basis. This allows for easy installation, requiring no heavy lifting equipment and offering a versatile solution suitable for many applications. The lightweight nature of GRP also makes it the ideal material for projects and structures where weight is critical. We offer a wide range of profiles in various sizes and colours including:

GRP Angle
GRP Box Section
GRP Channel
GRP I Beam
GRP Wide Flange Beam
GRP Handrail
GRP Kickplates

GRP Pipes, Flanges & Backing Rings

Glass fibre pipes, flanges and fittings in glass fibre reinforced vinylester - GRV - and glass fibre reinforced epoxy − GRE.

GRP FRP Pipe (by Filament Winding)

GRP FRP Pipes are widely used in various applications from drainage to sewerage and potable water. Typically available in a Vinylester or Epoxy resin, GRP FRP tubes are favoured for a number of reasons. Lightweight pipes make it easier (and cheaper!) to transport, handle and install. The pipes also have a high level of corrosion resistance from both the external environment and the internal flow. They also have a lower density, lower thermal expansion factor and a high strength to weight ratio.

Elemy can supply various types of composite pipes DN 25 − DN 400 mm with Vinylester or Epoxy matrix and various pressure ratings and jointing configurations.

• All pipes are plain end.
• Pipes are supplied with an inner corrosion barrier 0.5mm − 2.5mm.
• Large diameters available on request.

GRP FRP Flanges

GRP FRP Flanges form a rim that protrudes from the end of a pipe. They have several holes that allow two pipe flanges to be bolted together, with a connection formed between the two pipes. A gasket may be fitted between two flanges to improve the seal. Flanges available:

DN 25 − DN 2500 in GRV and GRE
Cylindrical or Conical Inner configuration
Pressure ratings 3, 6, 10, 16, 20, 25 and 32 bar

Civils & Buildings Products

Elemy can supply a range of GRP access and cable management products suitable for the civils and building industry. We are also able to source products based on your specific requirements, so please get in touch and let us help you.

Access Chambers & Covers

Composite covers are a lightweight, anti-slip option with the equivalent loading strength of steel. The covers have a long lifespan so once they are installed, this reduces the long-term cost due to a lack of maintenance required. They can be manufactured in a wide range of sizes to suit a range of applications.

GRP Structures

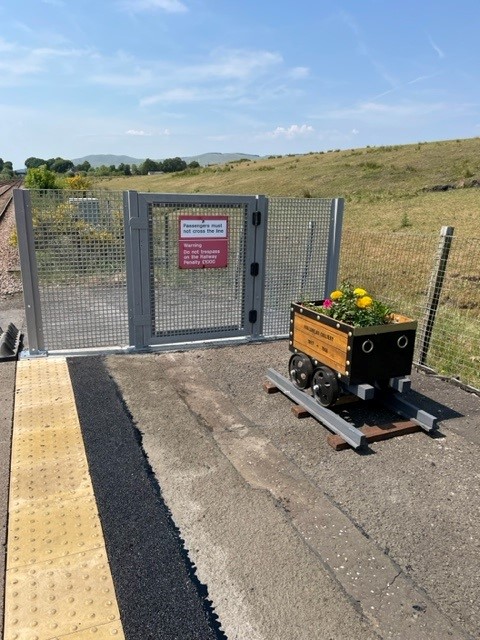

GRP has many properties that make it the ideal alternative to traditional materials such as steel, making it a great choice for many structures, such as fences and bridges.

Design & Engineering Services

We offer a range of design and engineering services including:

Shop drawings
Cut to size service
GRP structural engineering & calculations
Simple and complex fabrication
Reliable technical support and services
Excellent customer service pre & post order

We also hold a range of consignment stock and ensure that all our GRP products are industry compliant. Product data sheets and load tables are available upon request.
With our vast product knowledge and wide ranging expertise, we are able to fully support you throughout the length of your project. From advice with your design specification and ensuring the product meets specified criteria, to installation and the best fixings to use. We can help.

GRP Installation

Our experienced and professional install team are on hand to install any of your GRP requirements.

Highly skilled and knowledgable, the team have experience of various projects including Risers, Data Centres, Rooftop Plants, and TV Sets. This means we understand that the punctuality of delivery and install of your project is essential.

All vehicles, insurances and relevant certificates will be supplied. We install across the UK and Europe.

Metal Cutting Capabilities

12kw Fiber Laser , Bed size = 4000mm x 2000mm
Stainless = 1mm to 50mm
Mild Steel = 1mm to 40mm
Aluminium = 1mm to 50mm
Brass =1mm to 20mm
Copper = 1mm to 20mm

2 x Hidef 400amp Plasma cutting including bevel cutting , Bed size = 12000mm x 3000mm
Mild steel = 3mm to 50mm
Stainless = 3mm to 50mm
Aluminium = 3mm to 25mm

Flame cutting , Bed size = 18000mm x 3000mm
Mild steel = 6mm to 350mm thick

About us

Since its founding in early 2018, Elemy Ltd has steadily grown, earning a strong reputation for competitive pricing and outstanding customer service.

We focus on designing, manufacturing, supplying, and delivering glass-reinforced polymer (GRP) and composite products, along with specialised carbon steel, stainless steel, and aluminium metalwork services.

We maintain a variety of consignment stock and guarantee that all our GRP products meet industry standards.

Our Products Include:

GRP Grating
We provide a wide selection of GRP grating, including Open Mesh, Solid Top, Pultruded, and Phenolic Grating, along with all necessary clips and fixings. Our inventory includes various sizes, thicknesses, and colours, with custom options available upon request. GRP grating is offered in standard panels or custom-fabricated to meet your specifications.

Steel Grating & Treads
We supply a variety of metal gratings and products, including forge-welded open mesh steel grating, steel stair treads, press-lock grating, and stainless steel solutions.

GRP Profiles
GRP profiles are constructed using glass-reinforced isophthalic polyester resin, providing several advantages over traditional materials.

GRP Plate, Treads & Nosing
We offer a comprehensive range of gritted, anti-slip products that ensure a secure, non-slip surface, including GRP plates, stair tread covers, stair nosing, and tactile paving. GRP translucent plates are also available.

GRP Decking Systems
GRP decking systems provide a fast, cost-efficient access solution suitable for various applications, such as platforms, walkways, and decked terraces.

… And more.
We work across a broad spectrum of commercial and industrial sectors, bringing extensive expertise to guide you on design specifications and compliance matters. Alongside dependable technical support, we provide fabrication services backed by over 20 years of experience in the BCSA industry. Our skilled team has contributed to high-profile projects, including the Millennium Stadium, Canary Wharf, Wembley, and the Olympic Park.

Located in Teesside, we take pride in the region’s industrial heritage. We supply GRP and metalwork locally in Middlesbrough, Redcar, and the North East, as well as across the UK and globally.

Elemy is dedicated to providing the best solutions for all customers, prioritising product quality, competitive pricing, and efficient lead times.
