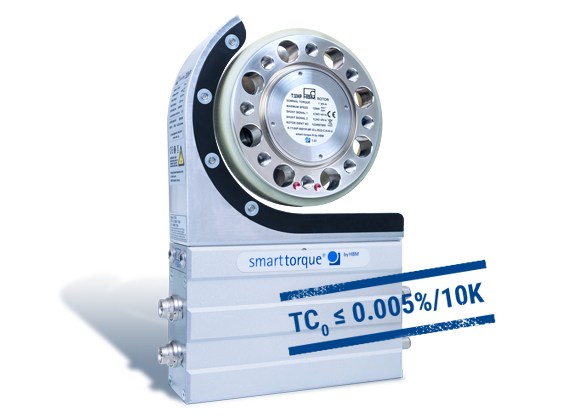

One torque sensor, multiple functions − only T12HP can do this. Its superior basic accuracy guarantees precise values over the entire measurement range. This results in the FlexRange™ capability that only T12HP can provide without the need to switch the measuring range like so called dual range sensors do.
The non-contacting transducer combines the flexibility of digital signal conditioning with the measurement accuracy of a carrier-frequency amplifier without data or accuracy loss. T12HP Assistant and CAN parameterization are user-friendly tools made available to allow easy configuration.
In combination with the TIM-EC interface module for EtherCAT and TIM-PN for PROFINET the torque and rotational speed signals can be integrated with cutting-edge test bench systems via the frequency interface with to date unknown precision and maximum performance and in a highly flexible manner.
- HBM accuracy class: 0.02
- Nominal (rated) measuring range: 100 Nm to 10 kNm

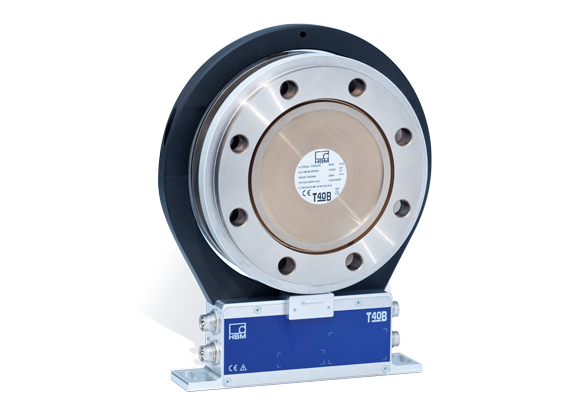

T40B: Nominal (rated) torques from 50 Nm to 10 kNm

T40B is outstanding for its precision, reproducibility and robustness and is particularly well suited for static and dynamic torque measurement. The torque transducer features 0.03% accuracy in terms of linearity including hysteresis, as well as high temperature stability. Combined with the integrated magnetic rotational speed measuring system, it allows for power measurement in the drive train. Non-contact power supply and digital signal transmission guarantee fail-safe and maintenance-free operation. The TIM-EC interface module for EtherCAT and TIM-PN for Profinet ensure maximum performance and high flexibility when integrating the torque and rotational speed signals with cutting-edge test bench systems.
- HBM accuracy class: 0.05
- Nominal (rated) torque: 50 Nm to 10 kNm

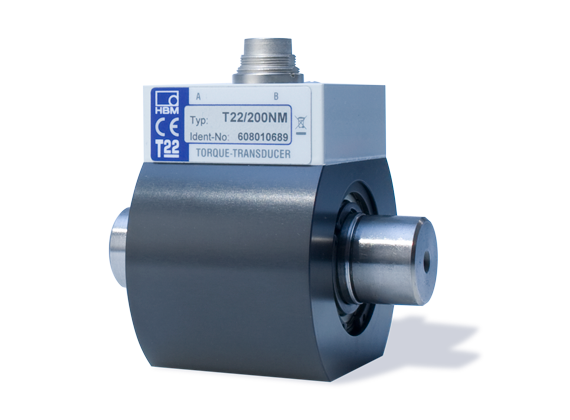

The strain gauge technology-based T22 torque transducer uses non-contacting transmission technology to measure torque, and provides measurement ranges from 0-0.5 Nm up to 0-1 kNm. Its compact design makes it the ideal choice for dynamic and static torque measurement on non-rotating as well as rotating components. Therefore, the T22 is used, for example, in laboratories and end-of-line test benches in the automotive sector and production technology. Due to its two analog outputs (current and voltage), the torque sensor can be easily connected to programmable logic controllers (PLC) and thus, is ideally suited for use in production and process monitoring.
- HBM accuracy class: 0.5
- Nominal (rated) torque: 0.5 Nm to 1 kNm
- Nominal (rated) rotational speed (rpm): up to 20,000

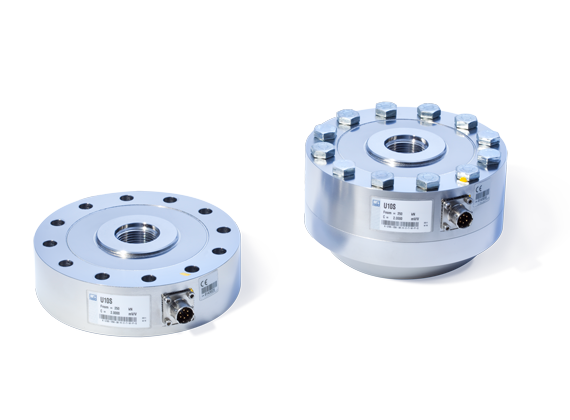

The rotationally symmetric, low-profile U10 force sensor has multiple uses focusing on applications in test benches, material testing machines, and challenging tasks in production. Tensile and compressive forces can be measured.
- HBM accuracy class: 0.02 to 0.05
- Capacities: 1.25 kN to 2.5 MN

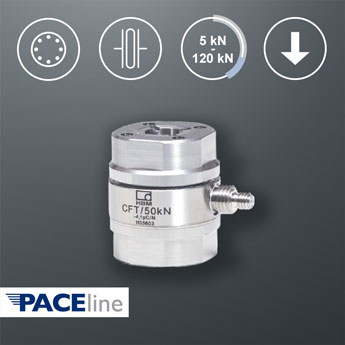

CFT force transducers are based on piezo technology and reliably measure compressive force from 5 kN to 120 kN as well as very small forces under high initial loads. CFT force transducers are extremely robust and ideally suited for highly dynamic applications such as pressing processes. Moreover, compared to other sensor technologies, they save a lot of space due to their compact design. They have already been pre-stressed and calibrated in two measuring ranges - and thus can be used immediately.
- Capacities: 5 kN to 120 kN
- HBM accuracy class: 1
- Calibrated measuring ranges: 20 % and 100 %

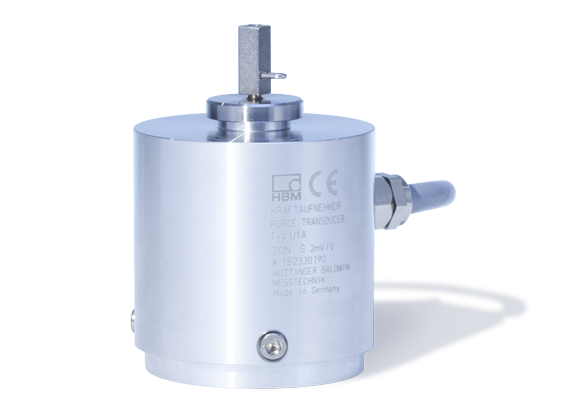

The U1A force sensor is specially designed for measuring small tensile and compressive forces, even when relatively high lateral forces are present. Three different types of mechanical connectors (load application) are available with the transducer: M5 external thread, M5 internal thread, and bolt with nut. The load cell is a true “classic” in our range of products: It has been available with unchanged dimensions and threaded connectors for over three decades. The S2M force transducer is also available as a cutting-edge alternative to this product.
- HBM accuracy class: up to 0.1
- Capacity: 10 N to 50 N

The PW15 and SP4M series load cells have uniform footprint but different characteristics. They enable scales to be designed in a flexible design, thus enabling a wide range of applications. With their different specifications, they are ideal for the food, packaging and chemical industries as well as for trade and agriculture - and ideal for belt, floor, table and loading scales as well as filling and production systems.

- The SP4M certified single point load cell made of aluminum and a very large nominal load range weighs particularly precisely up to Accuracy Class C6 Multitrange and an enormous maximum factor (Y value) of up to 20,000. In addition to explosion-proof versions for potentially explosive atmospheres, the load cell is available with additional options such as different connection cable lengths and balanced output for parallel connection.
- The PW15B single point load cell is made of stainless steel and can therefore be used in a wide range of ambient conditions. It is also available in various explosion-proof versions, as well as with balanced output for optimum use in parallel-connected scales.
- The PW15AH single point load cell is enormously robust, hermetically encapsulated, has the highest possible degree of protection IP68 / IP69K. - - The PW15AH load cell provides stable results under extreme ambient conditions.
- The PW15PH single point load cell is extremely flexible and quickly replaceable thanks to an innovative plug system. With a hermetically welded device plug, it also fulfills protection class IP68 / 69K. The matching connection cables are also available from HBM.

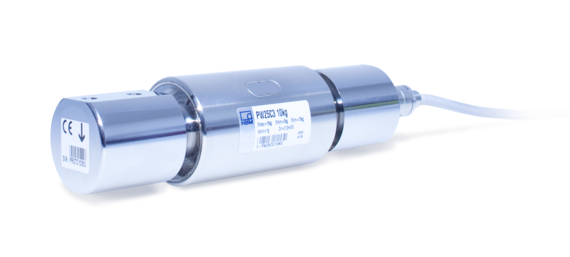

The PW25 provides extremely precise weights for food weighing up to 20 kg (accuracy class C3). With space-saving construction and market-compliant dimensions, the PW25 is easy to use in weigh fillers, multi-head combination weighers and for traditional weighing tasks. The PW25 load cell with IP rating IP69K features extraordinary tightness. Integrated overload protection ensures an overload stability of 1000% the maximum capacity.

In addition it is easy to clean, which makes it especially suitable for hygienically critical applications in the food industry such as filling containers of milk, baby food and yogurt. The load cell is also optionally available as the PW25P with a connector plug for even faster integration.
- Accuracy class: C3 multirange
- Maximum capacities: 10 kg, 20 kg
- Degree of protection: IP68/IP69K

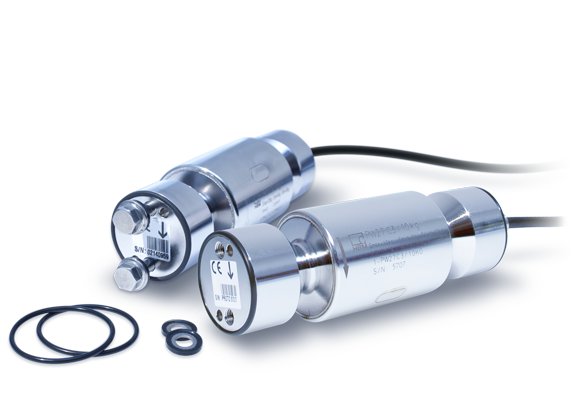

With the PW27 load cell for aseptic weighing, companies producing and filling food products are well prepared to face future challenges. The PW27 is the first load cell in this maximum capacity range that has been certified by the European Hygienic Engineering & Design Group (EHEDG). It is suited for filling, packaging and weighing food.

The PW27 load cell is well protected against moisture and extremely robust (protection class IP68/IP69K). It is prepared for cleaning with steam jets. Even cable plugs are especially protected. The integrated overload protection is up to 1,000% of the maximum capacity. This means that the load cell does not break even if someone is accidentally stepping on it, e.g. during cleaning.

Optionally, it is also available as version PW27P with connector for even faster integration and exchange in machines.

- Accuracy class: C3 Multirange
- Maximum capacities: 10 kg, 20 kg
- Protection class: IP68/IP69K

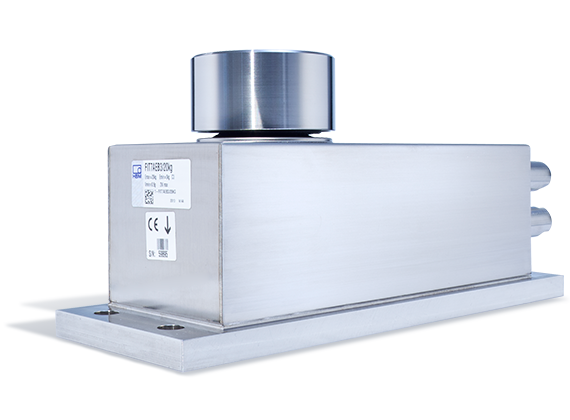

The future of checkweighing starts with the FIT7A digital load cell. With FIT7A, for the first time you can build your own checkweigher for your packaging line. There is no need for you to purchase expensive components and you become more competitive and independent.

Why opt for the checkweigher load cell from HBM? We are a pure supplier of weighing technology components. Therefore you do not purchase your components from your potential competitors. We are a dependable global partner offering high delivery reliability. Always near you: With a strong sales and service team that looks forward to providing personal support, answering your questions and offering professional training.
- Confirmed precision: OIML certificate for C4, Y up to 20,000
- Maximum capacity: 3 kg ... 75 kg

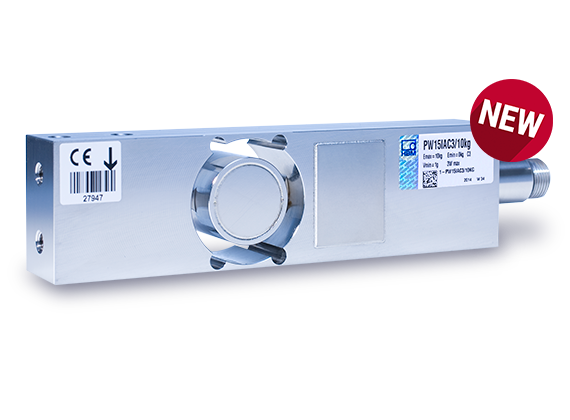

The PW15iA digital load is the ideal choice, particularly for automated applications in packaging machinery. The PW15iA is a true all-rounder, due to many integrated additional functions. They include, for example, a wide range of algorithms for checkweighing, filling, and batching. Thanks to PW15iA, which comes with these additional functions, there’s no need to undertake them separately, significantly reducing development time.
The PW15iA load cell can be quickly integrated into existing systems, without any additional construction effort, due to its compatibility with industry-standard dimensions (SP4M footprint). The load cell is made of stainless steel and has the highest possible degree of protection, IP68/IP69K. Thus, the PW15iA withstands industrial cleaning and is corrosion-resistant.

The highest possible degree of protection combined with compatibility with standard dimensions allows the use of PW15iA load cells in many different applications, well beyond the field of packaging machinery, ranging from automated batching to underwater force measurement.
- Confirmed precision: OIML certificate for C3, Y = 10,000
- Maximum capacity: 10 kg, 20 kg, 50 kg

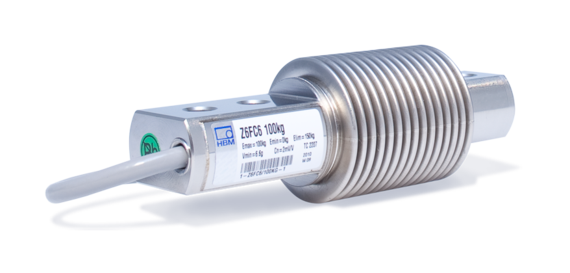

The HBM Z6 bending beam load cell is the primary weighing components for industrial scales. In addition to its exceptional accuracy (accuracy class according to OIML R60), the Z6 load cell is well suited to withstand even harsh manufacturing environments.

Z6 load cells are available in different Types (Z6FD1, Z6FC3, Z6FC4, Z6FC6) with different accuracy classes - including C6 accuracy class!
Key Features
- Welded on metal bellow
- Load cells and mounting aids entirely made from stainless material
- Complies with OIML R60 regulations up to 6000d
- Six-wire circuit
- Optimized for parallel connection with corner-preadjustment
- Meets today EMC/ESD requirements according to EN 45501
- Explosion proof version acc. to ATEX95 optional
- Nominal load: 5 kg / 10 kg / 20 kg / 30 kg / 50 kg / 100 kg / 200 kg / 500 kg / 1 t
- Accuracy class: D1, C3, C4, C6
- Approvals: OIML, NTEP, Ex, GOS
- Protection class: EMC approved
- Material: Stainless steel

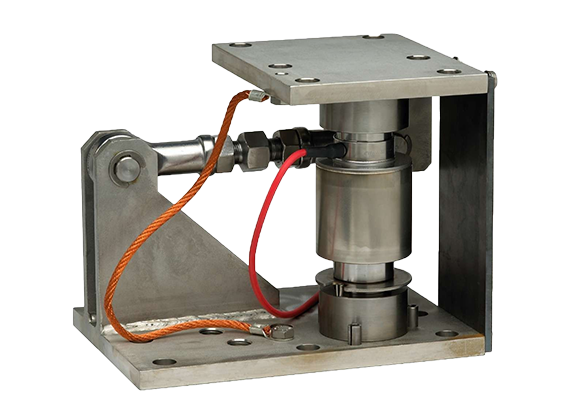

Whether for building industry tanks, coal bunkers or tanks for liquids and gases, the C16 weigh module has the specific properties required and is available for all applications.

All the weighing modules, whether galvanized or made of stainless steel, are fitted with integrated stay rods to absorb the horizontal forces, such as typically occur with wind loads. Anti-liftoff devices are included in the design as an accessory and can be easily fitted by the user when required.

The metrological heart of the module is the C16 selfrestoring pendulum load cell, which is available in various versions.

Special features of C16 weighing modules:
• Accuracy class D1, C3 or C4 under OIML
• ATEX95 zones 1+21, zones 2+22
• FM approval (explosion protection for the USA)
• Overvoltage protection
• Digital output

The weighing modules are available with maximum capacities ranging from 20 t to 400 t. This allows tanks of up to approximately 1,200 t, to be constructed and, subject to the design, also made legal for trade.

Key Features
• Equipped with C16 self-restoring rocker pin load cell, Class D1 according to OIML R60, optionally Class C3
• Transverse control arm included in the scope of supply
• Designed for lift-off securing device
• Maintenance-free
• Compact installation at minimum installation height
• Easy installation
• Galvanized material and stainless steel version available

Nominal load: 20 t / 30 t / 40 t / 60 t / 100 t / 200 t / 400 t

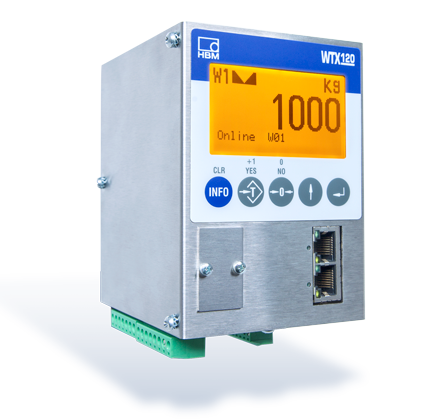

Any analog load cell based on strain gauges can be connected to the WTX120 industrial and rail-mountable weighing terminal. The weight indicator is ideally suited for filling, dosing and sorting plants and machines and offers everything you'd expect from modern weighing electronics: It can be integrated into standard industrial control systems thanks to industrial Ethernet and Fieldbus interfaces. Push buttons, display and text navigation allow for effortless on-site operation. As an additional benefit, the intuitive HBM weighing software PanelX helps you with start-up or maintenance.

One DAQ system for all your test and measurement tasks

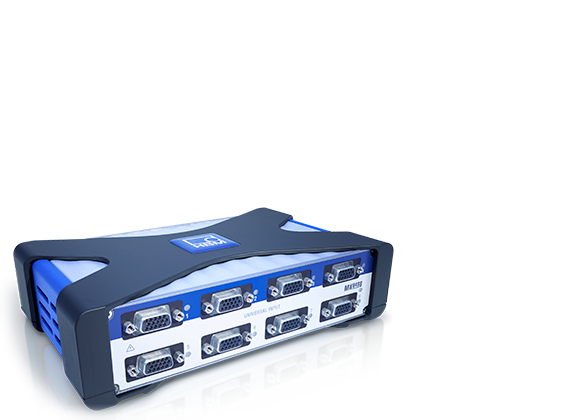

The QuantumX data acquisition system (DAQ) is the perfect tool for all of your test and measurement needs. For reliable data acquisition of signals from different measurement quantities and sensor technologies, the QuantumX is the preferred choice. It has the unique capability to acquire signals from any analog sensor.

The modules enable a wide range of different measurement quantities acquired reliably and simultaneously using a single device. In addition, other modules are available specifically for the most varied of measurement quantities

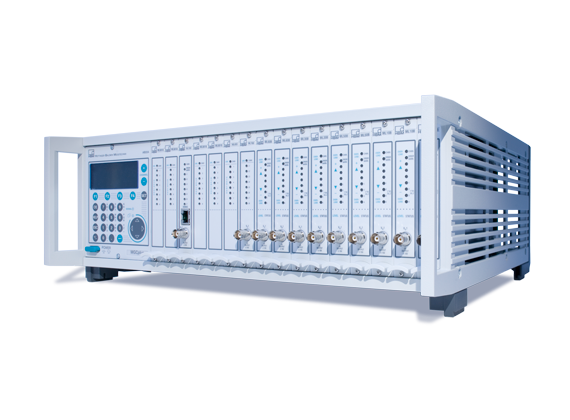

MGCplus: A Data Acquisition Multi-Talent
With more than 100,000 MGCplus channels in different applications worldwide, HBM's MGCplus system has gained acceptance as a measurement standard. It features the wide spectrum of supported transducers and standard PC interfaces that users demand from a leading and truly integrated measurement device.

Today, MGCplus is the data acquisition (DAQ) system of choice for almost all industrial, laboratory and R&D measurement applications in test stands, calibration, manufacturing, weighing, experimental stress analysis and durability testing.

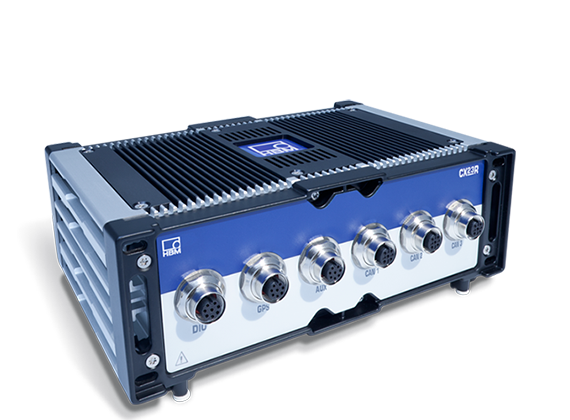

The rugged SomatXR data acquisition system is specially developed for use in harsh environments. It is extremely reliable and precise - and protected from humidity, dust, shock and vibration. The modular system is well suited to a variety of applications such as vehicle testing, stationary measurements and structural health monitoring. The modules can be operated in a wide temperature range and can be flexibly combined via Ethernet interface to match a wide range of applications. The data recorder allows for easy access to all measured data via browser and web interface.

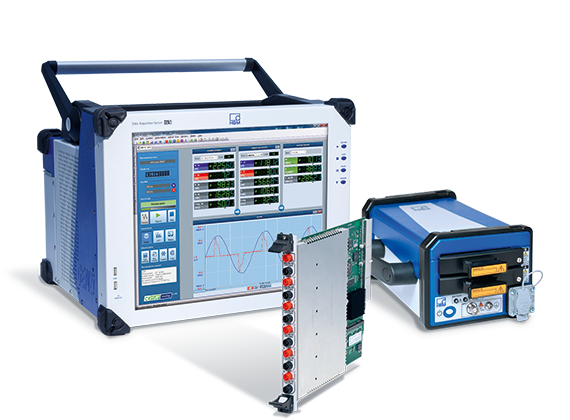

Genesis HighSpeed is the modular platform for fast measurements of electrical and mechanical parameters. A transient recorder, data recorder and data acquisition system − all in one. Thanks to its modular architecture it is equipped for any high speed measurement task. Build your own configuration consisting of a mainframe, data acquisition card and Perception software.

Also available: Devices with signal conditioning for all commonly used sensors and optical waveguide-isolated digitizers for signal acquisition, even in the high-voltage range.

HBM eDrive Testing: Power Analyzer and Data Acquisition System for Testing Electrical Drives

HBM eDrive Testing is the revolutionary system for testing electrical inverters and electrical machines. Mechanical signals (e.g., torque) and electrical signals (current, voltage) are acquired simultaneously, helping you to better understand the electric drive and its losses in minutes rather than days. This is important for the optimization of the drive as well as the increase in efficiency.

In contrast to conventional power analyzers, HBM eDrive Testing offers unique data acquisition and analysis capabilities in addition to power measurement.

The modular testing system is suitable for 3-phase as well as multi-channel applications (e.g., 6-phase machines, hybrid or multi-motor drives).

The two components of HBM eDrive Testing:
• Power Analyzer: Measures and calculates electrical signals and power in real-time on up to 51 channels, as well as mechanical power with up to 6 torque / speed signals and a typical power accuracy of 0.02%.
• Measurement data acquisition system (DAQ): Synchronous detection of electrical signals, torque, speed, temperature, CAN bus, vibration and other measured variables. Continuous or point-controlled storage of all data in real time.

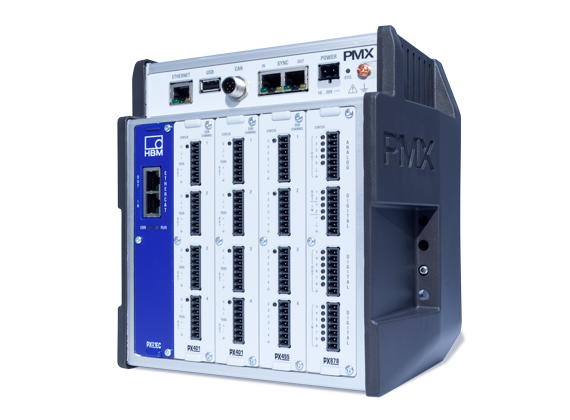

PMX Data Acquisition and Control System: For Test Bench and Production
PMX is our accurate, reliable and flexible measurement instrument used to process high data volumes for multi-channel applications.
The data is processed and issued via industrial Ethernet interfaces. An easy-to-use web interface is provided via the TCP/IP interface for the diagnosis and setup.
Smaller automation tasks can be implemented directly via the internal Soft PLC in accordance with IEC-61131.
- 2-16 channels per module (individually extendable)
- Interfaces: Profinet, EtherCAT, Ethernet IP, TCP/IP
- Internally stored digital calibration protocol
- Ready for IoT (Internet of Things) applications, such as remote diagnosis, web integration

Are you faced with a challenging measurement task and need software that offers more than just data acquisition? catman data acquisition software (DAQ) allows for data visualization, analysis and storage during the measurement and reporting after.
Configure catman to fully meet your requirements and benefit from using the software’s extensive range of functions. Whether it is in mobile road tests, testing of components in test benches, monitoring tasks or research: catman DAQ software is up to any challenge.

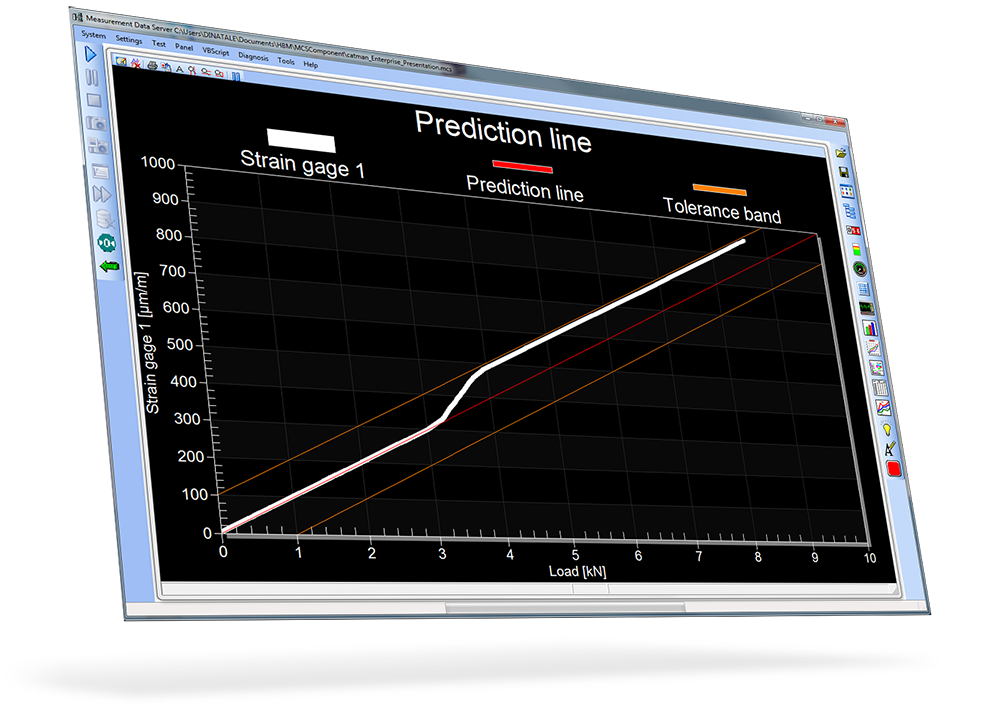

The Leading Data Acquisition Software for Tests with Huge Channel Counts
catman Enterprise DAQ software is the best choice for tests with up to 20,000 measurement channels and therefore ideal for aerospace applications. Share your measurement data in real-time with the whole project team − worldwide.
HBM brings the solution to your doorstep: Our experienced engineers will design and set up a turnkey system that is ready to measure.

Professional Software For High-Speed Measurement Data Acquisition.

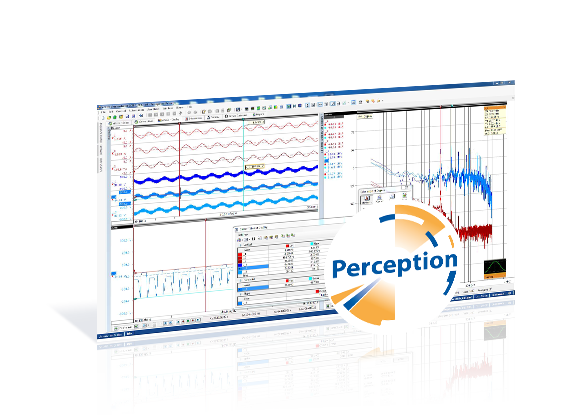

Perception offers more than standard data acquisition software. Perception is designed for fast and reliable processing of large amounts of data and is therefore ideal for high-speed data acquisition.
Thanks to patented StatStream technology Perception enables 10 gigabytes of data to be visualized on your PC in 10 seconds. For your measurement, this means, no wait time - virtually "live" data feeds keep you up to date about the status of your measurement data acquisition. You can access saved data even during running measurements and zoom in on these data. Recording continues in the background.

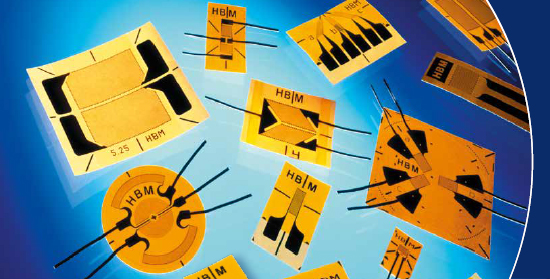

Y Series Universal Strain Gauges: Over 2,000 Different Types Available
Y series foil strain gauges (SG) can be used in many areas, for static or dynamic stress analysis. They measure highly precisely, are robust, extremely flexible and can be installed on different materials due to 7 different types of temperature response matching. Y series universal SG are available in many versions for a wide range of applications - thanks to properties such as geometry, nominal (rated) resistance and measuring grid length that can be combined as required. Over 260 frequently used types (“preferential strain gauge”) are available immediately ex stock.

Strain Gauges Providing High Resistance to Alternating Loads
M series strain gauges withstand high temperatures and many load cycles at a high strain level. They are best suited for measurement of high-strength materials.

The Measurement Experts for the Extended Temperature Range
The strain gauges of HBM's C series are the low-cost specialists for high and low temperatures - and are also flexible.

Strain Gauges for Transducer Manufacturers
When it comes to converting mechanical quantities like force, torque and pressure into electrical values, strain gauge technology offers both strong performance and low cost.

Strain Gauges & Accessories
Our range of strain gauges comprises of an extensive assortment for the most widely differing strain measurement applications − from experimental stress analysis, durability testing through transducer manufacturing.

Strain Gauge Accessories
With its strain gauge accessories, the HBM product range offers everything necessary for a good strain gage application.

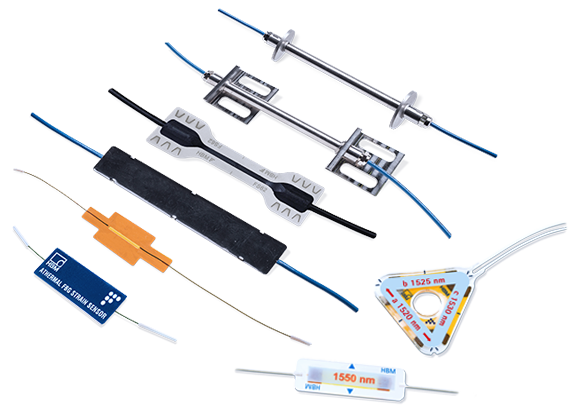

Optical fiber sensors present undeniable advantages such as high fatigue limits, multiplexing and immunity to electromagnetic interferences.
HBM FiberSensing range of optical (FBG) sensors and gauges are the perfect choice for demanding testing and monitoring applications

High-Performance Optical Strain Sensors
HBM FiberSensing offers two lines of optical strain gauges and sensors based on Fiber Bragg Grating (FBG) technology:
The FS Line includes strain sensors in different formats and is most suited for large sensing networks. This line ensures connectivity along several kilometers of fiber without compromising the the sensors signals.
The OP Line comprises strain sensors for high strain applications due to their outstanding resistance. With intrinsic bending capability, the strain gauges from the OP Line are available as linear gauges or strain rosettes
