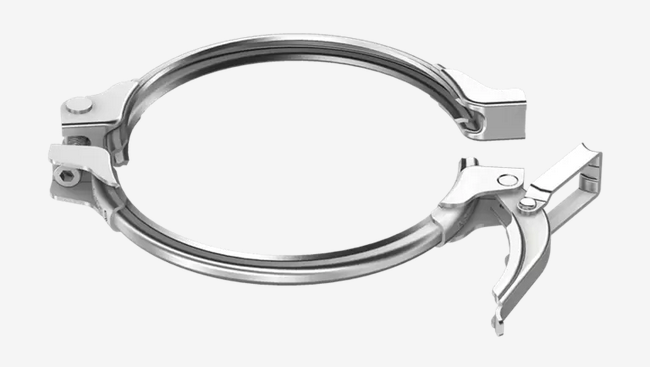

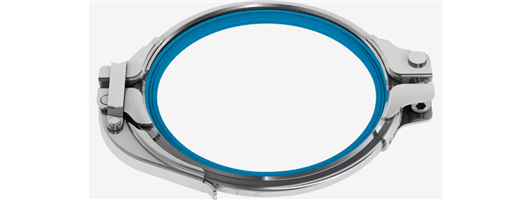

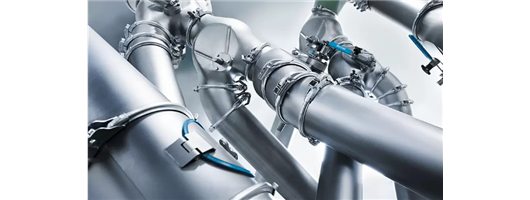

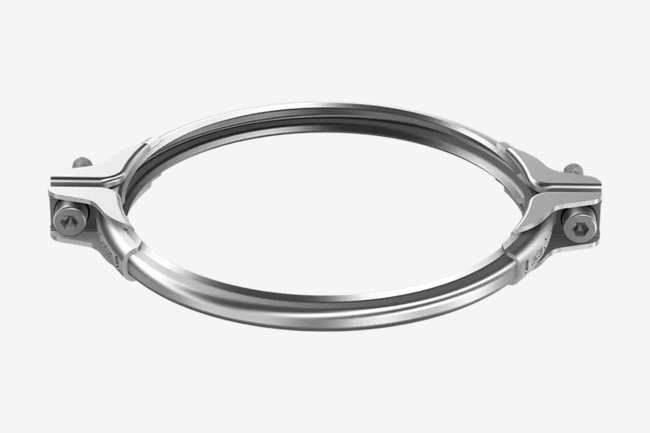

The JACOB pull-ring system is very easy to assemble and gives the pipework system its high stability and leak-tightness due to its high-quality construction. Both pull-rings have been tested in conjunction with JACOB U-shaped seals. The air leakage per connection, measured at a differential pressure of 0.5 bar – e.g. with a diameter of 300 mm – is far below the admissible values of DIN EN 12237, class D.

The JACOB pull-ring system is very easy to assemble and gives the pipework system its high stability and leak-tightness due to its high-quality construction. Both pull-rings have been tested in conjunction with JACOB U-shaped seals. The air leakage per connection, measured at a differential pressure of 0.5 bar – e.g. with a diameter of 300 mm – is far below the admissible values of DIN EN 12237, class D.

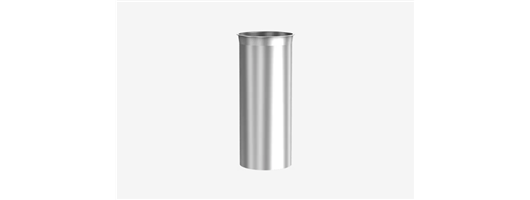

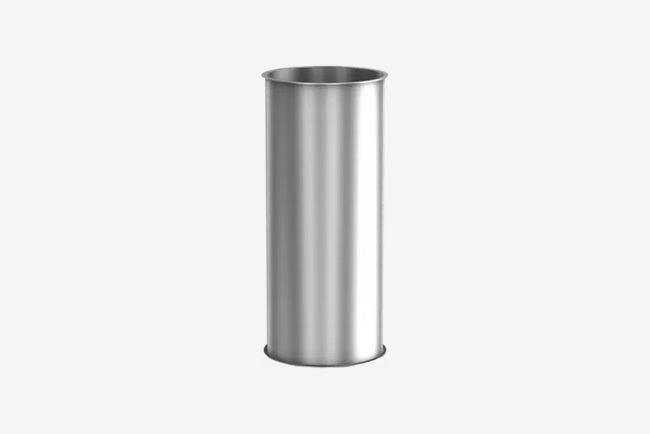

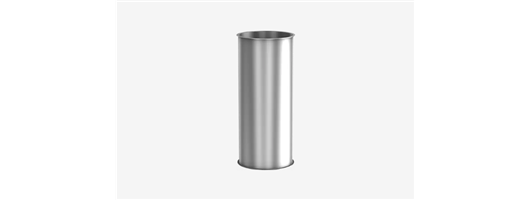

The cornerstone of the modular pipework system – our certification according to the DIN EN ISO 3834-3 welding quality management system and automated welding processes guarantee top serial production quality. Straight pipes are available in diameters ranging from 60 to 630 mm with a 6 mm lip in various materials with a wall thickness of 1 to 3 mm. Please refer to chapter 1, on page 20 for information on inside diameters. At your request we manufacture customised special lengths, supply pipes with flanges or produce finishes to your specification as far as technically possible – from special colours to pickled stainless steel.

The cornerstone of the modular pipework system – our certification according to the DIN EN ISO 3834-3 welding quality management system and automated welding processes guarantee top serial production quality. Straight pipes are available in diameters ranging from 60 to 630 mm with a 6 mm lip in various materials with a wall thickness of 1 to 3 mm. Please refer to chapter 1, on page 20 for information on inside diameters. At your request we manufacture customised special lengths, supply pipes with flanges or produce finishes to your specification as far as technically possible – from special colours to pickled stainless steel.

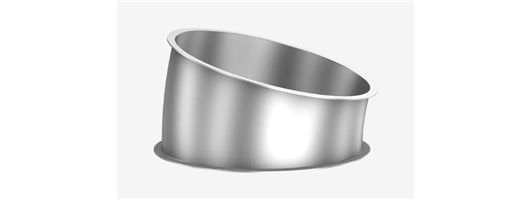

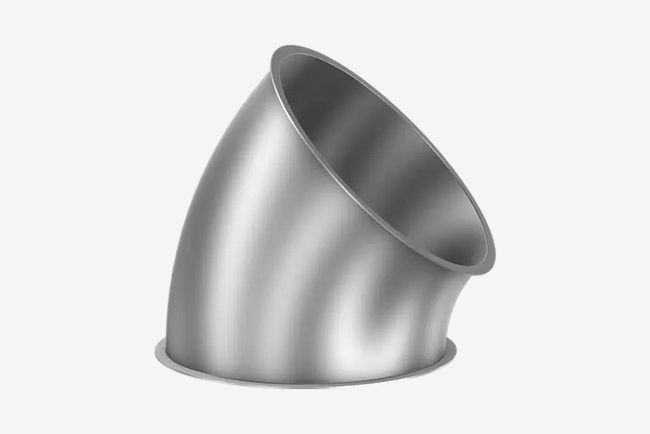

Perfect flow properties pay off! If the product flow is ideally guided through direction-changing elements, the flow resistance, and so also the wear, are significantly reduced. This results in: energy savings, longer maintenance intervals, shorter downtimes and so lower costs. We achieve this with our innovative manufacturing technology. We produce bends from pressed half shells or pressed segments. Automated production stages, particularly during welding, ensure a uniformly high level of quality.

Perfect flow properties pay off! If the product flow is ideally guided through direction-changing elements, the flow resistance, and so also the wear, are significantly reduced. This results in: energy savings, longer maintenance intervals, shorter downtimes and so lower costs. We achieve this with our innovative manufacturing technology. We produce bends from pressed half shells or pressed segments. Automated production stages, particularly during welding, ensure a uniformly high level of quality.

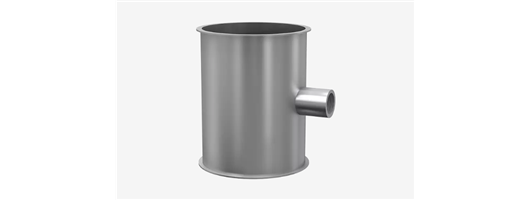

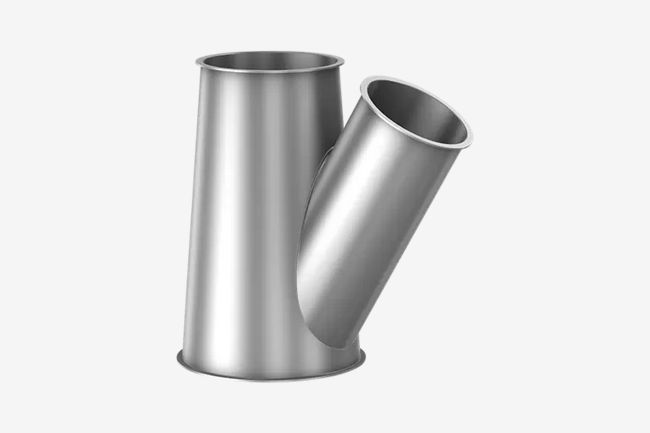

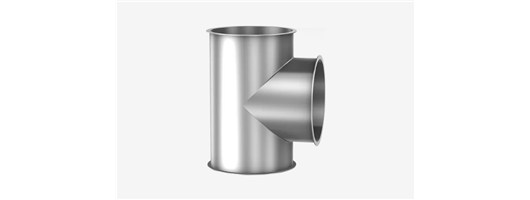

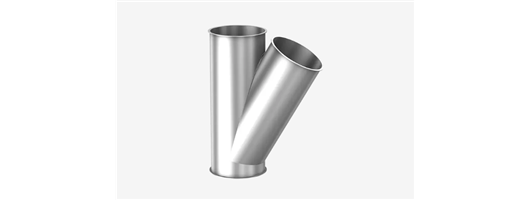

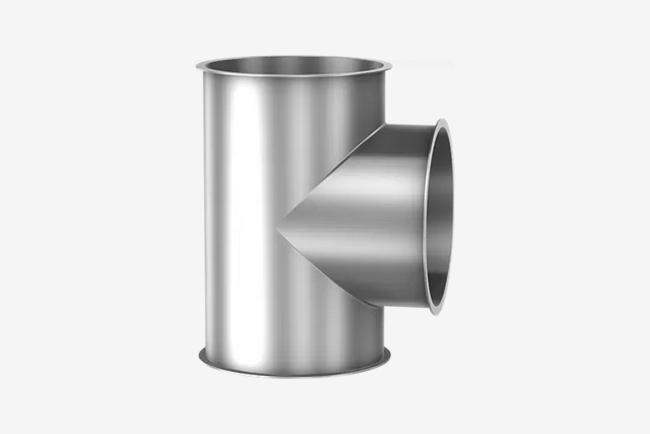

Branch pieces: branch pieces turn a straightforward pipe into a complex pipework system. They are therefore key elements during planning and implementation. To meet the particular requirements of each system, JACOB offers a comprehensive and wide-ranging standard range which covers most requirements. If this does not meet your particular needs, we also manufacture individual parts to customers’ specification. This is possible due to up-to-the-minute technologies, such as fully-automated laser welding equipment, which can carry out precise customised and small-scale production as well as on an industrial scale. We can therefore manufacture your own individual branch piece – from a wide range of special colours as well as with different flanges, special lengths and individual angles.

Branch pieces: branch pieces turn a straightforward pipe into a complex pipework system. They are therefore key elements during planning and implementation. To meet the particular requirements of each system, JACOB offers a comprehensive and wide-ranging standard range which covers most requirements. If this does not meet your particular needs, we also manufacture individual parts to customers’ specification. This is possible due to up-to-the-minute technologies, such as fully-automated laser welding equipment, which can carry out precise customised and small-scale production as well as on an industrial scale. We can therefore manufacture your own individual branch piece – from a wide range of special colours as well as with different flanges, special lengths and individual angles.

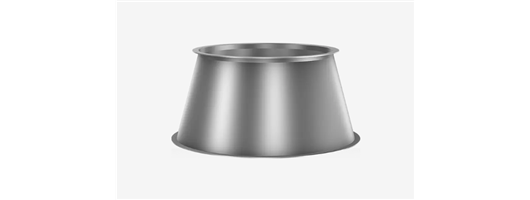

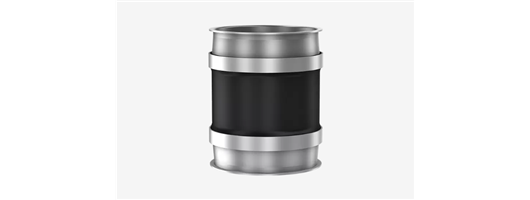

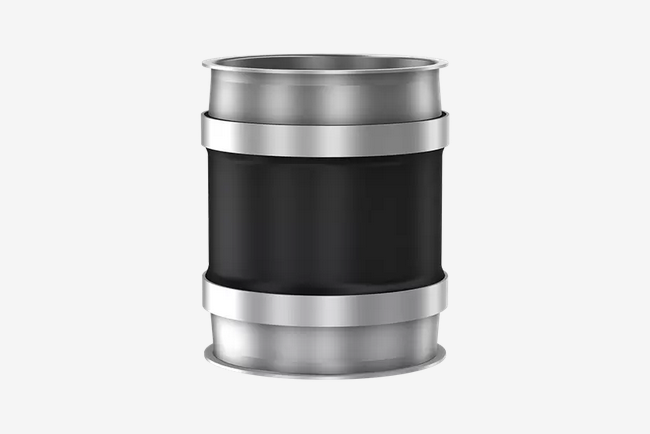

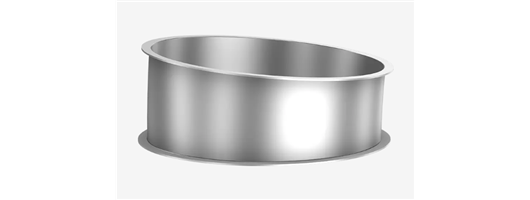

JACOB transition pieces and adapters: How to be well-connected: With our comprehensive range of cone pieces, transition pieces and adapters, we create the connection between your JACOB pipework system and your machinery. And since nothing is as individual as these transition pieces, we can manufacture them to your specification right from batch sizes of 1. These special components have one thing in common with all lines from this large-scale production: the same consistently high quality.

JACOB transition pieces and adapters: How to be well-connected: With our comprehensive range of cone pieces, transition pieces and adapters, we create the connection between your JACOB pipework system and your machinery. And since nothing is as individual as these transition pieces, we can manufacture them to your specification right from batch sizes of 1. These special components have one thing in common with all lines from this large-scale production: the same consistently high quality.

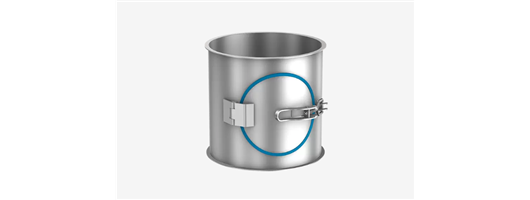

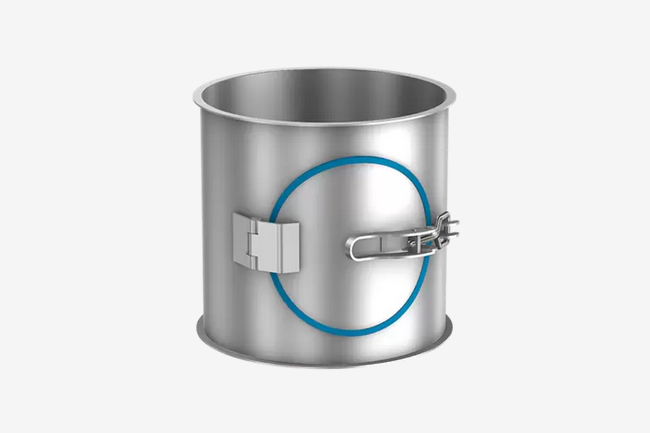

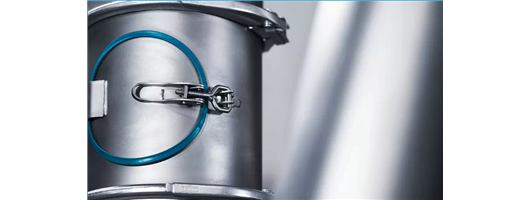

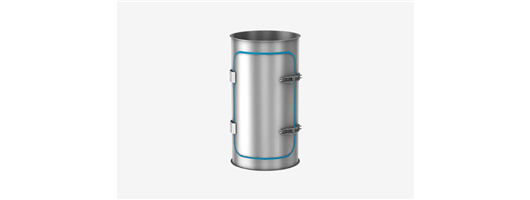

Inspection pipe components: Control is better: Inspection pipe components allow you to keep an eye on the inside of your JACOB pipework system too. Special pipe components provide unhindered access and let you carry out inspections, maintenance and cleaning without having to dismantle the complete surrounding area. Like all other pipework elements, the inspection pipe components are manufactured to the same high JACOB standard of quality.

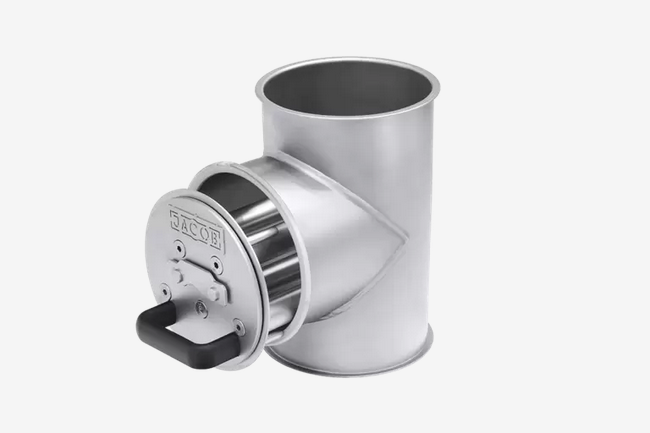

The JACOB magnetic separator removes metallic components from free-flowing bulk materials and exhaust air. Due to its strong magnets, all ferrous contaminants are collected at the magnetic separator. By pulling out the separator and then removing the magnets, the metallic contaminants can be easily removed from the system. This protects downstream machinery from the particles, for example in plant engineering.

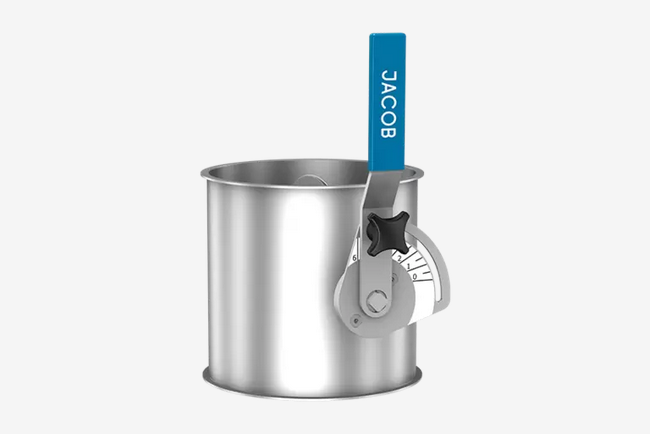

Throttle valves: JACOB throttle valves and regulators precisely control the air flow and product transport and can be flexibly incorporated in our pull-ring system thanks to their lipped ends. We have a wide portfolio of standard products – from manually adjustable throttle valves and pneumatic rotary actuators to electrically operated adjustable actuator. Other actuators and larger diameters are available on request. We reserve the right to alter design specifications.

Throttle valves: JACOB throttle valves and regulators precisely control the air flow and product transport and can be flexibly incorporated in our pull-ring system thanks to their lipped ends. We have a wide portfolio of standard products – from manually adjustable throttle valves and pneumatic rotary actuators to electrically operated adjustable actuator. Other actuators and larger diameters are available on request. We reserve the right to alter design specifications.

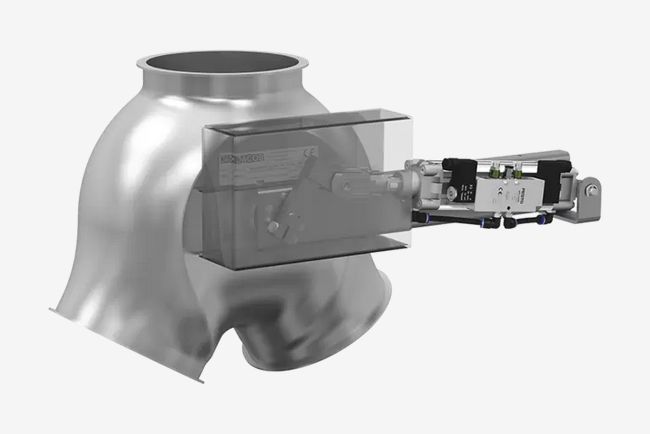

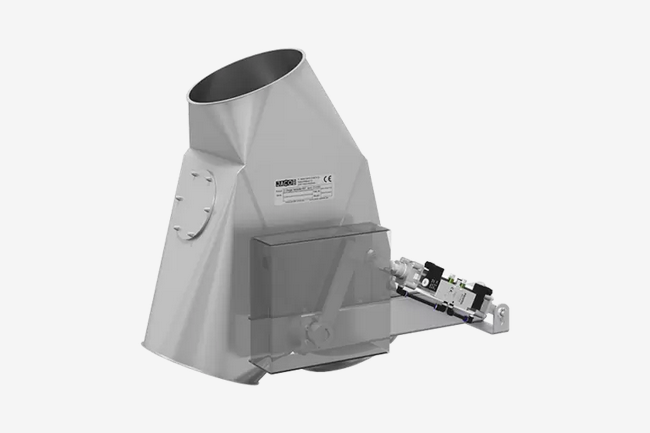

JACOB two-way diverters: JACOB has various types of two-way diverters available to meet your requirements: From bulk goods conveying by gravity to pneumatic low pressure conveying, JACOB has just the right solution in its portfolio for distributing your product.

JACOB two-way diverters: JACOB has various types of two-way diverters available to meet your requirements: From bulk goods conveying by gravity to pneumatic low pressure conveying, JACOB has just the right solution in its portfolio for distributing your product.

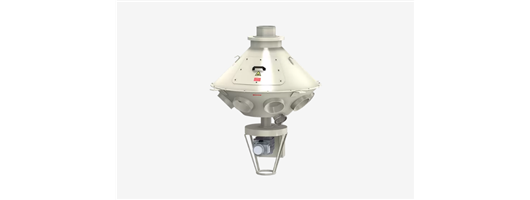

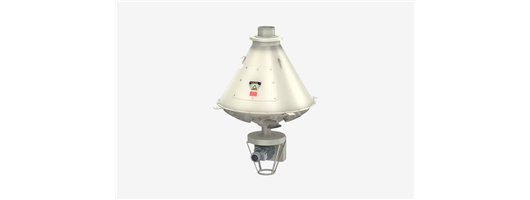

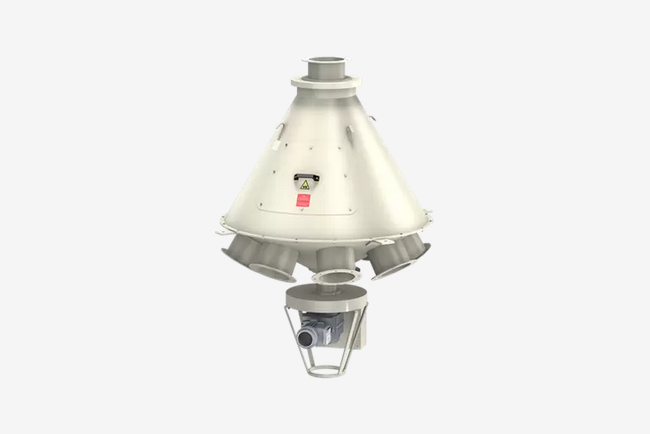

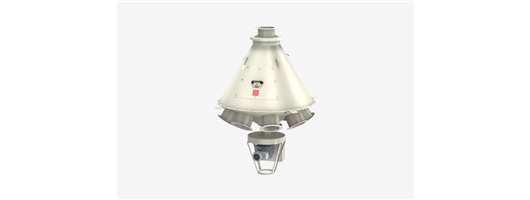

Multi-way distributors: JACOB multi way distributors are the compact solution for conveying bulk  goods to many different machines or silos in the course of the production process. JACOB has a range of multi-way distributors with up to 2 x 20 outlets available in its standard portfolio in order to meet a variety of requirements.

Multi-way distributors: JACOB multi way distributors are the compact solution for conveying bulk  goods to many different machines or silos in the course of the production process. JACOB has a range of multi-way distributors with up to 2 x 20 outlets available in its standard portfolio in order to meet a variety of requirements.

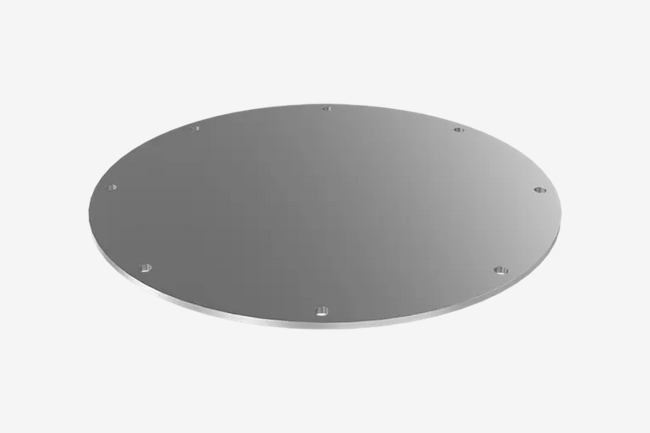

For large diameters: Flanges

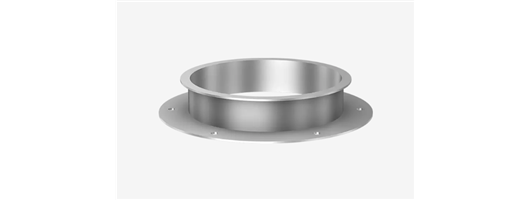

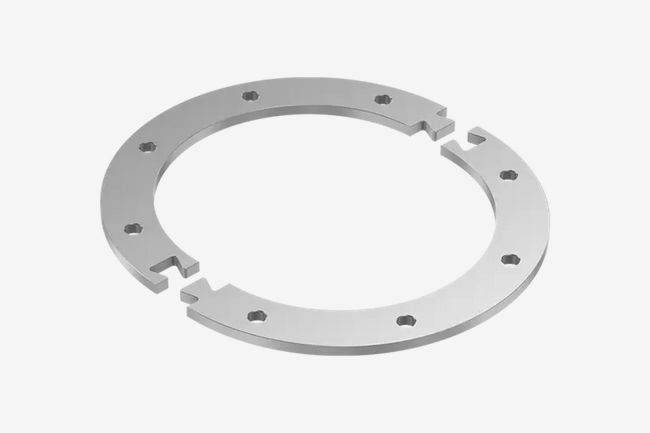

 The whole world of JACOB diversity is also available with a flange connection. Larger diameters with a high level of tightness are available in particular for large ventilation systems extracting dust, oil mist or other condensates. JACOB’s range of flanges provides the ideal solution for this purpose.

For large diameters: Flanges
 The whole world of JACOB diversity is also available with a flange connection. Larger diameters with a high level of tightness are available in particular for large ventilation systems extracting dust, oil mist or other condensates. JACOB’s range of flanges provides the ideal solution for this purpose.

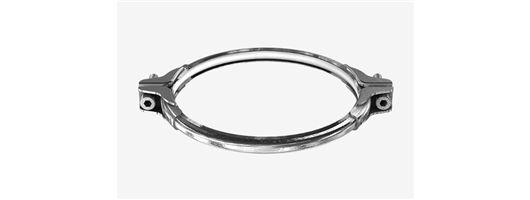

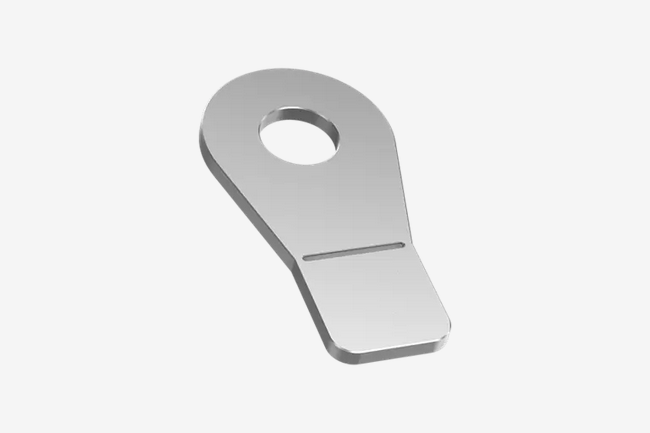

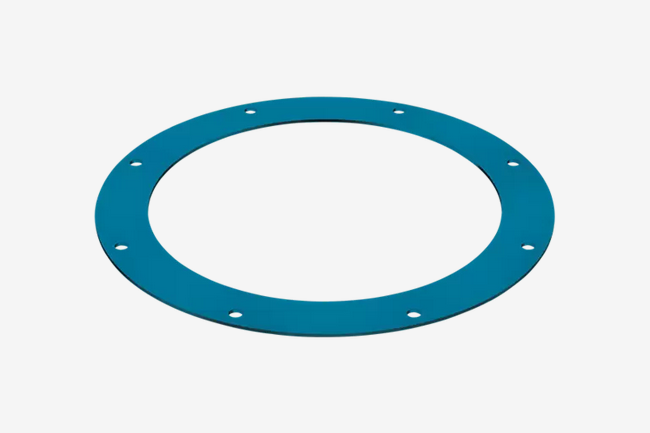

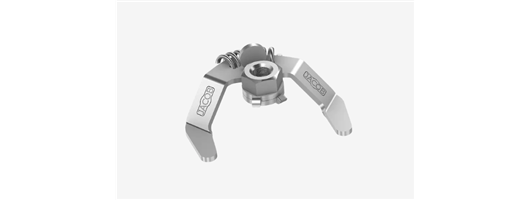

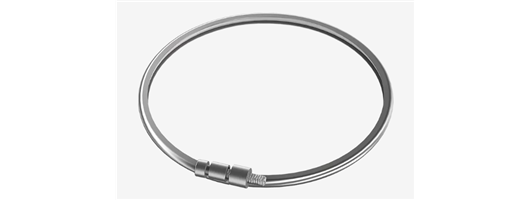

JACOB Accessoires: Your pipework system entirely from one source and easily installed with our accessories, from the flanging tools for cutting exact lengths on site right up to pipe clamps.

JACOB Accessoires: Your pipework system entirely from one source and easily installed with our accessories, from the flanging tools for cutting exact lengths on site right up to pipe clamps.

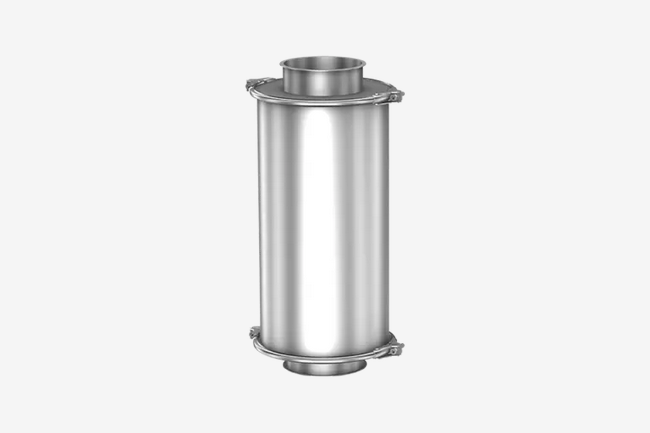

In pipework systems, noticeable noise cannot be avoided. To get your production systems to whisper, we offer silencers with JACOB-compatible elements in our standard range. Silencers are available in lengths of 500, 1000 and 1500 mm and in diameters of 80 to 630 mm. They are made in a variety of materials with a wall thickness of 2 mm. The ends are lipped and are alternately available with a loose flange connection from a diameter of 350 mm. The sound-absorbing material applied on the inside consists of non-inflammable mineral wool with a non-woven glass covering. As a component of the JACOB modular pipework system, the silencers are easy to disassemble and assemble for cleaning or to replace the mineral wool.

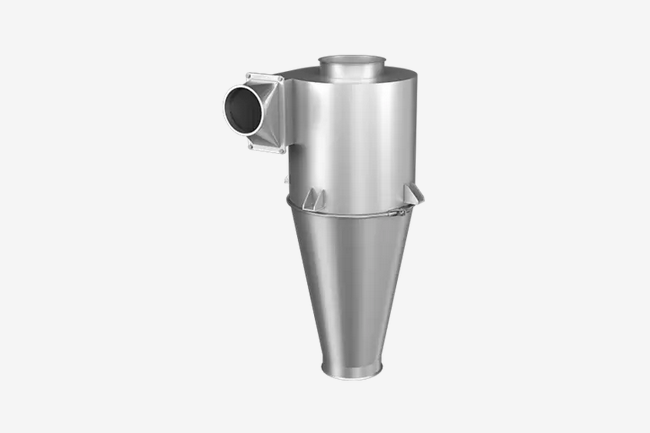

Utilising centrifugal force, cyclones within a pipework system ensure that solid particles are separated out. Cyclones are often used in industry to recover raw materials from the production process or generally to remove solid particles before recirculating the air. The range of applications is therefore accordingly wide. Our cyclones are used in the timber, plastics and tobacco industries, for example. Our standard cyclones are available in diameters ranging from 250 to 1000 mm with lipped connections, and with diameters from 1120 to 2300 mm with welded-on flanges. For diameters up to 1250 mm, the material thickness can be 2 or 3 mm, and larger diameters are manufactured with a material thickness of 3 mm. Cyclones are available in powder-coated, galvanised or stainless steel versions. Please note that cyclones are passive components. The way they work depends on the volumetric flow, the pressure loss and the material load and particle size.

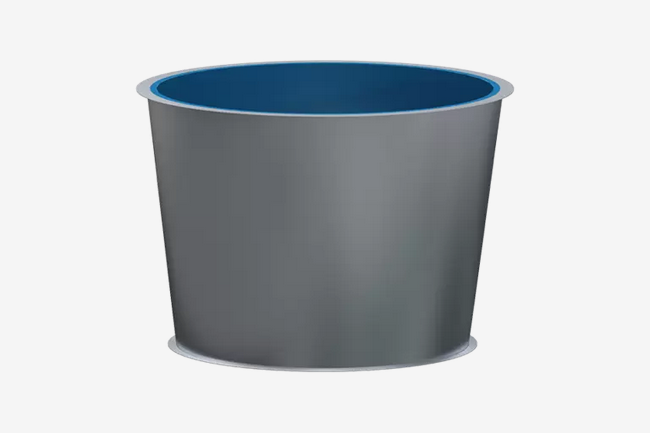

A broad spectrum of applications in industry and agriculture causes high wear in pipework systems. In view of this, we have developed the new modular wear protection range: DURABLE DESIGN.

The wear protection is glued or bolted in the standard range and consists of a polyurethane base. The materials differ in their various properties. The products are combined with our modular pipework system. In the standard range,we offer diameters DN 150 mm to 350mm with bolted wear protection and diameters DN 100mm to 350mm with glued wear protection. Larger diameters than 350 are generally available on request. Polyurethane offers the advantage that it has a flexible and yet wear-resistant structure. As a result, the impact energy due to deflections is absorbed in particular and thereby extends the lifetime.
