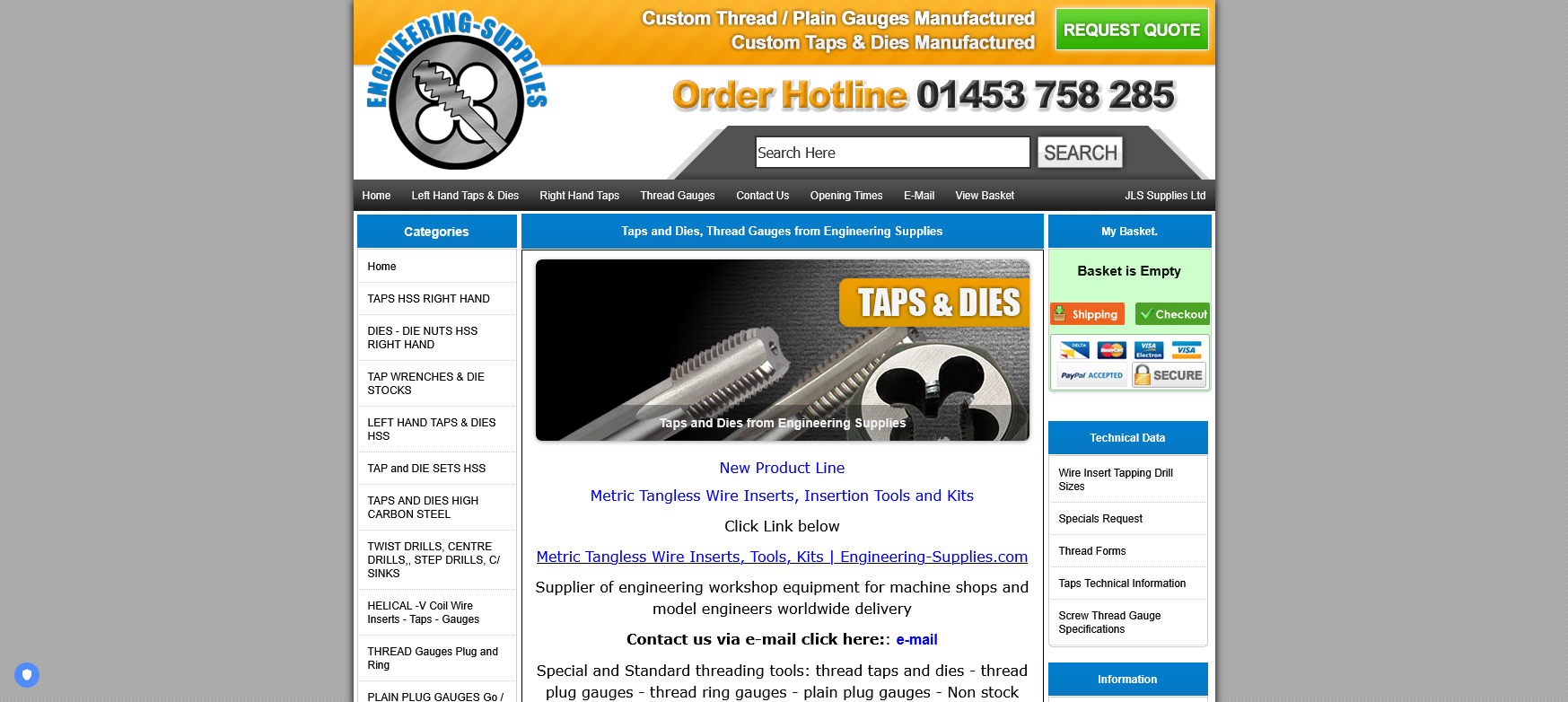

Company details for:

JLS Supplies Ltd

Submit press release

(0)

0145...

Matlock Crescent,
Luton,
Bedfordshire,
LU4 0BP,
United Kingdom

Quick Links:

Products / Services

TAPS HSS RIGHT HAND

HSS threading Taps Threading tap is used to cut the female part of the thread for example on a nut using a tap wrench. Custom taps can be manufactured to your specification contact us for quotation. NOTE: Tapping drill size for metric threads only subtract the pitch from the diameter

DIES - DIE NUTS HSS RIGHT HAND

HSS threading Dies and Die Nut Threading die is used to cut the male part of the thread for example on a bolt using a die wrench. A Die Nut is hexagonal and is usually used for cleaning or repairing a damaged thread. Custom dies can be manufactured to your specification contact us for quotation.

TAP WRENCHES & DIE STOCKS

A tap wrench is a hand tool used to turn taps or other small tools

LEFT HAND TAPS & DIES HSS

HSS Left Hand threading Taps and Dies to produce a reverse thread Threading left hand taps are used to cut a reverse thread the female thread for example in a nut and a threading die is used to cut the male thread for example on a bolt. Custom taps and dies can be manufactured to your specification contact us for quotation.

TAP & DIE SETS HSS

HSS threading Tap and Die Boxed Sets Contain a selection of popular used tap and die sizes and include the associated tap and die holders.
Threading Tap is used to cut the female part of the thread for example in a nut using a tap wrench. Threading die is used to cut the male part of the thread for example on a bolt using a die wrench.

TAPS & DIES HIGH CARBON STEEL

Taps & Dies manufactured in the UK from high quality Carbon Steel
Use for soft Materials or cleaning existing threads
High Speed steel is available

TWIST DRILLS, CENTRE DRILLS, STEP DRILLS, C/SINKS

Twist drills are cutting tools used to create cylindrical holes.

The shank is the part of the drill bit grasped by the drill chuck

Drill bits come in standard sizes, a comprehensive range is available along side tapping size drills. Drills also are available in boxed sets

HELICAL -V Coil Wire Inserts - Taps - Gauges

Helical insert is made of coiled wire. Another common name is screw thread insert (STI), many users call them all by the brand name and trademark Heli-coil. The insert is inserted into a tapped hole larger than the required finished size of thread.

Used for repairing damaged threads or to give weaker materials greater threaded strength. Our stock coils are manufactured from 304 Stainless Steel Insert withstand temperatures ranging from -160C to +420C with standing surges up to 500C.

THREAD Screw Plug, Ring, Caliper GAUGES

UKAS at this time 10 working days Range of go / nogo internal and external thread and plain gauges available from stock. Unlisted special gauges manufactured to order, contact us for quotation Go and NoGo plug and ring gauges are used as a quality check for the inspection of plain or threaded mating components

PLAIN PLUG GAUGES Go / No-Go

Plain plug gauges manufactured to order (normally 5 / 7 days) to the relevant sizes required are used for checking the size of a machined hole. They are used as an acceptance gauge with a go (pass) nogo (failed oversize) end.
A plain plug gauge does not return a size, but instead returns a state. The state is either acceptable (the part is within tolerance) or it is unacceptable (and would be rejected).

PLAIN RING GAUGES

Plain ring gauges manufactured to order (normally 5 / 7 days) to the relevant sizes required are used for checking the size of a machined shaft or setting bore measuring equipment. They are used as an acceptance gauge with a go (pass) nogo (failed oversize) end.

A plain ring gauge does not return a size, but instead returns a state. The state is either acceptable (the part is within tolerance) or it is unacceptable (and would be rejected).

SLIP GAUGES & SETS

Individual gauge block is a metal block that has been precision ground / lapped to size. Gauge blocks come in sets of blocks with a range of lengths up to 1000mm in metric sizes . In use, the blocks are stacked to make the required length

VERNIER CALIPERS

Vernier, dial, and digital calipers give a direct reading of the distance measured with high accuracy. They are functionally identical, with different ways of reading the result. The calipers have a calibrated scale with a fixed jaw, and another moving jaw, that slides along the scale. The distance between the jaws is then read in different ways for the three types

COVENTRY DIEHEADS & CHASER SETS

Coventry Dieheads for use on Turret lathes, CNC and automatic screw machines. The system is noted for its ease of use, and for the accuracy of cut over a wide range of thread types. Automatic self-opening at the completion of each cut makes Coventry ideal for batch or production work.

Coventry chasers are designed so that cutting takes place at the first full tooth. The remaining teeth are above center height, so they act as a nut, ensuring accurate pitch.

AXIAL THREAD ROLLING

Thread rolling forms external threads. Threads are formed into a blank by pressing a shaped die against the work piece.. Normally used for large production runs because typical piece rates are around one piece per second. Rolling produce no swarf hence less material is required The diameter starts smaller than required for actually cutting the threads Around 15 to 20% material savings can be achieved

About us

JLS Supplies Ltd provides engineering tooling, such as gauges and threading tools, to machine shops, model engineers, and on-site professionals worldwide. We maintain a large inventory for immediate dispatch, and we can create custom thread gauges, taps, and dies tailored to your specifications.

We provide items encompassing standard tooling, and we also deliver stock products that are regarded as specialised by certain individuals.

Popular Products Include:

Go / No-Go Thread Plug Gauges
Threading Taps & Dies
Thread Repair Tooling Helical / V Coil
Slip Gauge Sets

Taps & Dies

Taps and dies serve as cutting tools employed to create screw threads on mating components, a process known as threading. A threading tap is utilised to cut the female thread, found, for instance, in a nut, while a threading die is employed to cut the male thread, as seen in a bolt. The creation of threads using a tap is referred to as tapping, and when a die is used, the process is termed threading. Both tools are versatile, capable of generating new threads or restoring damaged ones. Dies are typically employed manually in a die stock but can also be used with machines like a centre lathe. Taps are available in both hand tap and machine tap variations.

Thread Plug Gauges

Go/No-Go plug and ring gauges serve as a quality assessment tool for examining plain or threaded mating components. These gauges are employed to verify machined components against specified drawing tolerances, ensuring interchangeability and the performance of manufactured parts. The Go/No-Go gauge operates as a tool that doesn't provide a size but rather indicates a condition, classifying the part as either acceptable within its specified tolerance or unacceptable, leading to rejection.

… And more.

We serve prominent engineering firms in the Aerospace, Defence, Automotive, and Petrochemical sectors among our clientele.

We provide an extensive selection of products, including thread taps and dies, screw thread plug gauges, screw ring thread gauges, thread caliper gauges, thread repair kits, and slip gauge sets.

Our assortment comprises Metric Coarse and Fine, UNC, UNF, UNS, BSF, BSW, BA, and BSP, along with Taper Gauges like NPT, NPTF, and BSPT. A significant number of these gauges are readily accessible in our inventory. Additionally, we can produce custom gauges upon request.

We are capable of producing custom plain plug and ring gauges as per your specifications.
