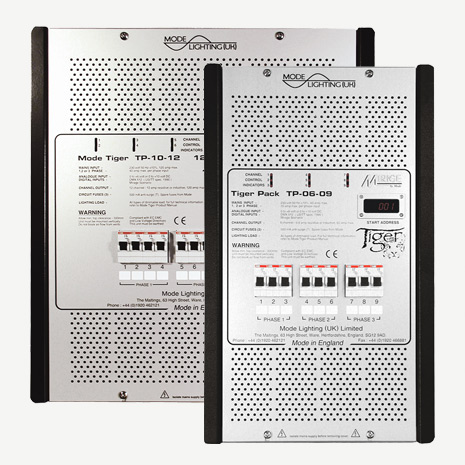

Tiger Systems comprise of high power units configurable for dimming and switching operation, which are controlled using simple push button control plates. Tiger Units can be linked together to create systems of up to 99 circuits which can be controlled as 10 separate areas, including partitioning facilities for ballroooms and boardrooms.
Key features
• 12 x 10A Dimmable Power Unit.
• THREE PHASE or Single Phase Power Supply.
• Din Rail Mounted Wiring Terminals.
• Miniature Circuit Breaker Protection.
• LEADING Edge Dimming Control.
• Switching and 1-10V Dimming.
• Scene Setting Control.
• DMX512 and RS232 Digital Control
• Cool Operation Under Full Load.
• Alarm or Emergency Override.
• Analogue Control Inputs.
• Complies with EC EMC and Low Voltage Directives (CE).
• Mode products are guaranteed for two years.

Tiger Power Units offer simple scene setting lighting control in a standard, compact, quick to install, contractor friendly package which can be configured and programmed on site by the installer or end user without the need for specialist programming tools or training. Available in four different circuit and power configurations, units can be linked together creating flexible lighting controls for restaurants, bars, spas, boardrooms, theatres and offices.

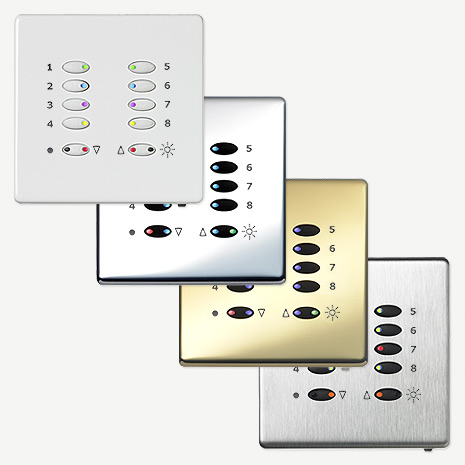

The Tiger Control Plates provides eight configurable buttons allowing scene recall, impulse and toggle and two multifunction buttons providing On & Raise and Off & Lower with integral IR receiver. All buttons have integral RGB LED’s.
Key features
• Single gang plate
• Screwless fascias plate utilising the MK Aspect range
• Buttons available in either black or white
• Multifunction buttons - scene recall, impulse and toggle
• Indicator LED’s with seven user selectable RGB colours and intensity. Red, Green, Blue, Magenta, Cyan, Orange and White.
• Integral IR Infrared receiver
• 1-4 Room Partition facility
• Two volt-free contact switch inputs - Individually addressable and configurable
• Keypad Lockout
• Fault condition feedback via LED flashing
• 2 year warranty

The lighting within an installation can be manually controlled by a multi-button Control Plate.

The indicator LED’s within the buttons are RGB and dimmable, therefore seven colours of selectable intensity are available. Where buttons have a multifunction i.e. Toggle On & Off, the LED colour can toggle, say Green & Red to provide current status.

The Control Plates are connected to an Area Controller via the M-BUS network cable. The M-BUS provides the means of SELV communication between the Area Controller to Lighting Controllers and Control Devices.

eDIN is a modular, “building-block” control system designed to bring simple yet sophisticated control to smaller applications. By selecting individual modules the right size of system can be created and assembled onsite by the systems integrator or installer.

Setsquare was established in 1981 with the intention of providing the market with technology-based conservation products, offering a range of highly innovative, high quality range of reliable products.
Key features
• Fully Automatic Lighting Controls
• Occupancy Sensors
• Daylight Sensors
• Passive Infrared Technology
• Microwave Technology
• Marshalling Boxes
• Pluggable Lighting Control Modules
• Hard Wired Lighting Control Modules
• Networked Lighting Controls
• DALI, DSI and 1-10V
• Washroom Controls

Setsquare was established in 1981 with the intention of providing the market with technology-based conservation products, offering a range of highly innovative, high quality range of reliable products.

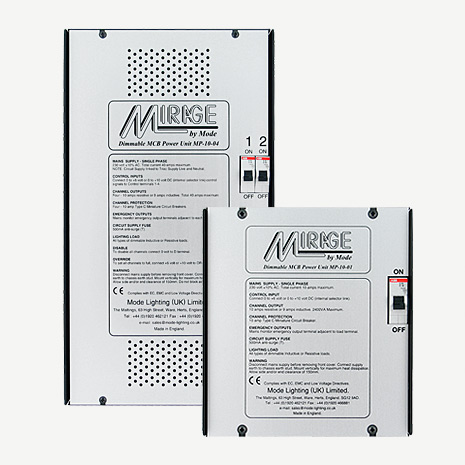

The Mirage Power Unit is available in single, four or eight channel models available in either 10 or 6 Amps per channel.
Key features
• Circuit protection 10 Amp Type C MCB.
• Emergency output fixed live MCB protected output for maintained emergency supply.
• LED channel monitor to indicate the operation of the output.
• Control input suitable for use with 0-6 Volt, 0-10Volt and 1-10 Volt Controllers.
• Supply input 230/240 volt, 50-60Hz, 40amp maximum. (100-125 Volt option available)
• Internal test switch to enable unit to betested to full on.
• Triac with screw fixings can be removed for servicing.
• External supply low voltage D.C. for use withremote dimmers and ancillary equipment.
• Conduit cable entries (four) 21mm diameter suitable for use with conduits and trunking.
• Complies with EC EMC and Low Voltage Directives (CE).
• Black aluminium case with silver anodised frontpanel.
• Mode products are guaranteed for two years.

The Mirage Power Unit is a wall mounting, single channel, Dimmable Power Unit designed for the reliable leading edge, mains dimming of resistive or inductive lighting loads. It is rated at 10 Amps (9 Amps inductive) and is protectedby a Type C Miniature Circuit Breaker (MCB). The control input could be either 0-6 Volt or 0-10 Volt from the Mode control systems or 1-10 Volt sinking control from Building Management Systems. The Mirage Power Unit is mounted in a black aluminum case with a natural anodised silver front panel. All Mode products are guaranteed for a two year period.
