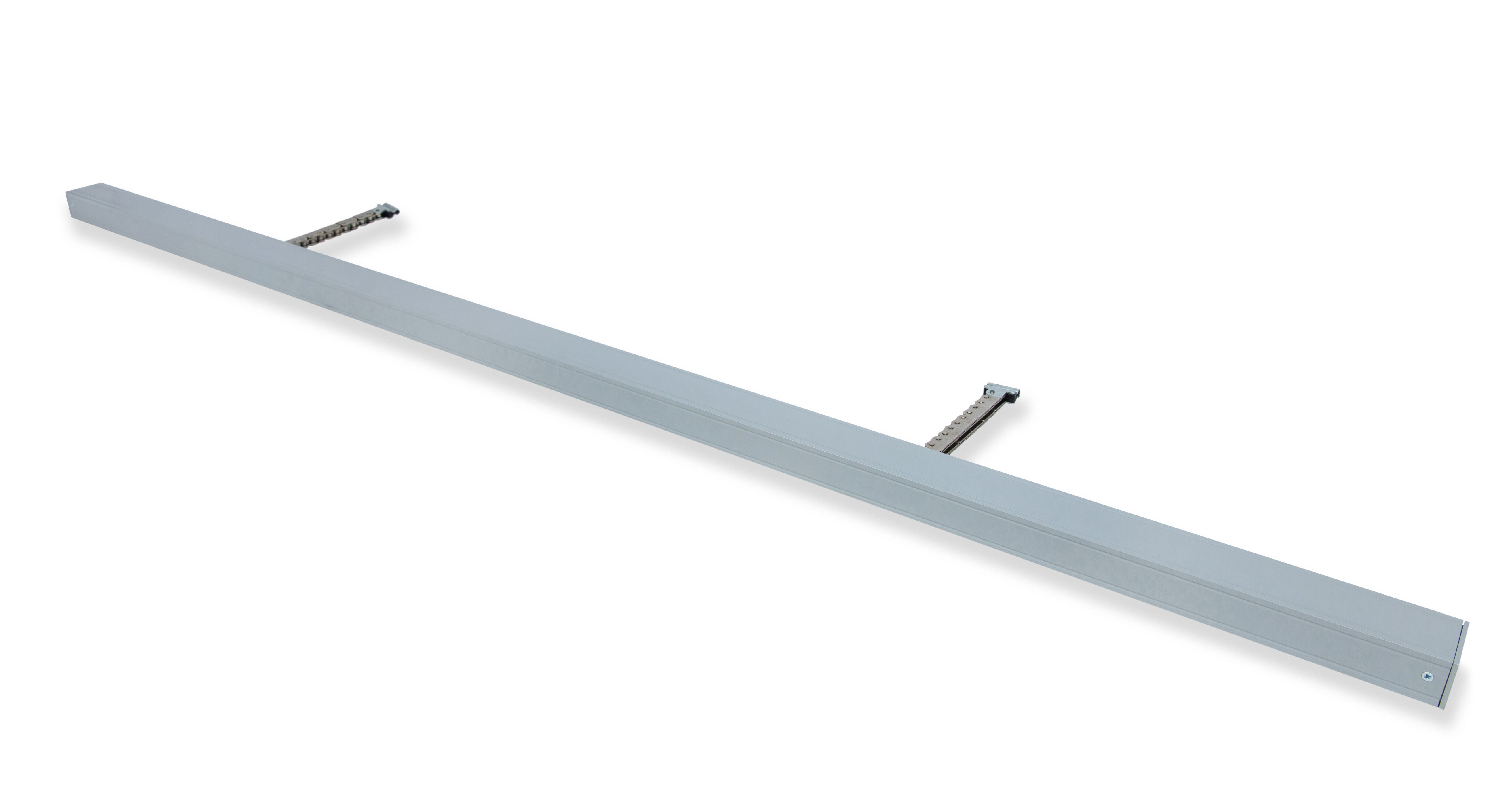

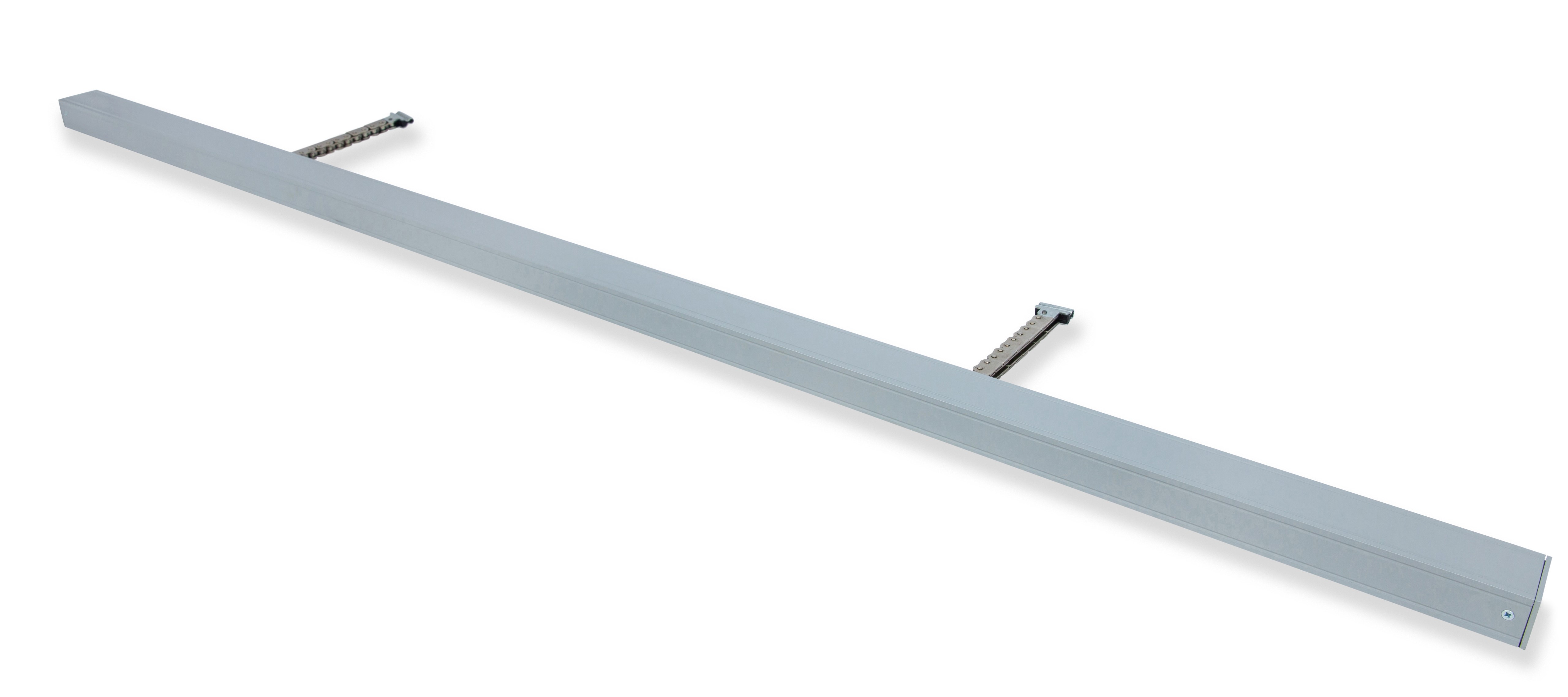

The Twin SECO Ni 24 40 is a compliant Chain Actuator designed to provide precise and reliable operation for Smoke and Environmental Ventilation applications.

SE Controls manufacture this high-quality ‘Made in Britain’ actuator with the following features:

 • Tested to EN12101-2: 2003. - check the combination of actuatorand profile is certified
• ‘Frequency of operation’ data logging records every actuator movement
• Compact design with variable options for stroke length
• Volt Free Contact version available for positional feedback
• Standard finish is RAL 9006 (White Aluminum) but it can be customised to suit installation requirements
• Standard flex length is 2 m but this can be modified to suit installation requirements
• Extensive range of brackets to suit a variety of window systems
• Quiet operation with configurable speed control
• 900 mm version is not suitable for Top Hung applications

The SECO Ni 40 230 V ac window actuator is a compliant chain actuator designed to provide precise and reliable operation for environmental ventilation applications.

SE Controls manufacture this high-quality ‘Made in Britain’ actuator with the following features:

• ‘Frequency of operation’ data logging records every actuator movement
• Compact design with variable options for stroke length
• Standard finish is RAL 9006, (White Aluminium), but may be customised to suit installation requirements
• Standard flex length is 2 m but this can be modified to suit installation requirements
• Extensive range of brackets to suit a variety of window systems
• Quiet operation with configurable speed control

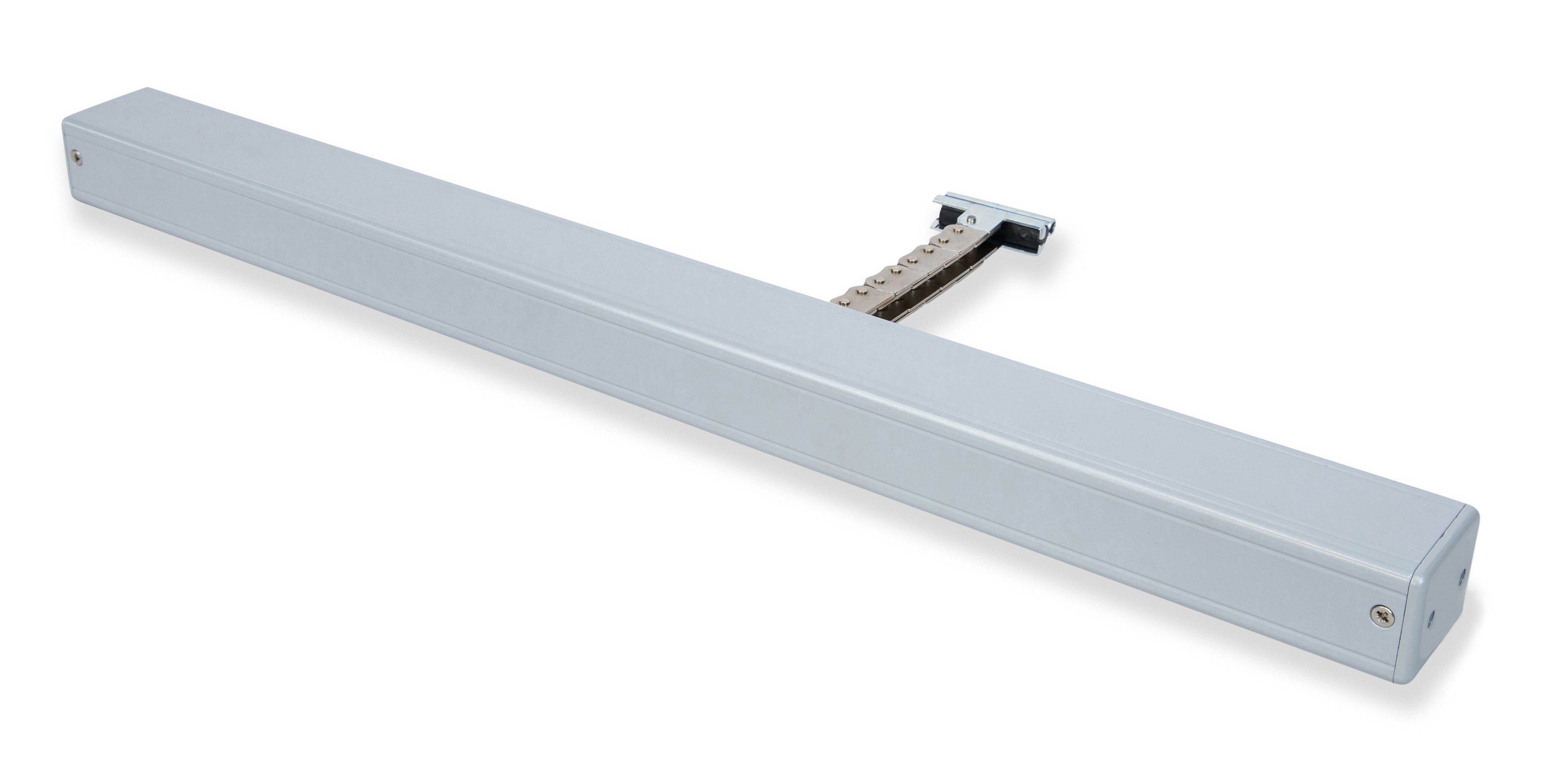

The SECO Ni 24 40 24 V dc window actuator is a compliant chain actuator designed to provide precise and reliable operation for smoke and environmental ventilation applications.

SE Controls manufacture this high-quality ‘Made in Britain’ actuator with the following features:

 • Tested to EN12101-2: 2003. - check the combination of actuatorand profile is certified
• ‘Frequency of operation’ data logging records every actuator movement
• Compact design with variable options for stroke length
• Volt Free Contact version available for positional feedback
• Standard finish is RAL 9006 (White Aluminum) but it can be customised to suit installation requirements
• Standard flex length is 2 m but this can be modified to suit installation requirements
• Extensive range of brackets to suit a variety of window systems
• Quiet operation with configurable speed control
• 900 mm version is not suitable for Top Hung window applications

The Twin SECO Ni 40 230V ac window actuator is a compliant chain actuator designed to provide precise and reliable operation for environmental ventilation applications.

SE Controls manufacture this high-quality ‘Made in Britain’ actuator with the following features:

• ‘Frequency of operation’ data logging records every actuator movement
• Compact design with variable options for stroke length
• Standard finish is RAL 9006, (White Aluminium), but may be customised to suit installation requirements
• Standard flex length is 2 m but this can be modified to suit installation requirements
 • Extensive range of brackets to suit a variety of window systems
• Quiet operation with configurable speed control

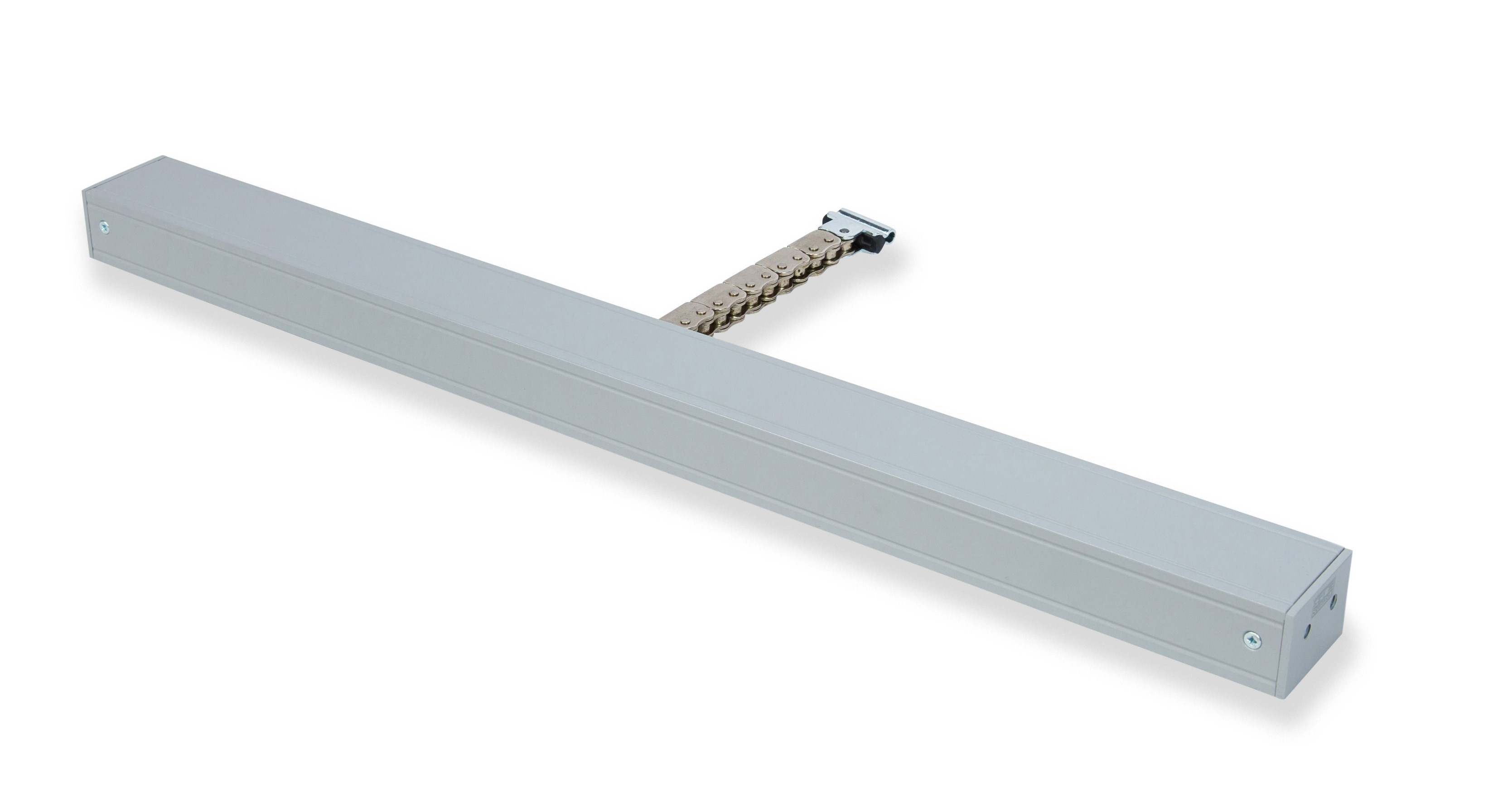

The SECO N 24 25 is a compliant Chain Actuator designed to provide precise and reliable operation for Environmental Ventilation applications.

SE Controls manufacture this high-quality ‘Made in Britain’ actuator with the following features:

• ‘Frequency of operation’ data logging records every actuator movement
• Compact design with variable options for stroke length
• Standard finish is RAL 9006 (White Aluminum) but it can be customised to suit installation requirements
• Standard flex length is 2 m but this can be modified to suit installation requirements
• Extensive range of brackets to suit a variety of window systems
• Quiet operation with configurable speed control

The Twin SECO N 24 25 is a compliant Chain Actuator designed to provide precise and reliable operation for Environmental Ventilation applications.

SE Controls manufacture this high-quality ‘Made in Britain’ actuator with the following features:

• Offers improved window performance and aesthetics for automated solutions
• ‘Frequency of operation’ data logging records every actuator movement
• Compact design with variable options for stroke length
• Standard finish is RAL 9006 (White Aluminum) but it can be customised to suit installation requirements
• Standard flex length is 2 m but this can be modified to suit installation requirements
• Standard range of pre selected quarter point bodies plus tailored lengths upon request.
• Extensive range of brackets to suit a variety of window systems
• Quiet operation with configurable speed control

The SECO N 25 is a compliant Chain Actuator designed to provide precise and reliable operation for Environmental Ventilation applications

SE Controls manufacture this high-quality ‘Made in Britain’ actuator with the following features:

• ‘Frequency of operation’ data logging records every actuator movement
• Compact design with variable options for stroke length
• Standard finish is RAL 9006, (White Aluminium) but may be customised to suit installation requirements
• Standard flex length is 2 m but this can be modified to suit  installation requirements
• Extensive range of brackets to suit a variety of window  systems
• Quiet operation with configurable speed control

High quality and slim design linear drive actuator mainly used for sloping smoke ventilator applications and rooflights.

• Low power draw reduces control panel size and cost.
• Large opening strokes available.
• Tandem version available.

Fully tested to EN12101-2.

The Twin SECO N 25 is a compliant Chain Actuator designed to provide precise and reliable operation for Environmental Ventilation applications.

SE Controls manufacture this high-quality ‘Made in Britain’ actuator with the following features:

• ‘Frequency of operation’ data logging records every actuator movement
• Compact design with variable options for stroke length
• Standard finish is RAL 9006, (White Aluminium) but this may be customised to suit installation requirements
• Standard flex length is 2 m but this can be modified to suit installation requirements
• Extensive range of brackets to suit a variety of window systems
• Quiet operation with configurable speed control

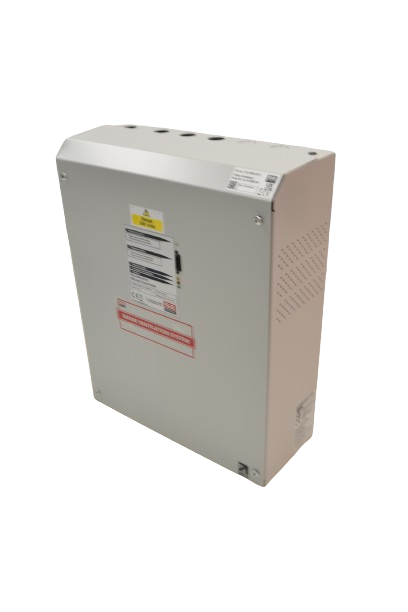

OSLoop is a modular smoke control system. It consists of a centralised coordination module (the coordinator) and between 1 and 16 remotely mounted manual control points (MCPs). Larger systems can be constructed by linking together multiple coordinators.

The coordinator controls power and data to the networked system fully monitoring primary (mains) and secondary (battery*) power supplies. The OSLoop system intelligently monitors current requirements of the system and determines how and when the MCPs can call on this power to activate AOVs.

Each MCP contains actuator switching circuitry which also monitors the actuator cabling and circuitry for faults. If a fault is detected, then the MCP raises a local alarm and also informs the coordinator so the remote alarms can be triggered. The MCP also provides support for up to three smoke detectors. Again this circuitry monitors the detectors and cabling checking for faults. In addition, the MCP may be configured to work independently or grouped in the same system.

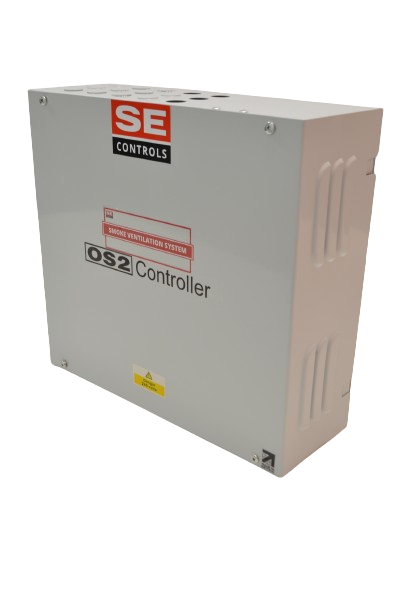

The OS2 SHEVTEC Controller is an intelligent 24 V dc control system designed to drive 2-wire 24 V dc actuators in a smoke control and/or environmental ventilation system.

Operating from a 230 V ac 5A supply, the OS2 SHEVTEC Controller can deliver up to 8A to drive 24 V motorised actuators and magnetic catches. Battery backup is provided for continued operation after mains supply interruption.

The OS2 SHEVTEC Controller can be mounted locally to the devices to be operated or in a centralised location. Each SHEVTEC Controller can operate independently or can be linked to others to produce a networked control system. The networked control system in turn can operate standalone or be linked to a building management system.

The NVLogiQ PSU is an adaptive Environmental Ventilation single-zone control panel and can be networked in multi-zone projects.

The NVLogiQ PSU can operate on a stand-alone basis operating on manual switches or can be connected to the BMS to operate the AOVs as required.

The NVLogiQ PSU can be installed into new and refurbished buildings where there is a focus on indoor air quality and energy saving.

The physical size and appearance has been purposely designed to enable surface mounting for new and refurbishment projects.

The MCP is designed to allow the Fire & Rescue Service to manually override the smoke control system through a user-friendly interface. Design includes an open button and a close/reset button, which are accessed by lifting the clear front door.

Fully complies to prEN12101 part 9.

System status, operation, fault finding and cable monitoring is all included within the features of the MCP (OSLoop version only) as required by the standard.

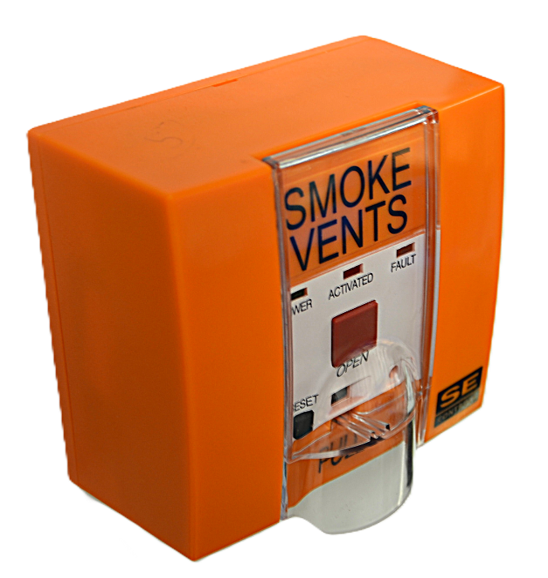

The Tamper Proof MCP is designed to eliminate nuisance activation of the smoke ventilation system whilst delivering the full functionality required of an MCP.

Fully complies to prEN12101 part 9.

The orange (RAL 2011) MCP displays system and vent status visibly through three LEDs, “power, fault and activated” as required by the standard.

Principle of detection:
Photo-electric detection of light scattered by smoke particles over a wide range of angles. The optical arrangement comprises an infra-red emitter with a prism and a photo-diode at 90° to the light beam with a wide field of view.

Flashing LED:
The integral LED flashes when the detector is in standby mode.

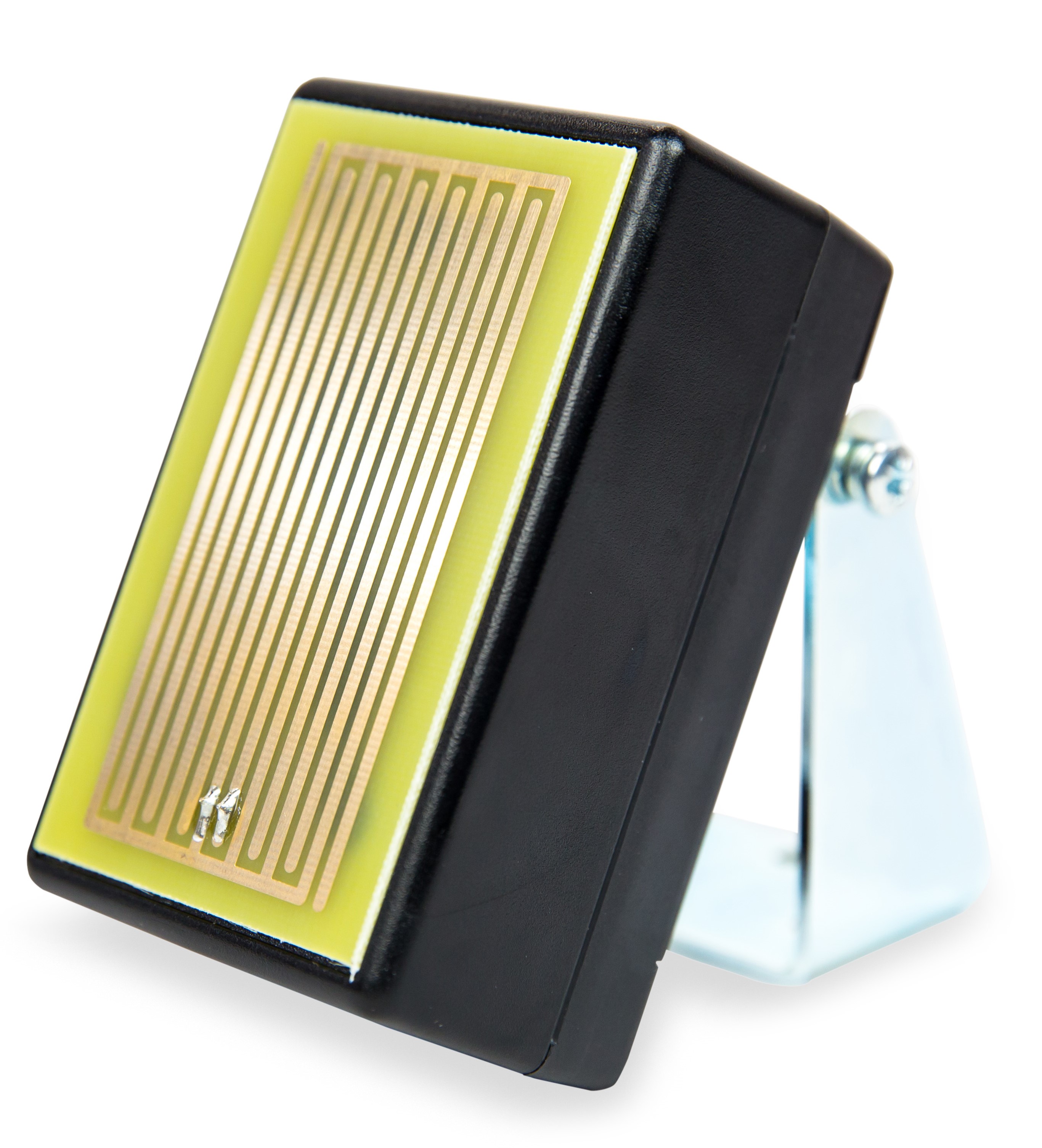

The stand-alone rain sensor automatically detects rain or snow fall and signals the ventilation control system to close open vents.

The sensor is built into a plastic weatherproof enclosure. The mounting bracket system has been designed such that the sensor can be mounted on to any suitable external façade of a building and adjusted for optimum rain detection.
